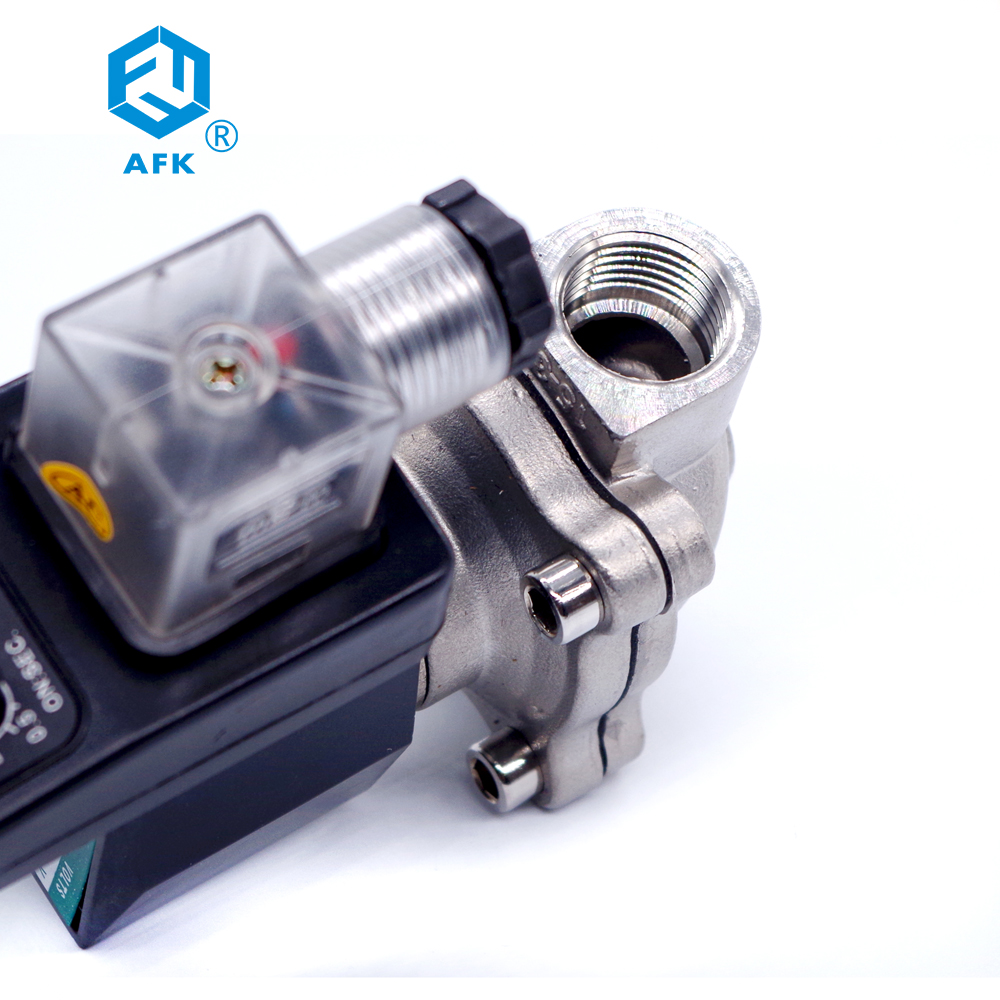

Normally Closed Direct Acting Stainless Steel Water 220v 110v 12v 24v Solenoid Valve With Timer

Short Description:

Model: 2W

Pipe Size: 3/8inch, 1/2inch, 3/4 inch, 1inch, 1-1/4inch, 1-1/2 inch, 2inch

Type: With timer

Thread: G, NPT

Medium: Air, water, oil, the neutral gas liquid

Function type: Normally Closed

Working Pressure: (water, air): 1~10kgf/cm2   (oil): 0~7kgf/cm2

Operating: Direct acting

Body material: Stainless steel 304

Seal: NBR (Medium temperature: -5-80 Degree Centigrade)

Voltage: AV220V/AC110V/DC24V

2-way normally closed solenoid valve, closed when de-energizes,open when energized.


Product Detail

Parameters

FAQ

Product Tags

Reliability
1. solenoid valve is divided into normally closed and normally open two, the general choice of normally closed type, power on, power off; single in the open time is very long when closed very short to choose normally open type
2. life experiment, the factory generally belongs to the type test project, to be exact, China has no professional standards for solenoid valves, so choose solenoid valve manufacturers carefully
3. action time is very short when the frequency is high, the general selection of direct-acting, large diameter selection of fast series.

24vdc water solenoid valves


  • Previous:
  • Next:

  • Pipe size

    3/8″

    1/2″

    3/4″

    1″

    1-1/4″

    1-1/2″

    2″

    Orfice size

    16mm

    16mm

    20mm

    25mm

    32mm

    40mm

    50mm

    Cv value

    4.8

    4.8

    7.6

    12

    24

    29

    48

    Fluid
    Air, water, ol, the neutral gas,liquid
    Voltage
    AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
    Operating
    Pilot operating
    Type
    Normally closed
    Body material
    stainless teel 304
    viscosity
    (Below)20CST
    Working pressure
    Water, air;0-10bar                                        oil:0-7bar

    Material of seal

    Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON

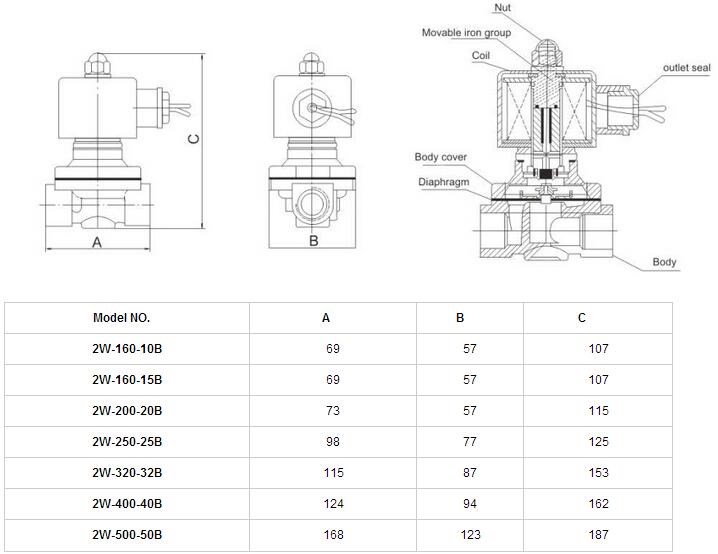

    HTB1kZAUPFXXXXXnXVXXq6xXFXXXi

    Q1: what kinds of stainless steel are most commonly used?

    A1.201 stainless steel is suitable for use in dry explosion environment. It is easy to rust in water

    A2.304 stainless steel, outdoor or humid environment, strong corrosion resistance and acid resistance.

    A3.316 stainless steel, molybdenum added, more corrosion resistance and pitting corrosion resistance, especially suitable for seawater and chemical media.

    Q2. how can we guarantee quality?

    A1: Strictly in accordance with the ISO9001 standard, the products have passed the A2.CE/ROHS/EN certification

    Always a pre-production sample before mass production;Always final Inspection before shipment;

    Q3.what can you buy from us?

    A.pressure regulator,pressure gauges, Tube fittings,solenoid valve,Needle valve,check valve ect.

    Q4.What’s the MOQ?

    A: , All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter.

    Q5. what services can we provide?

    A1.Accepted Delivery Terms: FOB,CIF,EXW;

    A2.Accepted Payment Currency:USD,CNY;

    A3.Accepted Payment Type: T/T,L/C,Western Union;

    A4.Language Spoken:English,Chinese
