AFK stainless steel 1/8in 1/4in 3/8in 1/2in female branch tees npt thread tube fitting

Short Description:

characteristic
All joints have a high quality appearance
Each connector is marked with the manufacturer’s name to facilitate tracking its source
Threads are protected by caps


Product Detail

Parameters

FAQ

Product Tags

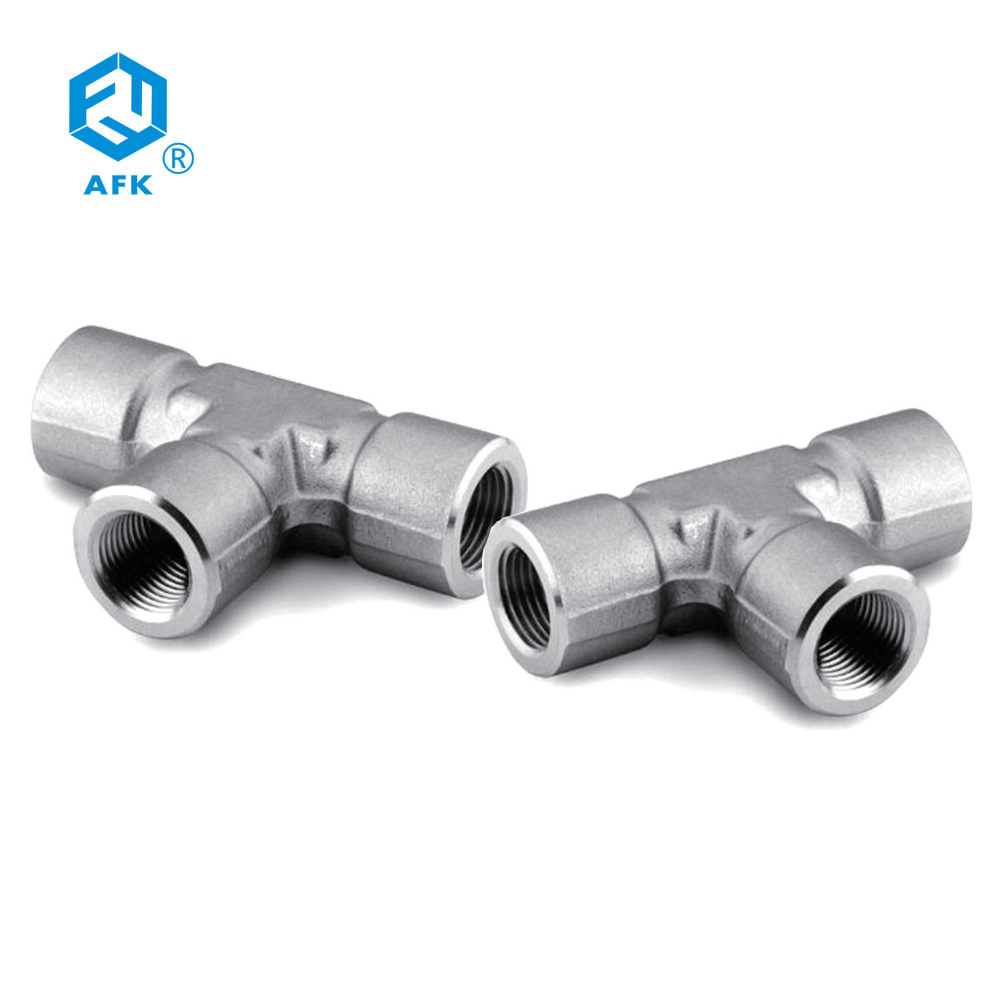

Product Description for 1/2 female branch tees npt thread tube fitting

fft

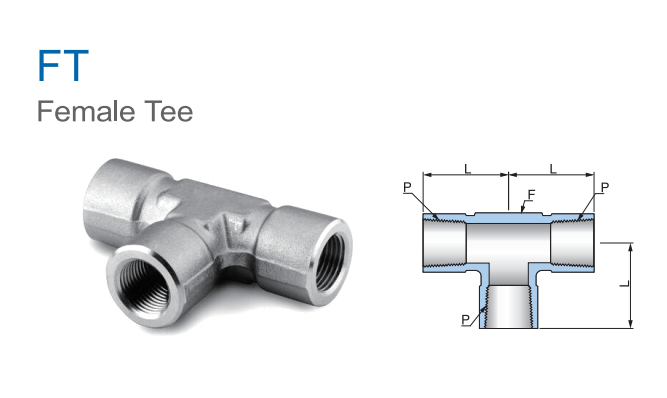

Specification for 1/2 female branch tees npt thread tube fitting

H42bf142753a34155b6b749834ef3e7205

  • Previous:
  • Next:

  • Female NPT to Female NPT for Stainless Steel Tube Fittings

    Part No

    P

    NPT

    Dimensions(mm)

    L

    F

    inch mm
    FT-02N 1/8 26.4 1/2 12.7
    FT-04N 1/4 29.7 11/16 17.46
    FT-06N 3/8 36.1 13/16 20.63
    FT-08N 1/2 39.6 1 25.4
    Material Standard for 1/2 female branch tees npt thread tube fitting
    Material Bar Forging
    316 Stainless Steel ASME SA479,ASTM A76 ASME SA 18,ASTM A18
    Brass ASME B16ASTM B453 ASTM B83
    Carbon Steel ASTM A108

    Electroplating and Coating
    In order to resist corrosion, all carbon steel joints are treated with electroplated zinc coating.

    Clean
    The components shall be cleaned to remove oil, grease and loose particles

    Pressure Rating Basis
    The rating is based on pressure pipe B31 at room temperature 3. Based on ASME Code of and process pipeline.

    Material  Allowable Stress Value
    316 stainless steel 20000 psi(1378 bar)
    Brass 10000 psi(689 bar)
    Carbon Steel 20000 psi(1378 bar)



    Temperature Rating
    The system temperature may be limited by thread sealant or, where appropriate, gasket or O-ring material.

    Material Maximum temperature ℃ (° F)
    316 stainless steel 537(1000)
    Brass 04(400)
    Carbon Steel 190(375)



    Gasket, O-ring Material
    Element Material Science Maximum temperature ℃ (° F) Minimum temperature ℃ (℉)
    RS Washer Nitrile rubber 110(30) -5(-13)
    Fluorocarbon FKM 204(400) -15(5)
    RG,RP Washer Copper 204(400) -198(-35)
    SAE,O-ring Fluorocarbon FKM 204(400) -8(-0)

    Q1. What products can you provide?

    Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.



    Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?

    Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.



    Q3. What about the quality and price?

    Re: Quality is very good. Price is not low but pretty reasonable at this quality level.



    Q4. Can you provide samples to test? For free?

    Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.



    Q5. Can you operate OEM orders?

    Re: Yes, OEM is supported though we also have our own brand named AFK.



    Q6. What payment methods for chose?

    Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.



    Q7. How about the lead time?

    Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.



    Q8. How will you ship the goods?

    Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
