AFK Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator
R41 Cylinder Regulator of Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator

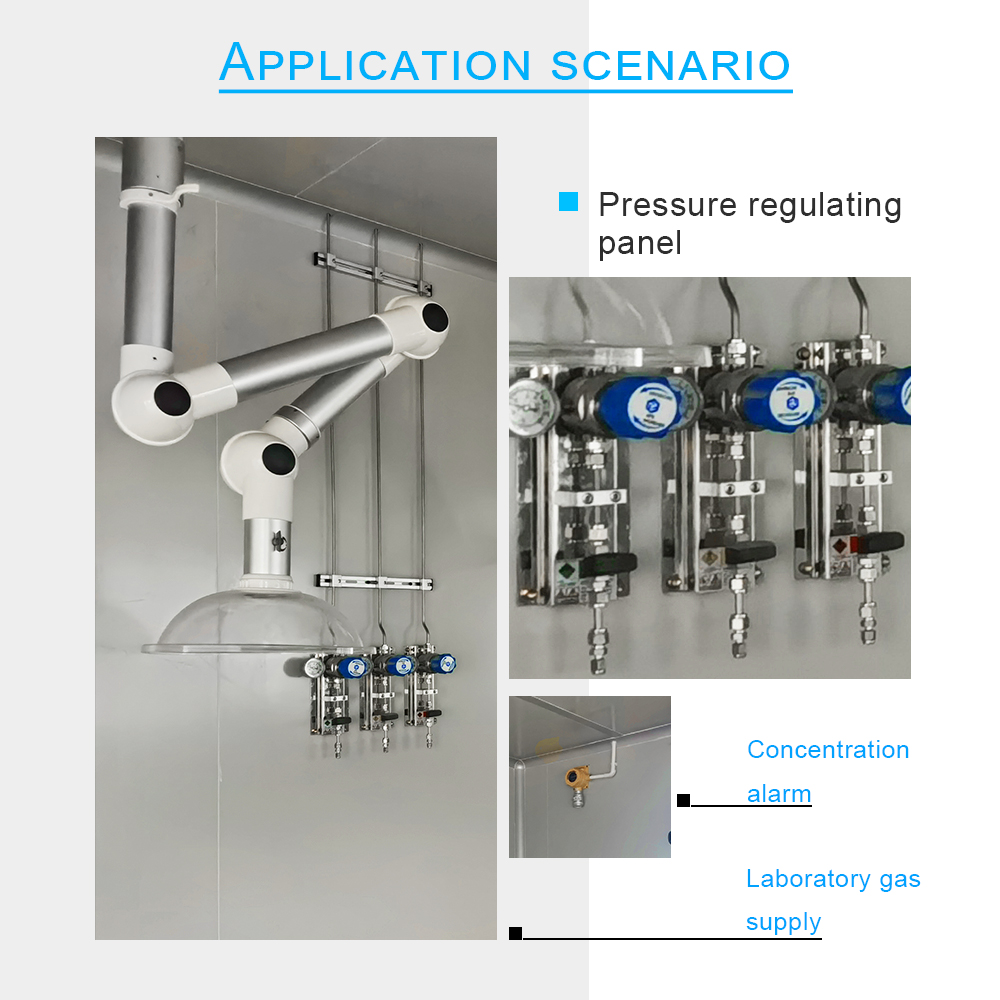

R41 Serie stainless steel pressure reducers, piston pressure reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.
Technical Parameter of Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator
|
Maximum Inlet Pressure
|
3000,6000psig
|
||||||||||||||||||||||||
|
Outlet Pressure Ranges
|
0~250, 0~500, 0~1500,0~3000psig
|
||||||||||||||||||||||||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||||||||||||||||||||||||
|
Operating Temperature
|
-40°F to +165°F / -40°c to 74°c
|
||||||||||||||||||||||||
|
Leak rate
|
foam test
|
||||||||||||||||||||||||
|
Cv value
|
0.06
|
||||||||||||||||||||||||
Material of Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator
|
1
|
Body
|
316L.Brass
|
|
|
2
|
Bonnet
|
316L. Brass
|
|
|
3
|
Diafragm
|
316L
|
|
|
4
|
Strainer
|
316L(10 μm)
|
|
|
5
|
Seat
|
PCTFE
|
|
|
6
|
Spring
|
316L
|
|
|
7
|
Plunger valve core
|
316L
|
|
|
8
|
o-ring
|
viton
|
|
Desing Features of Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator
| 1 | Single-stage reduce structure |
| 2 | Use hard-seal between body and Diaphragm |
| 3 | Body Thread:1/4″ NPT (F) |
| 4 | Filter mesh inside |
| 5 | Easy to sweep inside body |
| 6 | Panel mountable or wall mounted |
Product selection of Stainless Steel High Pressure Helium Gas Propane Cylinder Regulator
|

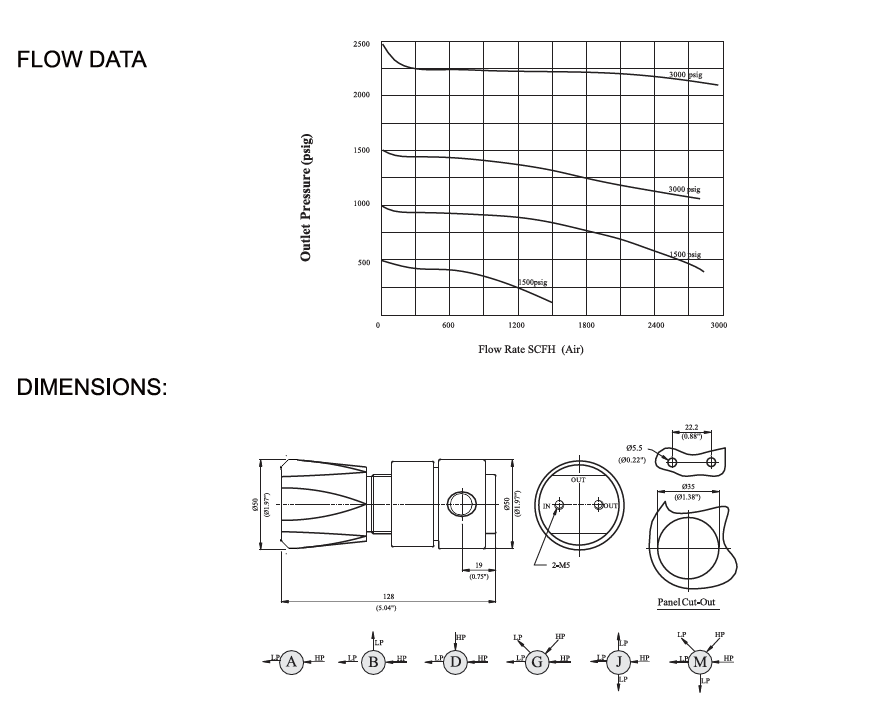

R41
|
L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |
