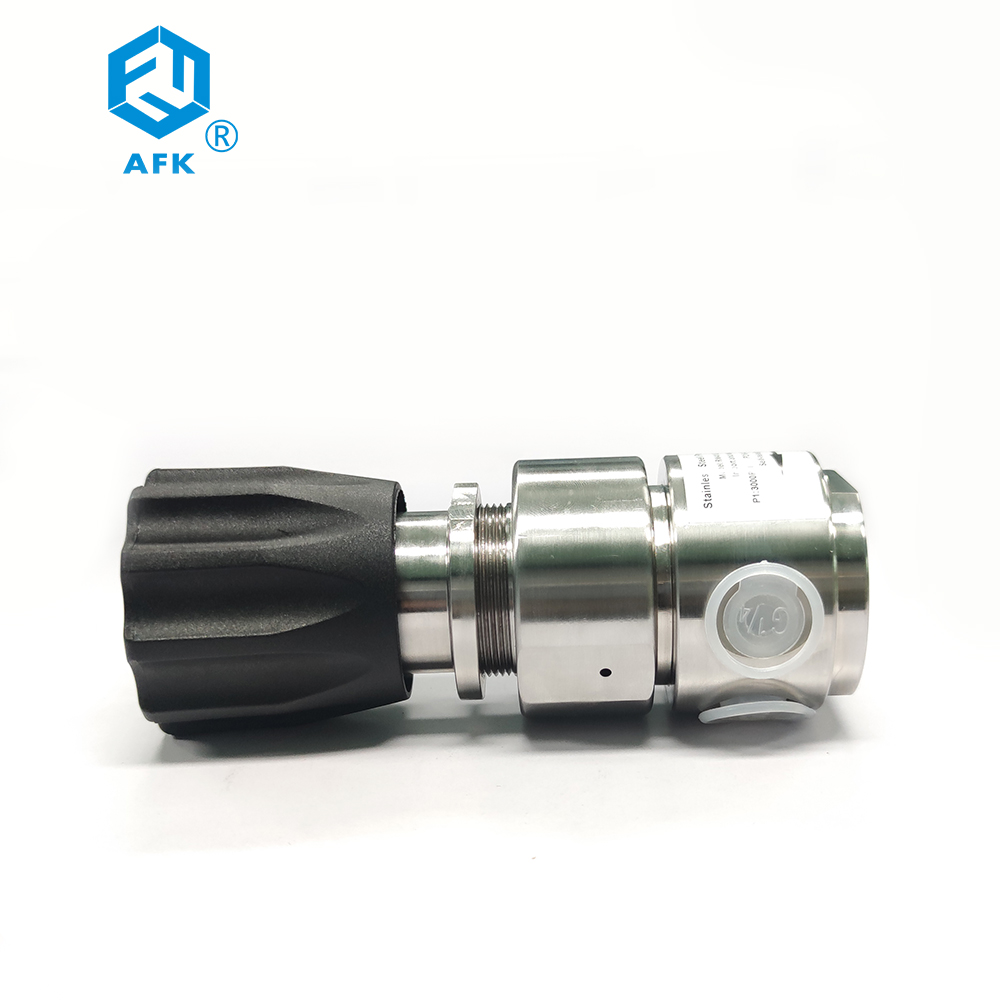

Relieving High Pressure SS316L 6000psi Panel Mouting Nitrogen Gas Pressure Regulator
Material:
| Body | 316L.Brass | |
| Bonnet | 316L. Brass | |
| Diafragm | 316L | |
| Strainer | 316L(10 μm) | |
| Seat | PCTFE | |
| Spring | 316L | |
| Plunger valve core | 316L | |
| o-ring | viton | |
Design Feature:
Piston type pressure relief structure.
Body NPT:1/4”NPT(F)
Can set filters
Can use a panel or wall mounting
Typical Applications:
Labotary
Gas Chromatography
Gas laser
Gas bus-bar
petro-chemical industry
Test equipment
Ordering Information:
|
RW41 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
RW41 |
L:316 |
A |
B:6000 psi |
D:0-3000psig |
G:Mpa guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
P:Panel mounting |
| B:Brass |
B |
D:3000 psi |
E:0-1500psig |
P:Psig/Bar Guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
||
| D |
F:0-500psig |
W:No guage |
10:1/8″ OD |
10:1/8″ OD |
||||
| G |
G:0-250psig |
1:1/4″ OD |
11:1/4″ OD |
|||||
| J |
12:3/8″ OD |
12:3/8″ OD | ||||||
| M |
15:6mm OD |
15:6mm OD | ||||||
| 16:8mm OD | 16:8mm OD | |||||||
| Other type is available | Other type is available |

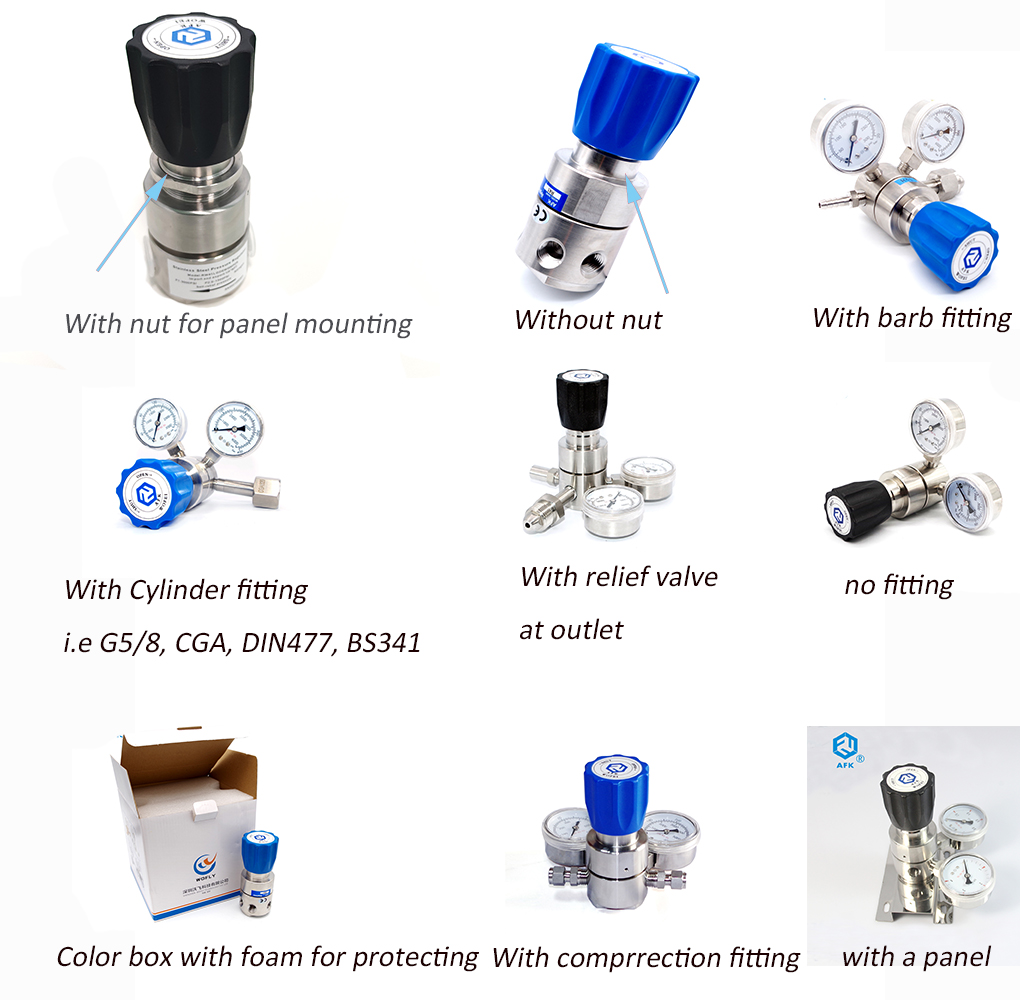

Details for Different Connections:
The electronics industry is a high-tech industry that promotes the development of science and technology today. Because of the many varieties of gases used and the high quality requirements, these gases used in the electronics industry are collectively called electronic special gases, which are high-tech industries with high technological content, high investment and high added value.
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
