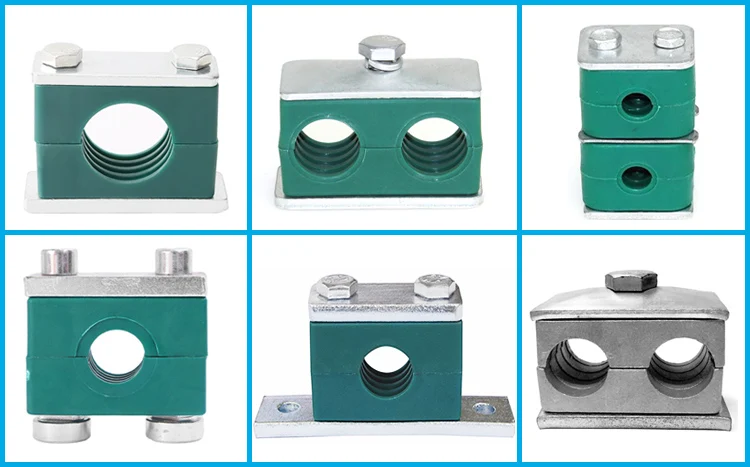

AFKLOK’s pipe clamp series complies with national standard JB/ZQ4008-97 and German standard DIN3015. With rich material options, clear parameters and wide adaptability, it has become an ideal choice for mechanical hydraulic systems in chemical engineering, electric power and other fields, providing stable fixing solutions for gas and Oil pipelines.
I. Diverse Material Choices, Covering Full-Scenario Needs
AFKLOK pipe clamps offer 8 core materials to meet different environmental requirements, enabling precise selection:

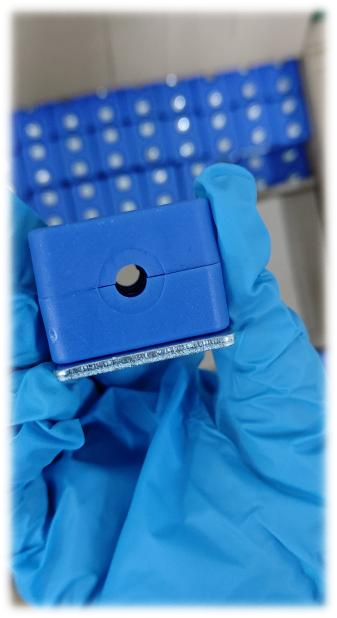

Polypropylene: Temperature resistance -30~+90℃, available in green and blue, suitable for conventional working conditions.
Nylon: Temperature resistance -40~+120℃, black appearance, with better toughness and weather resistance.
Aluminum Alloy: Temperature resistance -50~+300℃, suitable for medium and high temperature environments.
Plastic-Steel: Temperature resistance -50~+300℃, balancing strength and corrosion resistance.
Stainless Steel: Temperature resistance -80~+500℃, preferred for high-temperature and high-pressure scenarios.
Special Material: Suitable for low-temperature environments of -40~-50℃.
PVC: Resistant to 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide, applicable for strong corrosion scenarios.

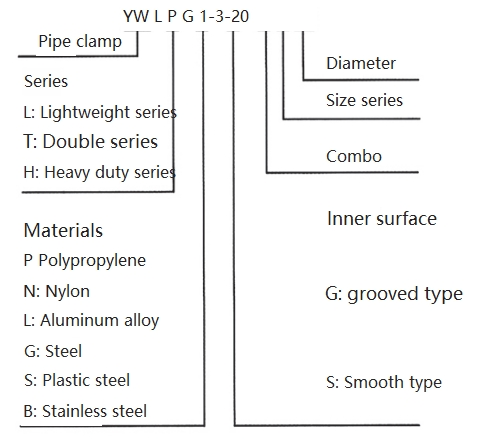

II. Core Selection Parameters, Easy to Understand
Selecting a pipe clamp only requires clarifying 3 key parameters to easily match needs:
Pipe Diameter : Outer diameter 6-220mm (light series 6-57mm, duplex series 6-42mm, heavy series 8-220mm), with complete corresponding inch specifications.
Pressure Rating: Light series for PN<9MPa, heavy series for PN≤31.5MPa, covering all medium and low pressure scenarios.
Suitable Material: Choose corresponding materials based on temperature (-80~+500℃), corrosion, flame and other requirements.
 |
 |
 |
III. Precise Matching of Scenarios and Materials, Safe to Use
Low-temperature Environments (e.g., harsh cold outdoors): Choose cold-resistant material, resistant to -40℃ low temperature.
Strong Corrosion Scenarios (e.g., chemical pipelines): PVC corrosion-resistant or stainless steel material is preferred.
High-temperature Working Conditions (e.g., pipelines around industrial furnaces): Steel or stainless steel material, withstanding up to 500℃ high temperature.
Harsh Environments such as Offshore Oilfields: Anti-aging material, with a service life 5-8 times that of ordinary pipe clamps.
Conventional Mechanical Hydraulic Systems: Engineering polypropylene or reinforced nylon material, cost-effective.
Flame Retardant Requirement Scenarios: Flame-retardant pipe clamps, with flame retardant grade up to UL 94—V5.
AFKLOK pipe clamps not only have rich materials and clear parameters but also support multi-layer design (up to five layers) and customized needs. The installation spacing is scientifically set according to the pipe diameter, with suitable solutions for pipes from 6mm to 220mm. Whether for conventional working conditions or special environments, you can find a precisely matched pipe clamp product to provide reliable protection for various pipeline fixings.
