AFK Stainless Steel Semi-automatic Switching System Gas Regulator

Short Description:

Features

1. It is applicable to the occasion of uninterrupted gas supply. When one end is exhausted, it will automatically switch to the other end
2. With the air supply priority selection handle, you can set the priority air supply source
3. WR11 pressure reducer is used as the prototype valve, which can be used for corrosive and toxic gases
4. Wv4c diaphragm valve two-way three-way valve is adopted, with fewer links
5. Install a 20 micron filter element at the inlet
6. Oxygen environment application options are available
7. The output pressure is within a certain range and has been set at the factory


Product Detail

Video

Parameters

Ordering Information

Application Scenarios

FAQ

Product Tags

Features
1. It is applicable to the occasion of uninterrupted gas supply. When one end is exhausted, it will automatically switch to the other end
2. With the air supply priority selection handle, you can set the priority air supply source
3. WR11 pressure reducer is used as the prototype valve, which can be used for corrosive and toxic gases
4. Wv4c diaphragm valve two-way three-way valve is adopted, with fewer links
5. Install a 20 micron filter element at the inlet
6. Oxygen environment application options are available
7. The output pressure is within a certain range and has been set at the factory

20220716141048_12519

  • Previous:
  • Next:

  • Technical Data

    1 Maximum inlet pressure 3500psig
    2 Outlet pressure range 85~115,135~165185~215,235~265
    3 Materials of internal components Valve seat: PCTFEDiaphragm: HastelloyFilter element: 316L
    4 Working temperature -40 ℃ ~+74 ℃ (-40 ℉~+165 ℉)
    5 Leakage rate (helium) Inside the valve: ≤ 1×107 mbar l/s
    Valve external: ≤ 1X109 mbar l/s
    Connections: visible bubbles
    6 Flow coefficient (CV) Pressure reducing valve: cv=0.2
    Diaphragm valve: cv=0.17
    7 Parent port Inlet: 1/4npt
    Outlet: 1/4npt
    Pressure gauge port: 1/4npt

    Working Principle

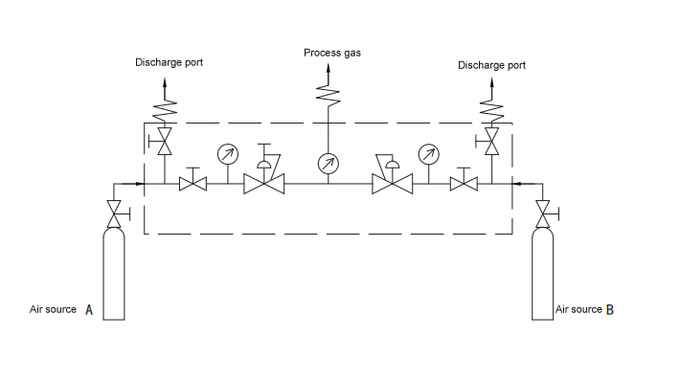

    1. Wcosr11 series switching device includes two independent pressure reducing valves. Adjust the outlet pressure on the left and right sides by operating the linkage lever, that is, when the left increases, the right decreases and the left supplies air; When the right increases, the left decreases, and the right supplies air
    2. When one side of the air supply is exhausted, it will automatically switch to the other side of the air supply
    3. Close the inlet diaphragm valve, open the pressure relief diaphragm valve, empty the air source on the exhausted side, and then replace with a new air source
    4. The priority air supply source can be selected by turning the switch handle

    20220716141048_46011

    Model selection table

    6L 35 100 00 10 RC O2
    body material Inlet pressure P1 Outlet pressure range P2 Inlet / outlet specifications Accessory options Cleaning process
    6L SS316L 35:3500PSI 100:85-115PSIG 00:1/4″NPT F No requirement Standard (grade BA)
        150:135-165PSIG 01:1/4″NPT M P:Inlet equipped with pressure sensor C2:Oxygen cleaning
        200:185-215PSIG 10:1/4″ OD R:Outlet equipped with unloading valve
        250:235-265PSIG 11:3/8″ OD C:Inlet equipped with one-way valve
          HC:CGANo. with high pressure hose (USA)
          HDIN:DIN No. with high pressure hose (Germany)



     Model selection table

    6L 35 100 00 10 RC O2
    body material Inlet pressure P1 Outlet pressure range P2 Inlet / outlet specifications Accessory options Cleaning process
    6L SS316L 35:3500PSI 100:85-115PSIG 00:1/4″NPT F No requirement Standard (grade BA)
        150:135-165PSIG 01:1/4″NPT M P:Inlet equipped with pressure sensor C2:Oxygen cleaning
        200:185-215PSIG 10:1/4″ OD R:Outlet equipped with unloading valve
        250:235-265PSIG 11:3/8″ OD C:Inlet equipped with one-way valve
          HC:CGANo. with high pressure hose (USA)
          HDIN:DIN No. with high pressure hose (Germany)
