R11 Stainless Steel Double Gauges High Pressure Argon Helium Gas Regulator 250psi

Short Description:

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.


Product Detail

Video

Parameters

Ordering Information

Applications

FAQ

Product Tags

Stainless Steel Double Gauges High Pressure Argon Helium Gas Regulator 250psi

Features of pressure reducer
The following factors need to be paid attention to when selecting the pressure reducer. Follow up your specific use requirements and use this catalog to select the pressure reducer that matches your parameters. Our standard products are just the beginning of our service. We can modify or design the equipment to solve any problems in the application. For details, please contact our AFK foreign trade product sales representative.

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.



AFK-R11-pressure-regulator
Reducer details

  • Previous:
  • Next:

  • Product parameter of Stainless Steel Double Gauges High Pressure Argon Helium Gas Regulator 250psi

    Technical Data of argon helium gas regulator 250psi
    1 Max inlet pressure 500, 3000 psi
    2 Outlet pressure 0~25, 0~50, 0~100, 0~250, 0~500 psi
    3 Proof pressure 1.5 times of maximum rated pressure
    4 Working temperature -40°F-+165°F(-40°C-+74°C)
    5 Leakage rate 2*10-8 atm cc/sec He
    6 Cv 0.08



    Main Features of high pressure gas regulator
    1 Single -stage reduce Structure
    2 Use hard-seal between body and diaphragm
    3 Body Thread 1/4″ NPT ( F )
    4 Easy to sweep inside body
    5 Filter mesh inside
    6 Panel mountable or wall mounted

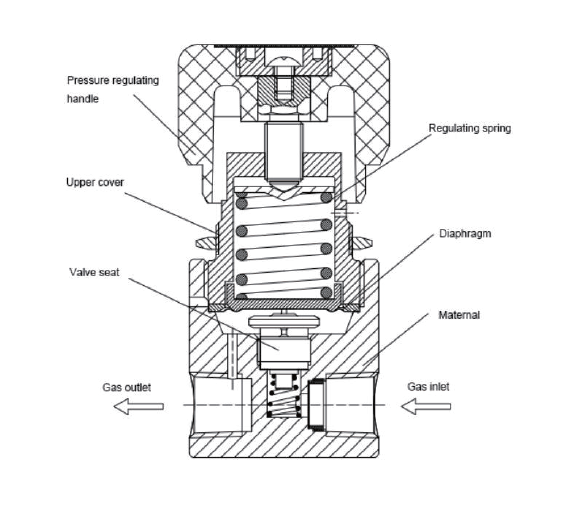

    Pressure reducer structure
    Typical applications
    1
    Laboratory
    2
    Gas Chromatograph
    3
    Gas Laser
    4
    Gas bus
    5
    Oil and chemical industry
    6
    Tested instrumentation
    Material
    1  Body:316L,brass
    2
    Roof:316L,brass
    3
    Diaphragm:316L
    4
    Filter mesh:316L(10μm)
    5
    Valve seat:PCTFE,PTFE,Vespel
    6
    Spring loaded:316L
    7
    Valve disc regulation pole:316L

    Product parameter of Stainless Steel Double Gauges High Pressure Argon Helium Gas Regulator 250psi

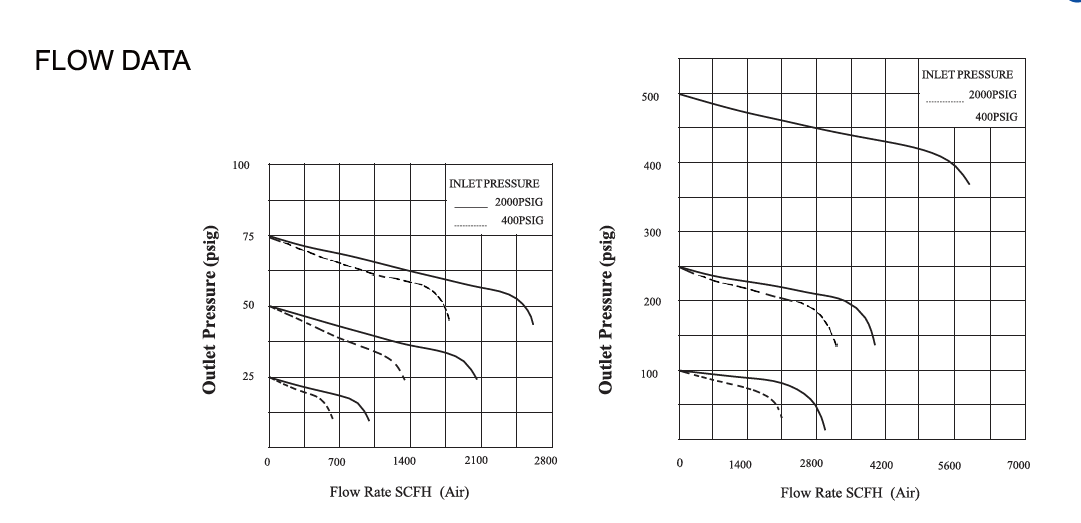

     flow

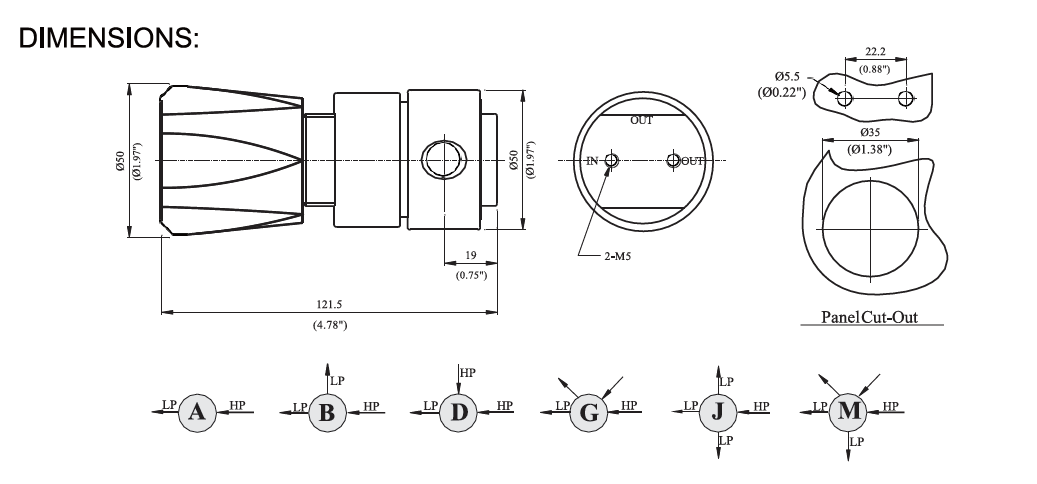

    dimensions

    Ordering Information

    R11

    L

    B

    B

    D

    G

    00

    02

    P

    Item

    Body Material

    Body Hole

    Inlet Pressure

    Outlet
    Pressure

    Pressure Guage

    Inlet
    size

    Outlet
    size

    Mark

    R11

    L:316

    A

    D:3000 psi

    F:0-500psig

    G:Mpa guage

    00:1/4″NPT(F)

    00:1/4″NPT(F)

    P:Panel mounting



    B:Brass

    B

    E:2200 psi

    G:0-250psig

    P:Psig/Bar Guage

    01:1/4″NPT(M)

    01:1/4″NPT(M)

    R:With relief valve





    D

    F:500 psi

    K:0-50pisg

    W:No guage

    23:CGGA330

    10:1/8″ OD

    N:Needle calve





    G



    L:0-25psig



    24:CGGA350

    11:1/4″ OD

    D:Diaphregm valve





    J







    27:CGGA580

    12:3/8″ OD







    M







    28:CGGA660

    15:6mm OD















    30:CGGA590

    16:8mm OD















    52:G5/8″-RH(F)

















    63:W21.8-14H(F)

















    64:W21.8-14LH(F)





    The main products sold by Wofei Technology are industrial gas pressure reducers, semiconductor pressure reducers, pressure regulators, diaphragm valves, bellows valves, stainless steel valves, tube fittings, VCR fittings, stainless steel pipes, high pressure hoses, flame arrestors, check valves, precision filters, instruments, gas alarms, analytical instruments, purifiers, gas proportioners, cryogenic valves, gas supply manifolds, BSGS, GC (special gas cabinets) In order to pursue better quality and to provide customers with higher and safer technology, we strictly follow the ISO9001 standard in the management of various gas related equipment and accessories.

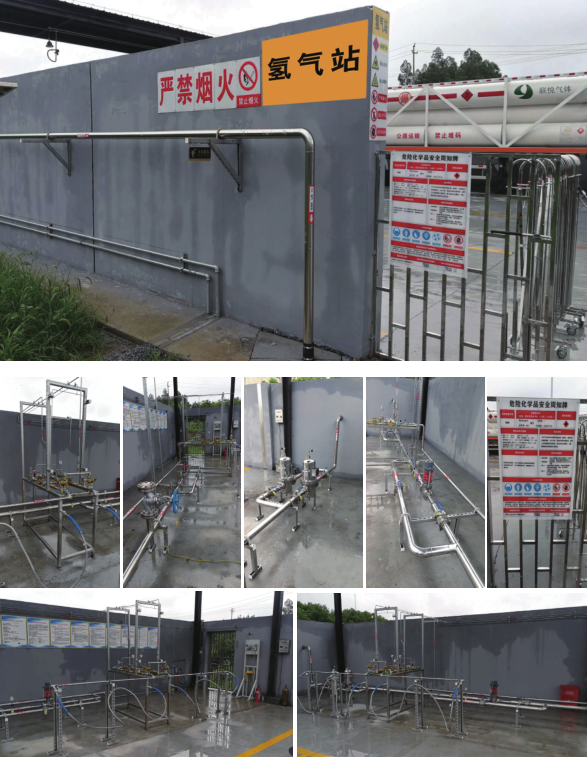

    工程4

    Q. Are you manufacturer?

    A. Yes, we are manufacturer.

    Q.What is lead time?

    A.3-5days. 7-10 days for 100pcs

    Q. How do I order?

    A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

    Q. Do you have any certificates?

    A.We have CE certificate.

    Q. What materials do you have?

    A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.

    Q. What is maximum inlet pressure?

    A.3000psi (about 206bar)

    Q. How do I confirm inlet connnection for cylidner?

    A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also

    available e.g CGA540, CGA870 etc.

    Q. How many types for connecting cylinder?

    A.Down way and side way. (you can choose it)

    Q. What is product warranty?

    A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
