WL500 Double Side Special Gas Manifold Oxygen Cylinder Manifold
Product Description of Gas Manifold

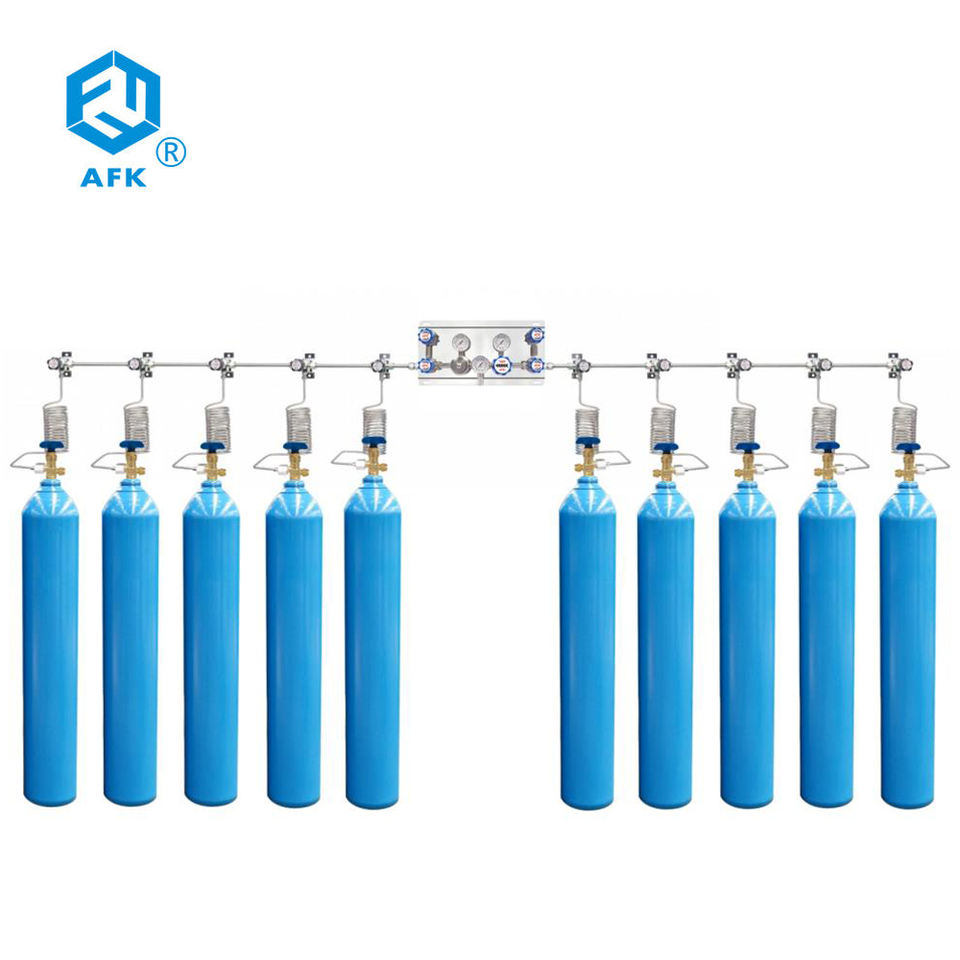

WL500 series double side special gas manifold
It is applied to the air supply of high-pressure gas cylinder pressure reducer, with the function of purging. The maximum input pressure can reach 20.7MPA (3000psi) for corrosion resistance. It is suitable for assembly and testing in clean workshops, and is suitable for the use of high-purity gases such as laboratories and gas analysis.
|
WL5 |
1 |
1 |
1 |
S |
M |
2 |
O2 |
|
Series |
Function Options |
Outlet type |
Inlet interface type |
body |
Input pressure |
Gauge |
Gas Options |
|
WL5：Bus bar assembly |
With external N2 low-pressure purging interface |
High pressure hose |
1/2″Welding |
S：stainless steel |
H:3000psi |
1×1 |
N2：nitrogen |
|
|
Electric heater |
High pressure coil |
1/2 “welded union |
|
M:2200psi |
2×2 |
O2：oxygen |
|
|
With external N2 low-pressure purging interface+electric heater |
|
3/4″Welding |
|
L:1000psi |
3×3 |
H2：hydrogen |
|
|
Standard configuration |
|
3/4 “welded union |
|
|
4×4 |
C2H2：acetylene |
|
|
|
|
|
|
|
5×5 |
CH4：methane |
|
|
|
|
|
|
|
|
AR：argon |
|
|
|
|
|
|
|
|
HE：helium |
|
|
|
|
|
|
|
|
AIR |
