AFK 076D Irrigation Water Solenoid Valve AC220V AC110V AC24V DC Latching

Short Description:

Feature:

1.pilot operated diaphragm structure,nylon reinforce

2.double filtration to protect solenoid core

3.water proof sealing coil

4.close slowfly function to prevent the water hammer


Product Detail

parameters

Applications

FAQ

Product Tags

076D Solenoid Valve Product Parameter

Material

1 Body Reinforced nylon
2 Sealring NBR
3 The movable iron core Stainless steel 430F
4 The static iron core Stainless steel 430F
5 Springs SUS304
6 Shading coil red copper

Application:

It is one of the most widely used electromagnetic valves in garden irrigation at present. It is used for large-area lawn, stadium, agriculture, industrial and mining dust removal and water treatment equipment.

1 Medium Water
2 Temp  Water Temp≤53℃,Surrounding Temp≤80℃
3 pressure 0.1-1.0mpa
4 flow 076DH≤5m³/h,101DH≤9m³/h
5 port size 3/4"and 1"
6 port thread female G BSP,NPT(customaization)
7 Orifice DN20 DN25
8 Voltage AC220V/AC110V/AC24V,50/60HZ DC24V/DC12V/DC9V DCLatching






  • Previous:
  • Next:

  • Electromagnetic head

    Electrical parameter of AC coil

    AC-coil

    Voltage Power  Starting Current Holding Current Coil impendance(20℃)
    AC24V 6.72W 0.41A  0.28A  30Ω
    AC110V 3W 0.072A  0.049A  840Ω
    AC220V 3W 0.037A 0.025A 2.73K Ω

    Electrical parameter of DC coil

    DC-coil

    Voltage Power Starting Current Holding Current Coil impendance(20℃)
    DC9V 3.6W 560mA 400mA 24Ω
    DC12V 3.6W 420mA 300mA 41Ω
    DC24V 3.6W 252mA 180mA 130Ω

    Electrical parameter of DC lacthing coil with pulse

    dc-latching

    Voltage range:9-20VDC

    Capacitance required:4700u

    Coil resistance:6Ω

    Coil inductance:12mH

    Pulse width:20-500mSec

    Work Mode:+red&-black valve core lock position(valve opening) -red&+black valve core unlock position(valve opening)



    The selection of sprinkler irrigation equipment plays a key role in the quality of sprinkler irrigation system operation, as the control equipment of the solenoid valve has a stable work, long service life, no harsh requirements for the working environment and other characteristics. Understanding the working principle and performance characteristics of the solenoid valve, mastering its use will be conducive to good equipment selection work. Good performance of the solenoid valve on the whole green sprinkler system cost control and system operation have a positive contribution.

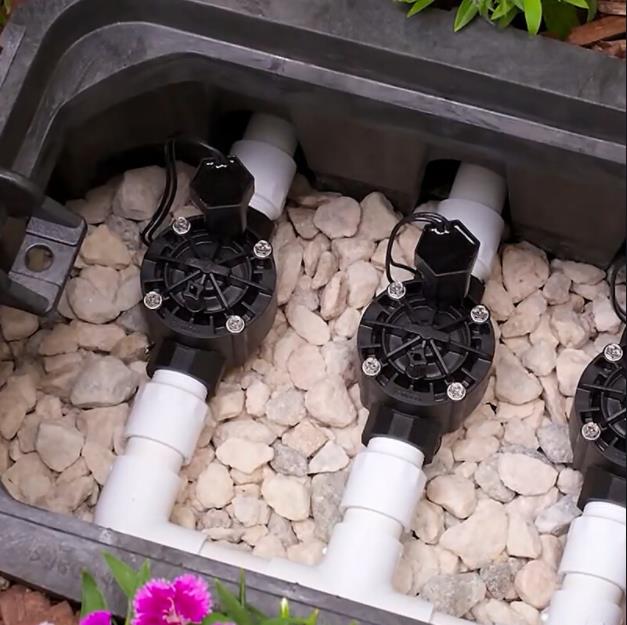

    应用场景

    Q1. What is your terms of packing?

    A: Export standard.

    Q2. What is your terms of payment?

    A: T/T ,PayPal, Western Union.

    Q3. What is your terms of delivery?

    A: EXW.

    Q4. How about your delivery time?

    A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?

    A:1. We keep good quality and competitive price to ensure our customers benefit ;

    A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
