CGA580 High Pressure Regulator for 300 bar Nitrogen Valve Cylinder
Technical Data of Stainless Steel
| 1 | Max inlet pressure | 3000, 6000 psig |
| 2 | Outlet pressure | 0~250, 0~500, 0~1500, 0~3000 psig |
| 3 | Proof pressure | 1.5 times of maximum rated pressure |
| 4 | Working temperature | -10°F-+165°F(-23°C-+74°C) |
| 5 | Leakage rate | bubble-tight testing |
| 6 | CV | 0.06 |
| 7 | Body Thread | 1/4″ NPT ( F ) |
| 8 | Body/Bonnet/Stem/Spring loaded | 316L |
| 9 | Filter mes | 316L (10μm) |

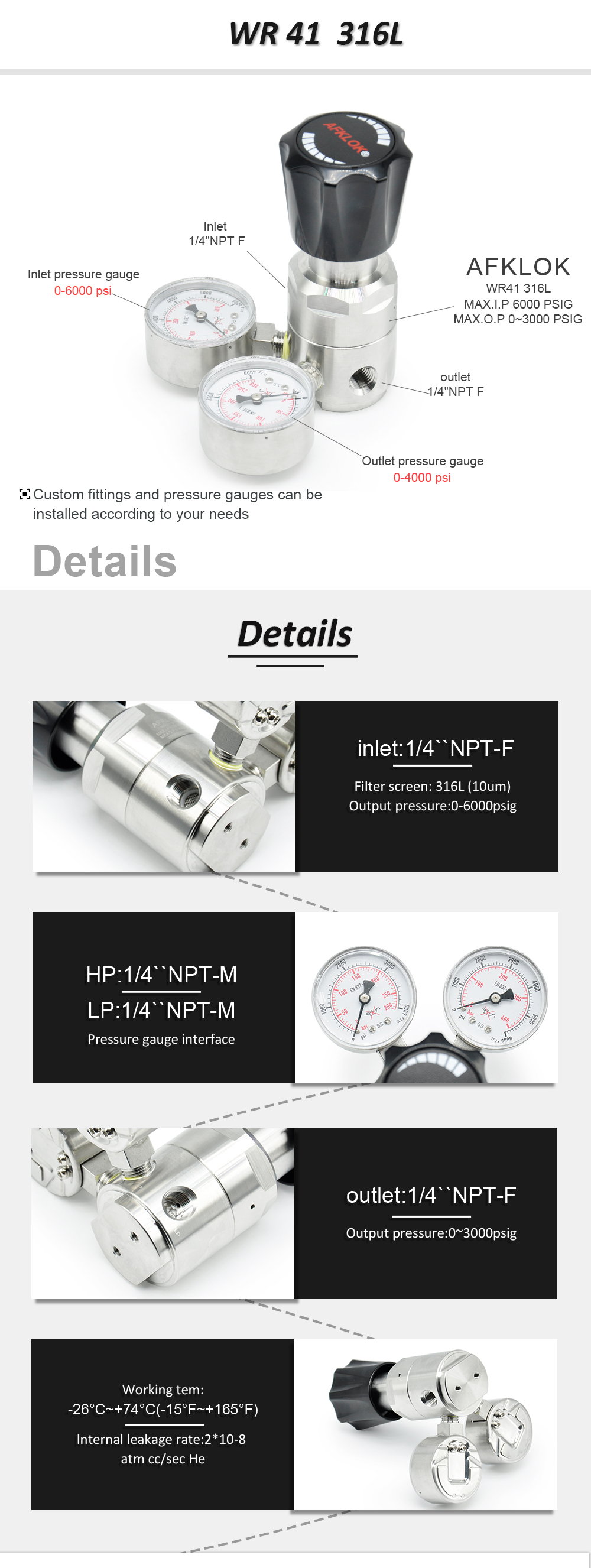

Main Features of R41 Pressure Regulator
| 1 | Piston pressure- reducing Structure. |
| 2 | Body Thread : 1/4″ NPT ( F ) |
| 3 | Filter element installed internally |
| 4 | Panel mountable or wall mounted |
|
R41 |
L |
B |
B |
D |
G |
00 |
00 |
P |
|
Item |
Body Materia |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Gauge |
Inlet Size |
Outlet Size |
Options |
|
R41 |
L:316 |
A |
B:6000psig |
D:0~3000psig |
G:MPa gauge |
00:1/4″NPT(F) |
00:1/4″NPT(F) |
P:Panel mounting |
|
|
B:Brass |
B |
D:3000psig |
E:0~1500psig |
P:Psig/bar gauge |
00:1/4″NPT(M) |
00:1/4″NPT(M) |
|
|
|
|
D |
|
F:0~500psig |
W:No gauge |
10:1/8″OD |
10:1/8″OD |
|
|
|
|
G |
|
G:0~250psig |
|
11:1/4″OD |
11:1/4″OD |
|
|
|
|
J |
|
|
|
12:3/8″OD |
12:3/8″OD |
|
|
|
|
M |
|
|
|
15:6mm”OD |
15:6mm”OD |
|
|
|
|
|
|
|
|
16:8mm”OD |
16:8mm”OD |

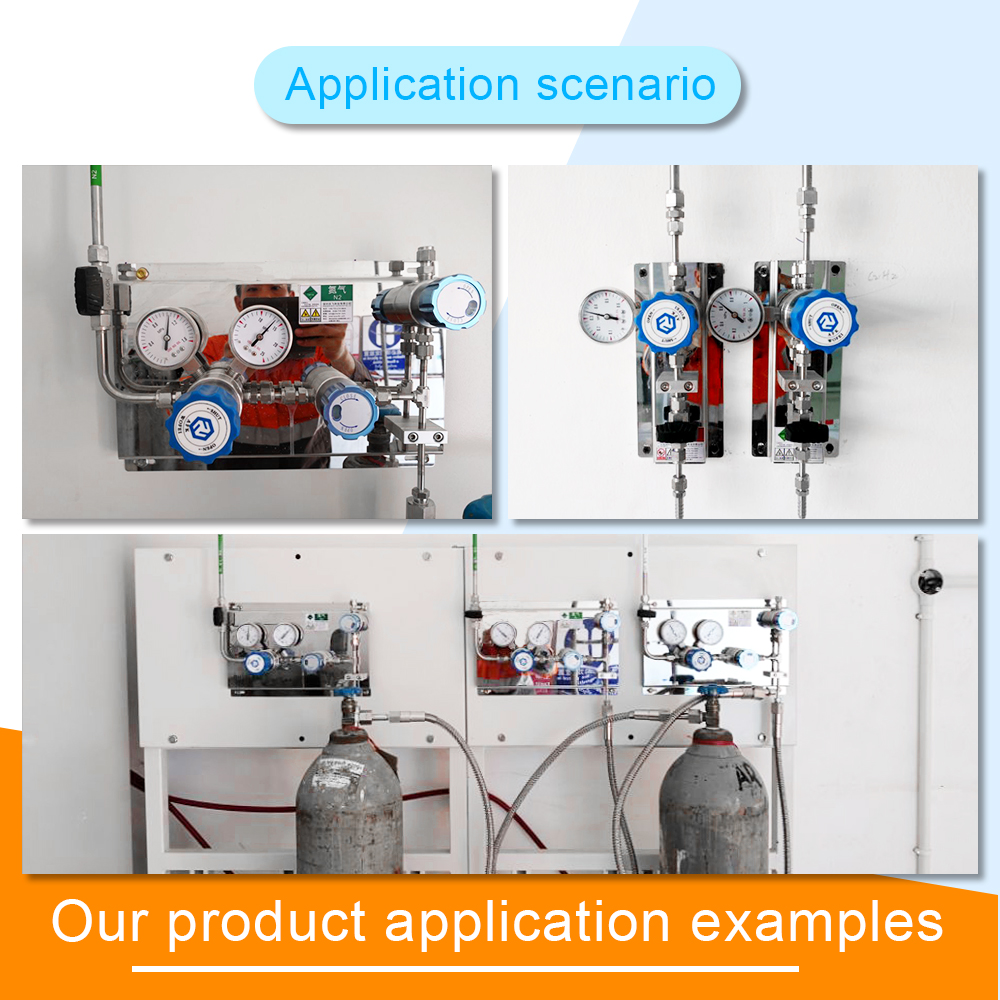

Gas cylinders must be stored in a cool, dry room where open flames are strictly prohibited and away from heat sources, and they should be strictly prohibited from open flames and protected from exposure to the sun. Except for non-combustible gases, they are not allowed to enter the laboratory building. The gas cylinders in use should be placed upright and fixed. Gas cylinders should be placed in a special cylinder room as far as possible, the conditions should be placed in the cylinder cabinet with exhaust and alarm function, the cylinder room should pay attention to the exhaust, easy to react with the gas to be isolated. PCR laboratory ventilation and exhaust.
