250psi 3/4″NPT Medium Flow Diaphragm SS Single Stage Pressure Regulator

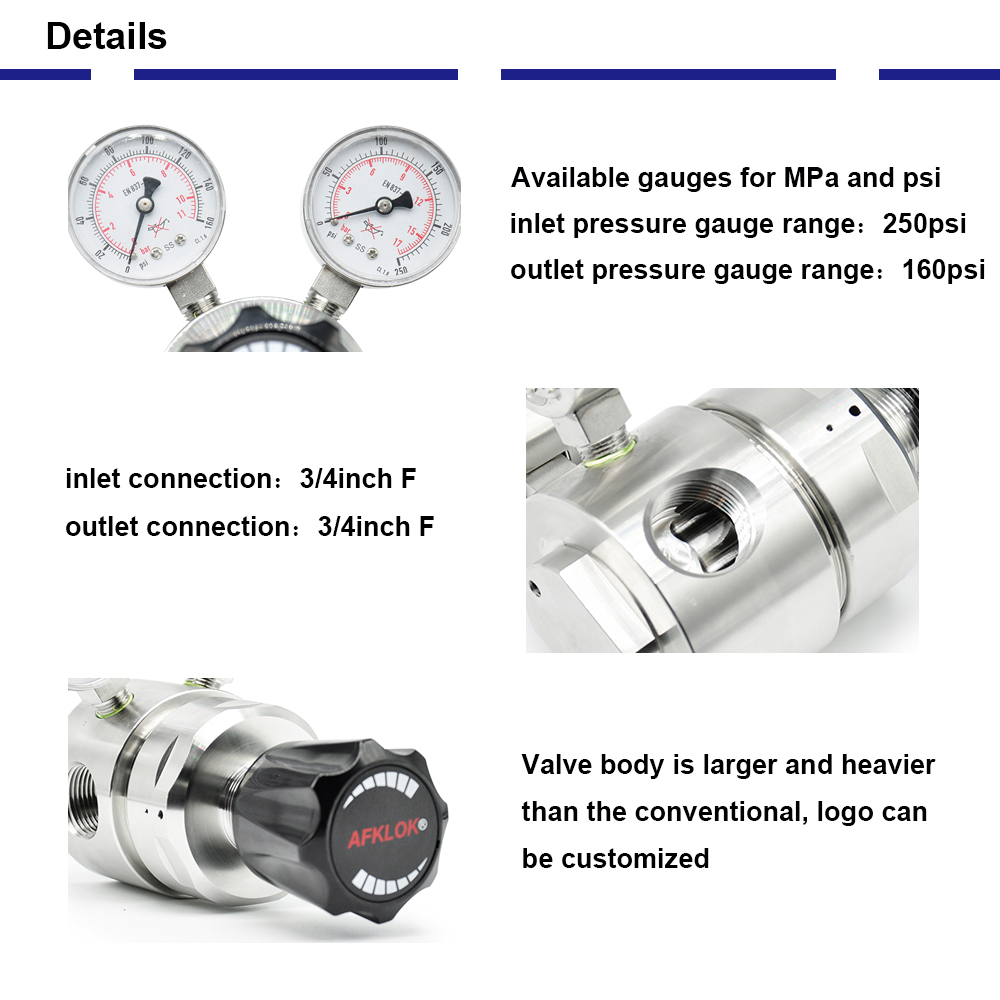

Design Feature of Gas Pressure Regulator
| 1 | Single-stage pressure reducer |
| 2 | Maternal and diaphragm use hard seal form |
| 3 | Body NPT:inlet and outlet interface 3/4”NPT(F) |
| 4 | pressure gauge:relief valve interface 1/4” NPT(F) |
| 5 | The internal structure easy to purge |
| 6 | Can set filters |
| 7 | Can use a panel or wall mounting |
Technical Parameter of R13 Single Stage Pressure Reducer
| 1 | Maximum Inlet Pressure | 500,1500psig |
| 2 | Outlet Pressure Ranges | 0~15, 0~25, 0~75,0~125PSIG |
| 3 | Safety test pressure | 1.5 times maximum inlet pressure |
| 4 | Operating Temperature | -40°F to +165°F / -40°c to 74°c |
| 5 | Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he |
| 6 | Cv value | 1.8 |
Material of Pressure Regulator
| 1 | Body | 316L, Brass |
| 2 | Bonnet | 316L. Brass |
| 3 | Diafragm | 316L |
| 4 | Strainer | 316L(10 μm) |
| 5 | Seat | PCTFE,PTEE |
| 6 | Spring | 316L |
| 7 | Plunger valve core | 316L |
Ordering Information
|
R13 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R13 |
L:316 |
A |
E:1500 psi |
H:0-125psig |
G:Mpa guage |
04:1/2″NPT(F) |
04:1/2″NPT(F) |
P:Panel mounting |
| B:Brass |
B |
F:500 psi |
J:0-75psig |
P:Psig/Bar Guage |
05:1/2″NPT(M) |
5:1/2″NPT(M) |
R:With relief valve |
|
| D |
L:0-25psig |
W:No guage |
06:3/4″NPT(F) |
06:3/4″NPT(F) |
|
|||
| G |
M:0-15psig |
13:1/2″ OD |
14:3/4″ OD |
|||||
| J |
14:3/4″ OD |
14:3/4″ OD | ||||||
| M |
Other type is available |
Other type is available |

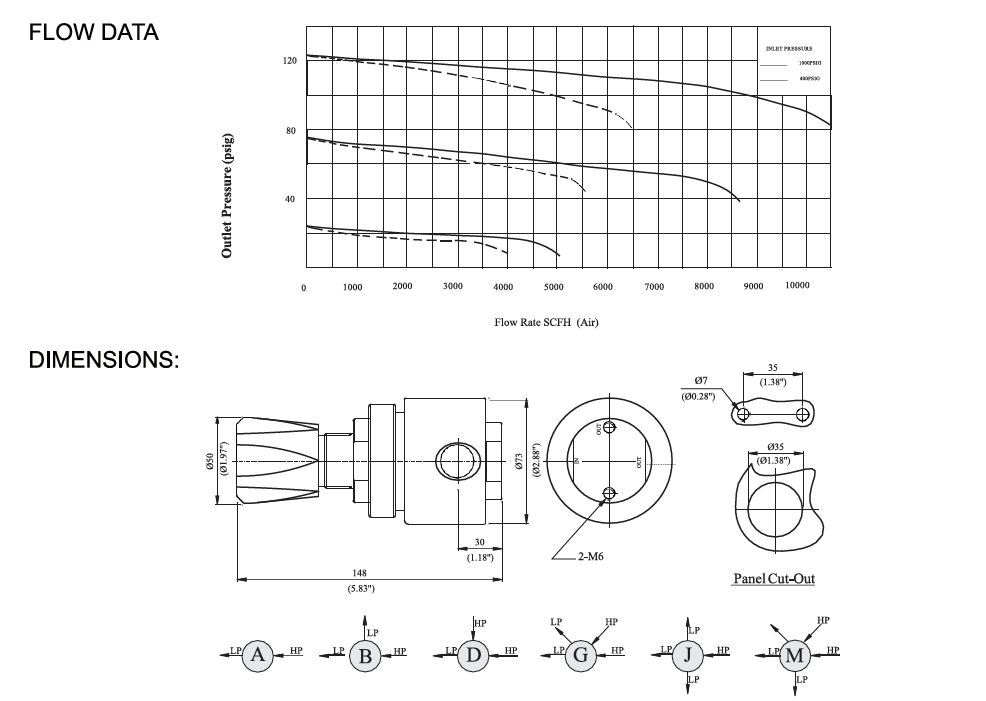

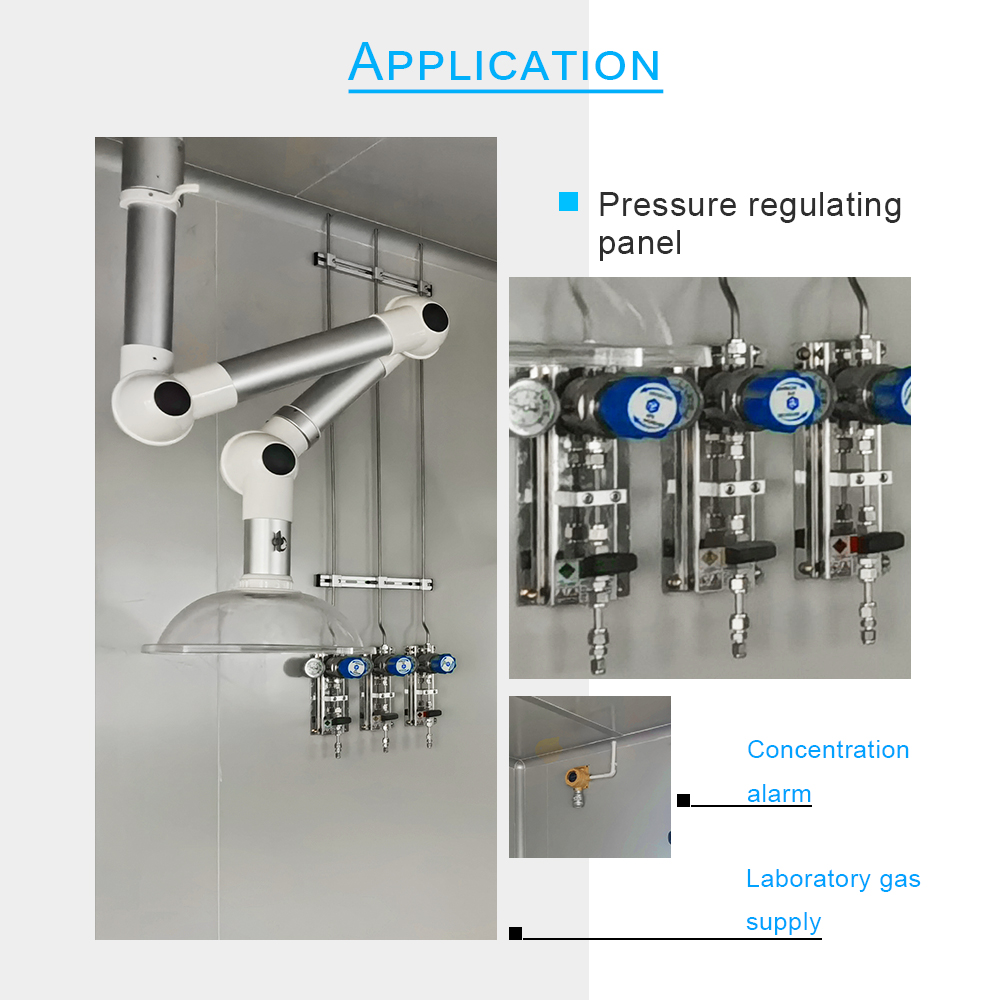

PCR laboratory gas pipeline (referred to as gas pipeline) is an essential component of modern PCR laboratory, gas pipeline for chromatography, atomic absorption, micro Coulomb sulfur determination, calorimetry, trace sulfur analysis and other instruments to provide safe and reliable gas to ensure the accuracy of analytical data and extend the service life of the instrument. It can be said that the status of the gas line in the modern PCR laboratory is pivotal.
