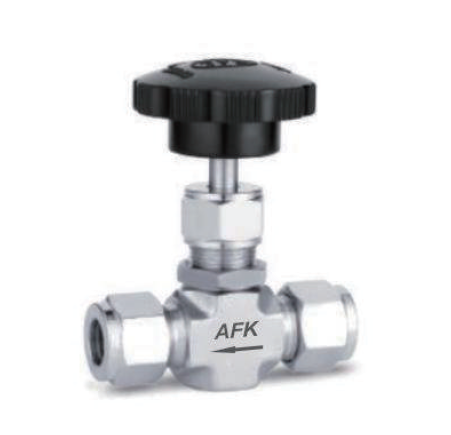

High Pressure Gas Needle Valve Stainless Steel 6000psi 3000psi

Short Description:

Features

Forged body available with inline and angle pattern

Body material in Stainless Steel SS316/316L

Max. working pressure to 6000 psig (413 bar) at 37°C (100 °F)

Panel mountable

TFM1600 packing as standard

100% factory tested


Product Detail

Product Tags

Features

Forged body available with inline and angle pattern

Body material in Stainless Steel SS316/316L

Max. working pressure to 6000 psig (413 bar) at 37°C (100 °F)

Panel mountable

TFM1600 packing as standard

100% factory tested

Product Description

Product Name 2 Way Needle Valve
Material stainless steel 304, ss316
Size Range  3-12mm,  1/8-1/2
Standard DIN GB ISO JIS BA ANSI
Medium  Gas, Water
End Connection  OD, BSP thread, NPT thread
Seal Material  PTFE
Working Pressure  3000PSI, 6000PSI
Medium Temperature  -40-200℃

Packing Materials& Pressure Temperature Ratings

Body Material SS316/316L
Packing Material TFM1600
Temperature °C (°F) Working Pressure psig(bar)
-53°C (-65°F)-+37°C(100°F) 6000(413)
93(200) 5160(355)
121(250) 4910(338)
148(300) 4660(321)
176(350) 4470(307)
Packing Material Body Material Temperature Rating
TFM1600 SS316/316L -53°C (-65T) ~ +210℃(410°F

Test
Each AFK series needle valve is factory tested withnitrogen at 1000 psig ( 69 bar).

Pressure ratings of valves with afk compression end connection are determined by the tubing material andwalhickness . for more information . please see afk tube fitting catalog

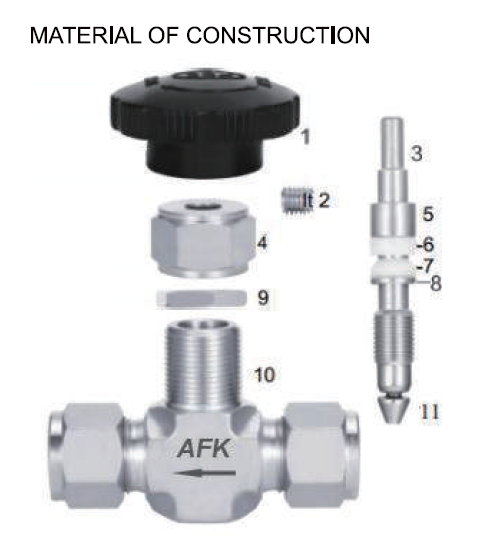

MATERIAL OF CONSTRUCTION

material of construction

Item

Part Description

Qty.

Material

1

Handle

1

Phenolic Resins

2

Locking Nut

1

SS304

3

Stem

1

SS316/316L

4

Packing Nut

1

SS316/316L

5

Upper Gland

1

SS316/316L

6

Upper Packing

1

TFM1600

7

Lower Packing

1

TFM1600

8

Lower Gland

1

SS316/316L

9

Panel Nut

1

SS304

10

Body

1

SS316/316

11

Stem Tip

1

SS630



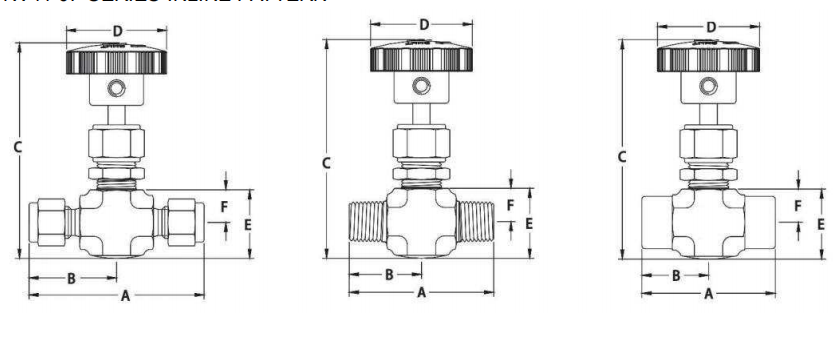

ORDERING INFORMATION

c

NV

1

1-

S6-

02

A

T

CLASSIFICATION PRODUCTN AME VALVE TYPE VALVE PATTERN MATERIAL SIZE(FRACTIONAL)

SIZE (MRTRIC)

CONNECTION TYPE PACKING
C : VALVE NV :NEEDLE VALVE 1 :FORGED 1 :INLINE PATTERN S6 :SS316 02 :1/8" 4 : 4mm A:AFKTUBE END

T:TFM1600

      2 :ANGLE PATTERN S6 L: SS316L 04 :1/4" 6 : 6mm MR :MALE BSPT THREAD


06 :3/8"

8 : 8mm FR :FEMALE BSPT THREAD


08 :1/2"

10 :10mm MN :MALE NPT THREAD


12 :12mm

FN :FEMALE NPT THREAD

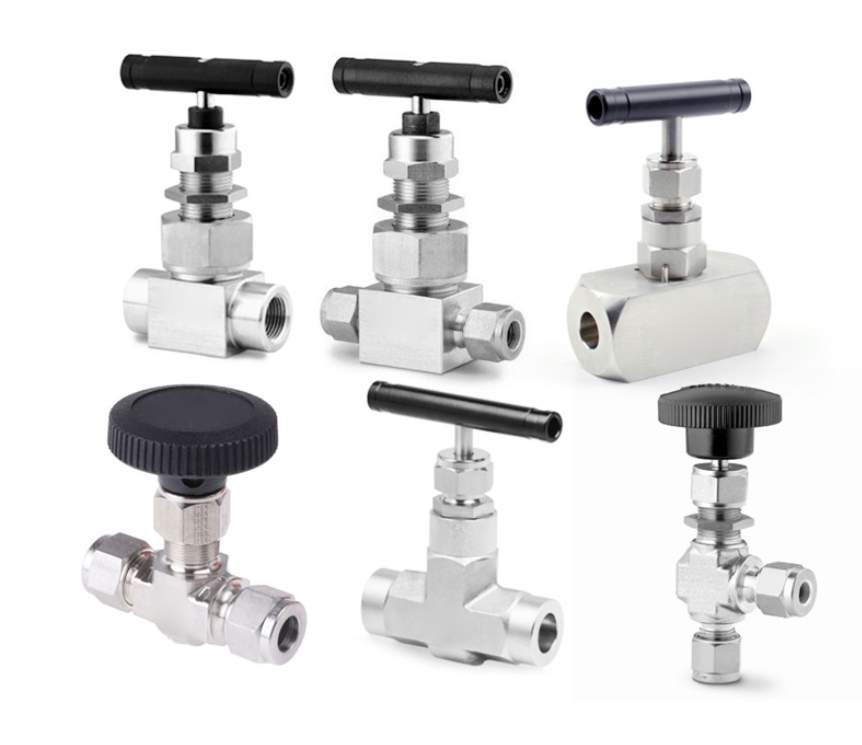

Needle Valve

CHOICES OF STEMS

CHOICES OF STEMS

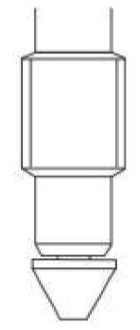

V-TIP NON-ROTATING STEM ( STANDARD )

For high-cycle applications to extend valve life

Seat and stem galling preventable

For general purpose

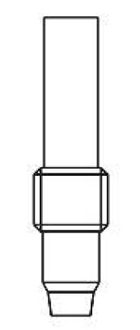

CHOICES OF STEMS B

V-STEM

For general purpose

Suitable for liquids and purge gases

CHOICES OF STEMS

PCTFE SOFT SEAT STEM

With a lower seating torque

For repetitive shutoff applications

Suitable for liquids and purge gases

Needle Valve

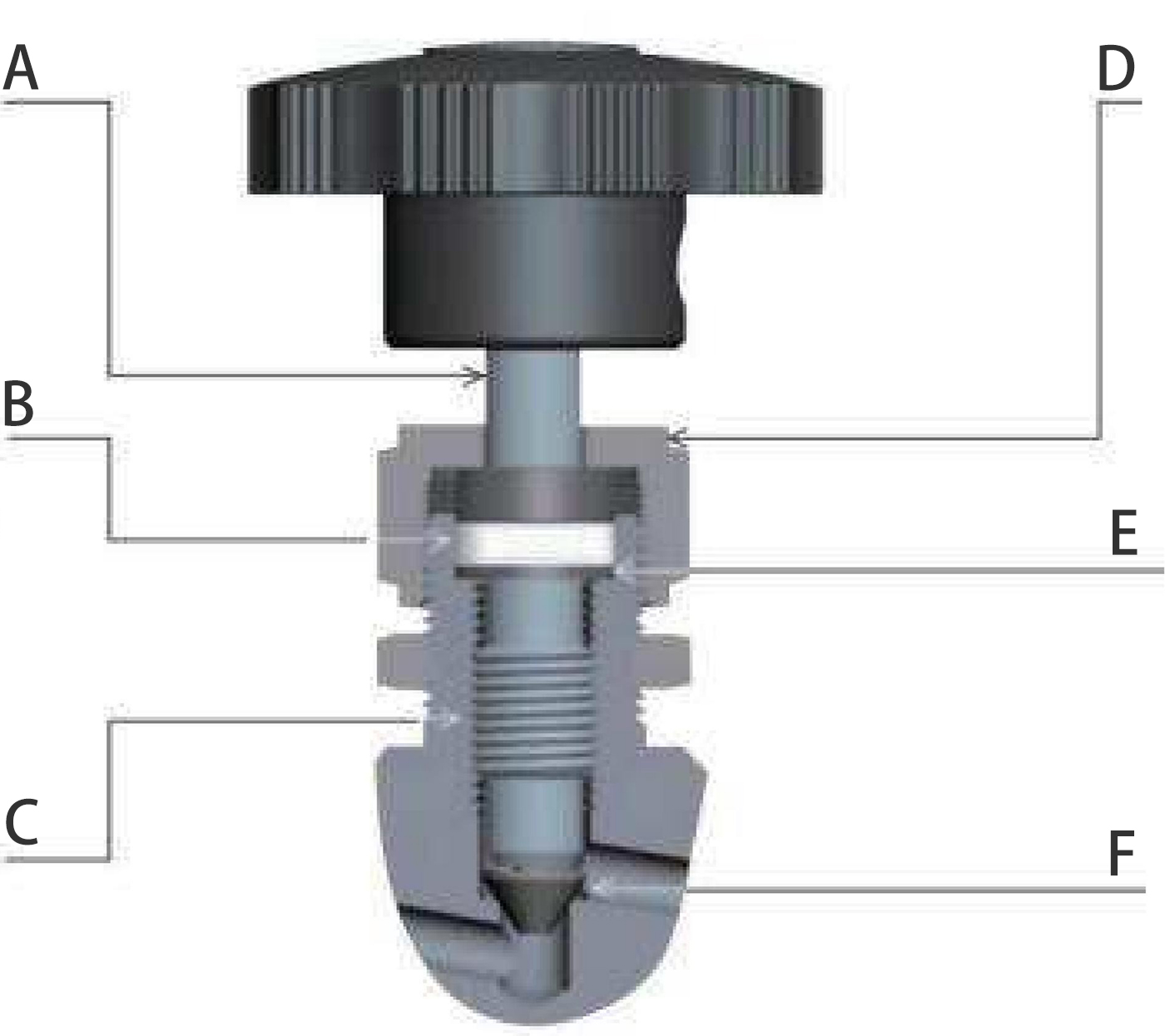

CHARACTERISTICS

CHARACTERISTICS

A:Integral bonnet design eliminates inadvertent stem back out

B:2-piece improved chevron packing forbetter seal and lower operating torque.

C:Rolled stem threads for extremely durable

D:Integral bonnet design eliminates inadvertent stem back out

E:Fully supported packing reduces need for adjustment

F:Three choices of stems , including V-tip non-rotating stem , V-stem and soft seat stem
