Laboratory High Pressure Nitrogen Regulator 3000psi with Gauge

Short Description:

Product name: High Pressure Nitrogen Regulator 3000psi with Gauge

Material: Stainless Steel

Model Number: R11-Flowmeter

Application: Industrial

Certificate: ISO9001

Brand Name: AFKLOK

Working TEM: -40℉~+446℉(-40℃~+230℃)

Inlet connection: CGA580

Outlet connection: 1/4NPT M(with a flowmeter in 1L/min)

Inlet Pressure: 4000PSI

Outlet pressure: 100PSI

Send email to us

Product Detail

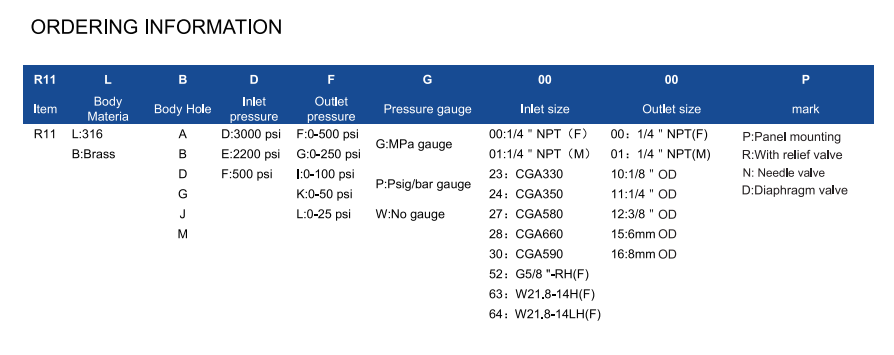

Ordering Information

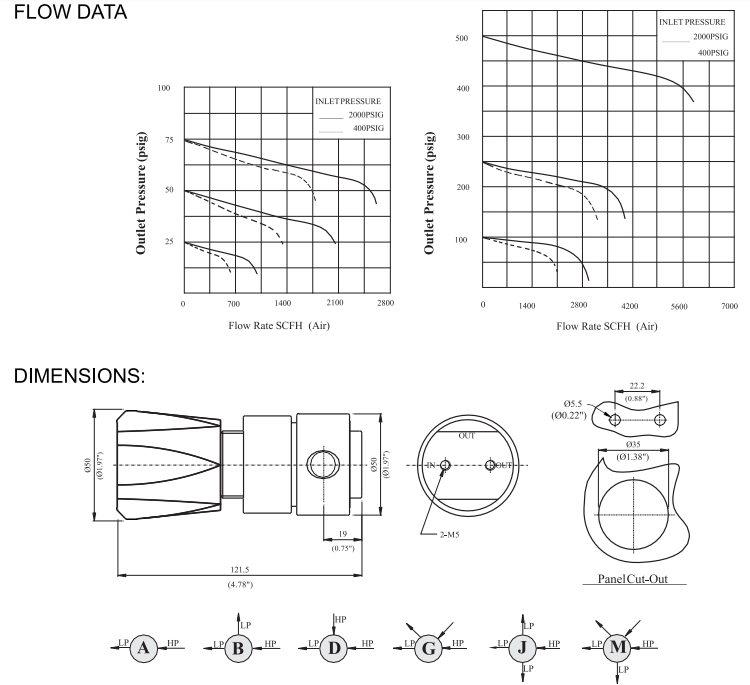

Product Parameters

Video

Application

Product Tags

Previous: High Purity Two Stage Gas Regulator Stainless Steel 316L 3500psi

Next: 6mm 8mm 10mm 12mm Instrumentation Stainless Steel Gas Ferrule Tee Tube Pipe Fittings Reducer

R11	L	B	D	F	G	00	00	P
Item	Body Materia	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	mark
R11	L:316	A	D:3000 psi	F:0-500 psi	G:MPa gauge	00:1/4 ” NPT (F)	00: 1/4 ” NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250 psi		01:1/4 ” NPT (M)	01: 1/4 ” NPT(M)	N:Needle valve
		D	F:500 psi	l:0-100 psi	P:Psig/bar gauge	23: CGA330	10:1/8 ” OD	N:Needle valve
		G		K:0-50 psi		24: CGA350	11:1/4 ” OD	D:Diaphragm valve
		J		L:0-25 psi	W:No gauge	28: CGA660	12:3/8 ” OD
		M				28: CGA660	15:6mm OD
						30: CGA590	16:8mm OD
						52: G5/8 “-RH(F)
						63: W21.8-14H(F)
						64: W21.8-14LH(F)

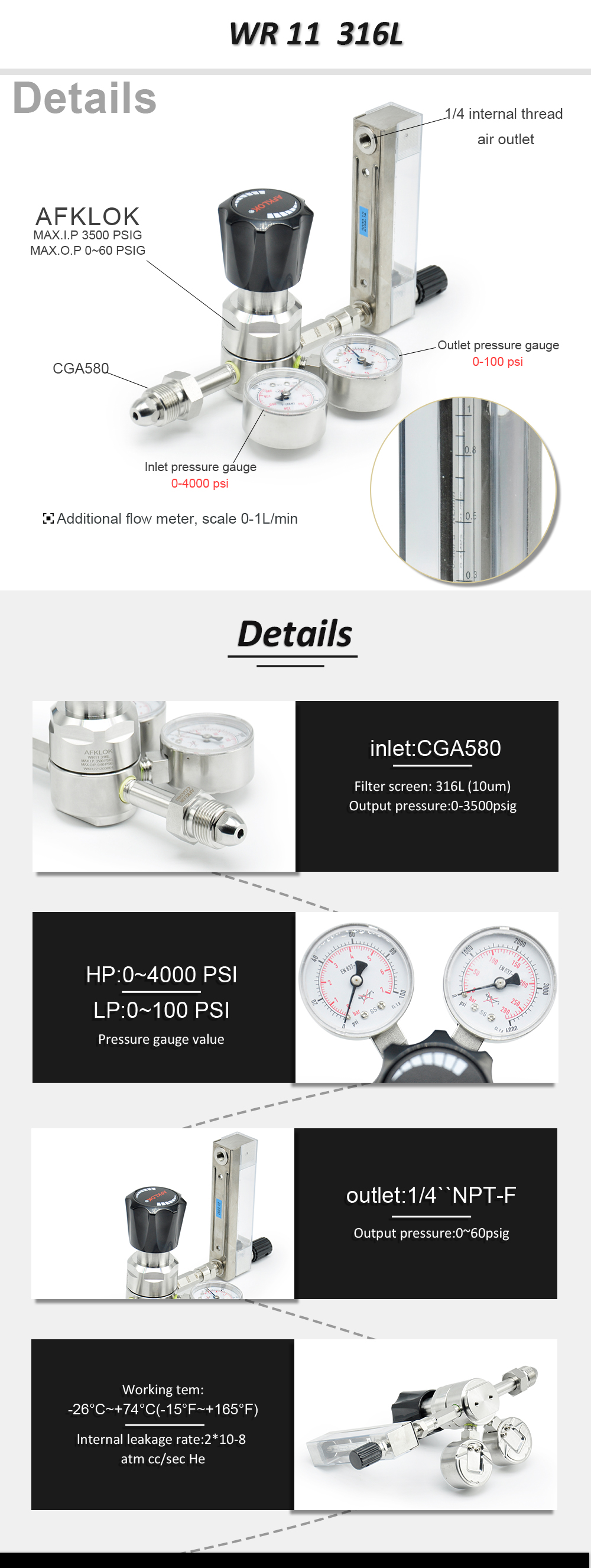

1.Inlet Connection
Multiple connections available ·
Compliant with CGA/BSP/DIN/JIS/GB standards leak-proof seal

2. Inlet (High) Pressure Gauge
High accuracy and stability

3.Outlet (Low) Pressure Gauge
High accuracy and stability

4. Outlet Connection
Multiple connections available

5.Outlet Connection with flow meter
Glass rotameter for regulation

6. Regulator Body
Fabricated from high-strength corrosion-resistant material
Fabricated with advanced CNC machines to produce the highest quality of parts
Wetted area are polished to ensure a clean and smooth flow
316L & Hastelloy diaphragms produce a metal-to-metal

Features OF Pressure Reducing Regulator

Single-stage reduce structure
Use hard-seal between body and Diaphragm
Body Thread:1/4″ NPT (F)
Easy to sweep inside body
Filter mesh inside
Panel mountable or wall mounted

Characteristic Parameters of First Stage Propane Regulator

Max inlet pressure : 500,3000 psig
Outlet pressure : 0~25, 0~50, 0~100,0~250，0~500 psig
Proof pressure:1.5 times of maximum rated pressure
Working tem:-40°F ~+446°F (-40*C~+230°C)
Leakage rate:2*10-8 atm cc/sec He
Cv :0.08

Material of Adjustable Gas Regulator

Body:316L, Brass
Roof:316L, Brass
Diaphragm:316L
Filter mesh:316L(10μ m)
Valve seat:PCTFE,PTFE,Vespel
Spring loaded:316L
Valve disc regulation pole:316L

Application Scope of Argon Pressure Regulator

Laboratory
Gas Chromatograph
Gas Laser
Gas bus
Oil and chemical industry
Tested instrumentation

WOFLY provides safe and professional design and installation of hydrogen station gas supply and transmission needs, and strictly in accordance with the national standard design and construction production, in order to ensure the safety of gas.

Our products are commonly used in oil, gas, pharmaceutical, semiconductor and other usage scenarios.
