AFK Stainless Steel High Pressure Cylinder Argon co2 Carbon Dioxide Gas Pressure Regulator Valve 25Mpa

Short Description:

Features of co2 carbon dioxide gas pressure regulator

1. Bipolar diaphragm structure

2. The corrugated diaphragm design has excellent sensitivity and life

3. It can be used for corrosive and toxic gases

4. Install a 20 micron filter element at the inlet

5. Oxygen environment application options are available

Send email to us

Product Detail

Video

Parameters

Ordering Information

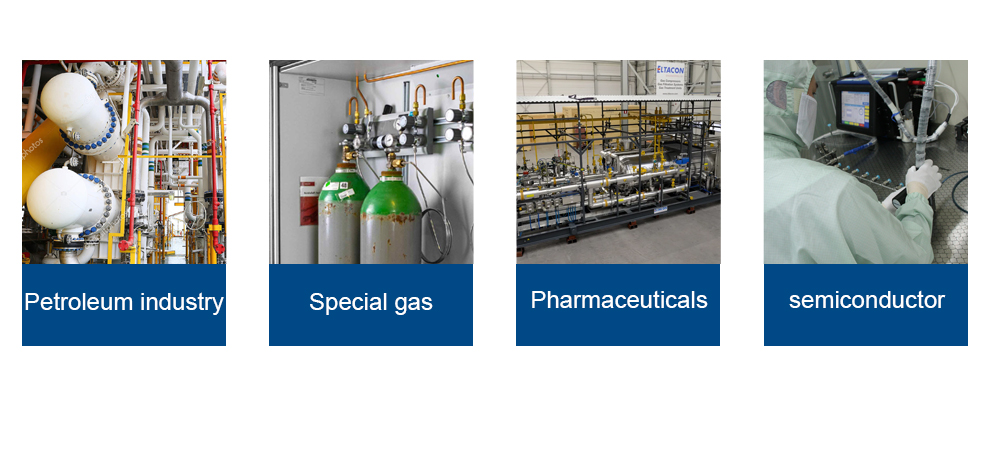

Applicable scenes

FAQ

Product Tags

R31 pressure regulator

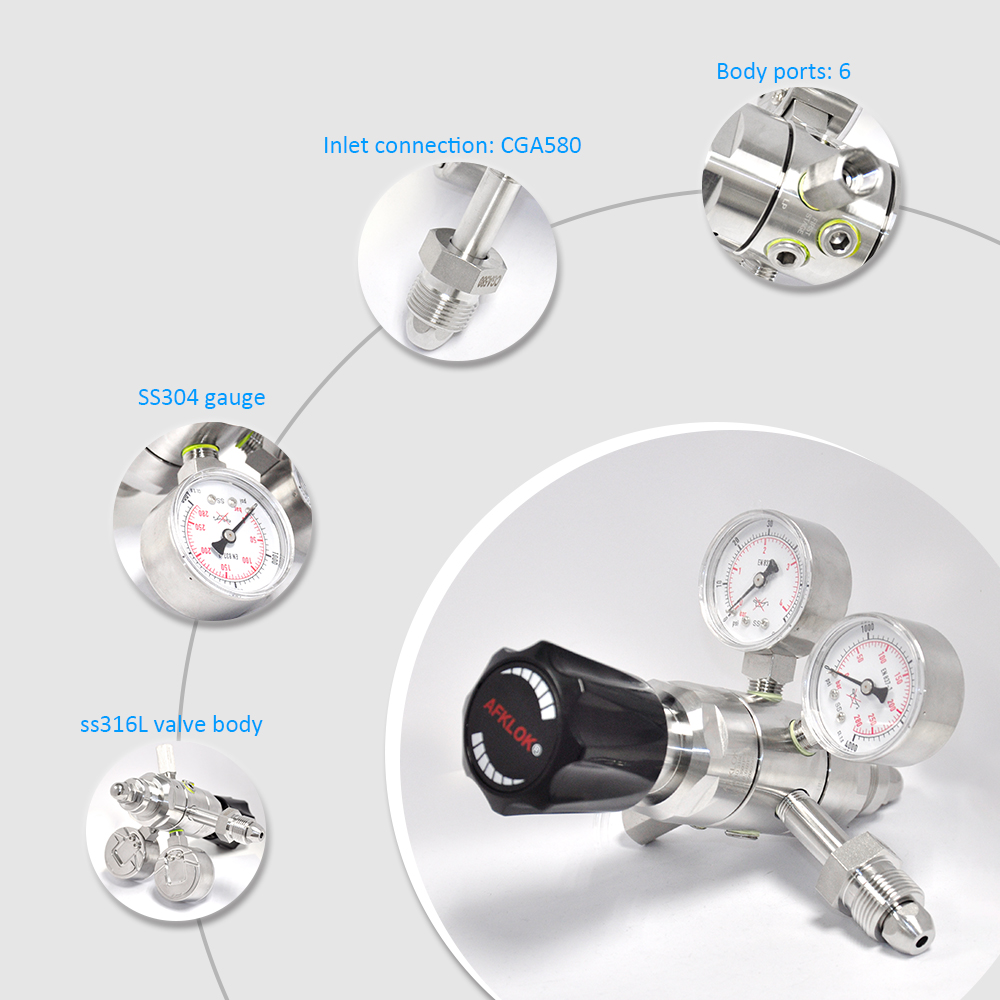

Features of pressure reducer

1. Five hole designof the body

2. Double-stage pressure-reducing structure

3. Metal-to-meta diaphragm seal

4. Body thread: input and output connection 1 / 4NPT (F)

5. Easy to clean internal structure

6. Filter element installed internally

7. Panel mounting and wall mounting available

8.Optional outlet：needle valve，diaphragm valve

Previous: AFK stainless steel 1/8in 1/4in 3/8in 1/2in female branch tees npt thread tube fitting

Next: AFK High Pressure Two Stage Nitrogen Argon co2 Carbon Dioxide Gas Pressure Regulator Stainless Steel 25Mpa OEM CV 0.06

Product parameter of Gas Pressure Regulator

Technical Data

Max inlet pressure	3000，500 psig
Outlet pressure	0~25, 0~50, 0~100, 0~250 psig
Proof pressure	5 times of maximum rated pressure
Working temperature	-20°F-+446°F(29°C-+66°C)
Leakage rate	2×10-8cc/sec He
Cv	0.06
Body Thread	1/4″ NPT ( F )

Material List

1	Body	316L,Brass
2	Bonnet	316L,Brass
3	Diaphragm	316L
4	Strainer	316L(10um)
5	Seat	PCTFE,PTFE,Veapel
6	Spring	316L
7	Stem	316L

Ordeering Information

R31	L	B	G	G	00	00	02	P
Item	Body Materia	BodyHole	Inletpressure	Outlet pressure	Pressuregauge	Inlet size	Outlet size	Options
R31	L:316	M	D:3000psi	G:0-250psig	G:MPa gauge	00:1/4 NPT(F)	00:1/4 NPT(F)	P:panel mounting
	B:Brass	Q	F:500psi	I:0_100psig	P:Psig/bar gauge	01:1/4 NPT(M)	01:1/4 NPT(M)	R:With relief valve
				K:0-50psig	W:No gauge	23:CGA330	10:1/8 OD	N:With needle valve
				L:0-25psig		24:CGA350	11:1/4 OD	D:With diaphragm valve
				Q:30 Hg Vac-30psig		27:CGA580	12:3/8OD
				S:30 Hg Vac-60psig		28:CGA660	15:6mm OD
				T:30 Hg Vac-100psig		30:CGA590	16:8mm OD
				U:30 Hg Vac-200psig		52:G5/8-RH(F)	74:M8X1-RH(M)
						63:W21.8-14H(F)
						64:W21.8-14LH(F)

There are more than 30 kinds of special gases commonly used in the electronics industry, which can be classified into non-flammable gases, combustible gases, oxidizing gases, corrosive gases, toxic gases, etc. according to the nature of danger. They can be divided into compressed gas, liquefied gas and cryogenic gas according to their physical forms.

The application areas of special gases are mainly in the four fields of integrated circuit manufacturing, solar cell, compound semiconductor, liquid crystal display and optical fiber production, among which the main application is in the production of semiconductor integrated circuits. There are more than 110 kinds of special gases used in the semiconductor industry, of which 20-30 kinds are commonly used.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7days if the goods are in stock. or it is 15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
