CGA Gas Cylinder Connector CGA320 CGA330 CGACGA540 CG580 CGA590 CGA660

Short Description:

  • CGA series
  • It is used for other high purity, special gases and medical gases
  • Working pressure up to 3500psig (241bar)
  • Stainless steel 316


Product Detail

Video

Parameters

FAQ

Product Tags

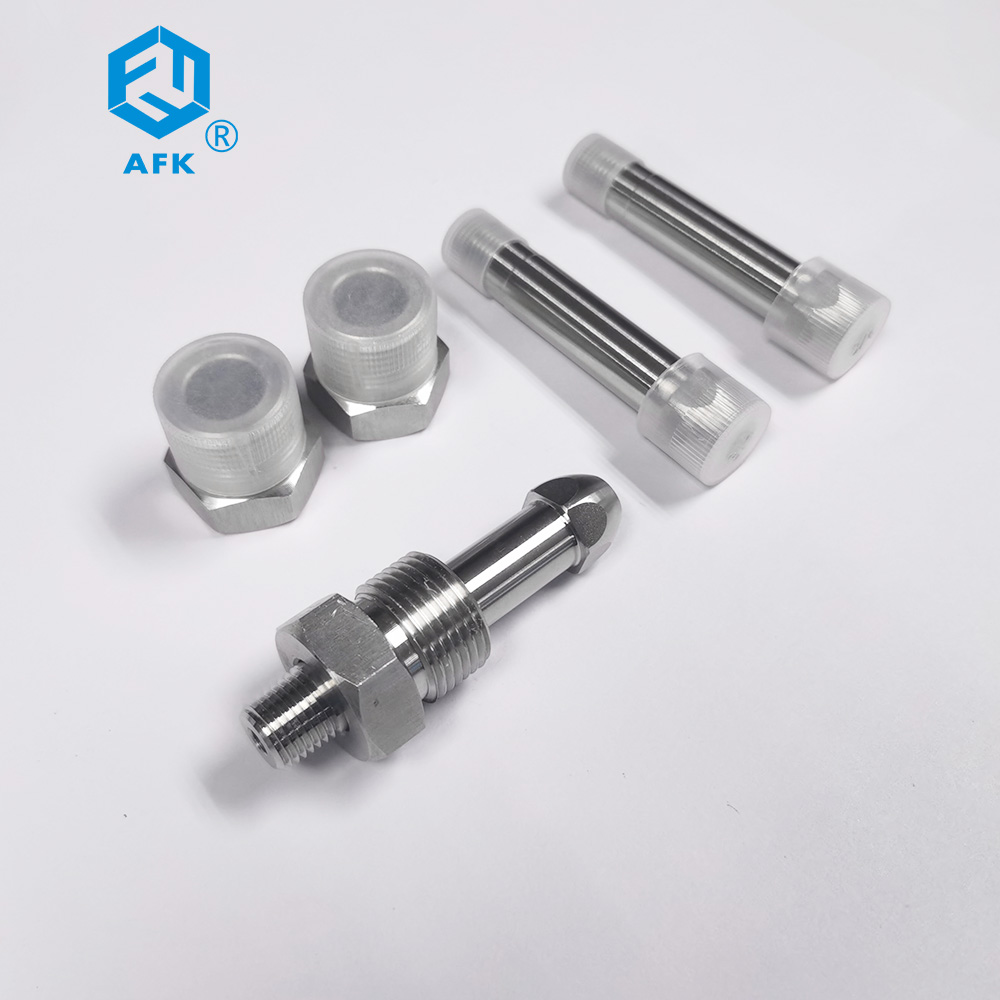

CGA Cylinder Joint

CGA series of  CGA510
Used for high purity gas, special gas and medical gas
Working pressure up to 3500psig (241bar)
The material is brass and 316 stainless steel

3

  • Previous:
  • Next:

  • Ordering Information

    Material S Single melting 316L stainless steel
    D Double melting 316L stainless steel
    3S 303 stainless steel
    SS 303 stainless steel silver plated
    N Nickel 200
    PC PCTFE
    T PTFE
    AL Aluminum
    Basic Series 10 Nipples
    20 Nuts
    30 Gaskets & washers
    40 Inlet connection*Nipple,nut and gasket*Nipple,nut and washer
    50 Outlet blank plugs
    60 Outlet blank caps
    70 Outlet adapters
    80 Cylinder valve outlet plugs*Chain and ring included
    90 Cylinder valve outlet caps*Chain ,ring and gasket included*Chain,ring and polyethylene disc included
    100 Complete pigtail connection*Nipple,nut,gasket and blank plug*Nipple,nut,washer and blank plug or cap
    CGA DISS/CGA/DIN/JIS Number reference gas connection assignment table
    End connection size 2 1/8″
    4 1/4″
    Cleanliness blank 3.0μm
    P 0.7μm
    Gasket Material N Nickel 200
    PC PCTFE
    T PTFE
    AL Aluminium
    PD Polyethylene disc
    Connection Type TW Auto Tube Weld
    VM MFS male
    NM NPT male
    NF NPT female

    CGA DISS Series

    CGA DISS Ref.DWGInletConnection End Connection Assembly Part Number HOverall Length Nipple Part Number Nut Part Number FHex Flat washer Part Number(PCTFE) washer Part Number(PCTFE)
    510 Fig.2 1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male  □-40-510-4TW-□□-40-510-4VW-□□-40-510-4NW-□ 2-5/82-3/42-1/2 □-40-510-4TW-□□-40-510-4VW-□□-40-510-4NW-□  3S-20-510  1-1/8  -  -
    540 Fig.3 1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-540-4TW-□□-40-540-4VW-□□-40-540-4NW-□  2-1/42-1/43 □-40-540-4TW-□□-40-540-4VW-□□-40-540-4NW-□  3S-20-540  1-1/8  -  -
    580 Fig.2 1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-580-4TW-□□-40-580-4VW-□□-40-580-4NW-□  2-5/82-3/43-1/2 □-40-510-4TW-□□-40-510-4VW-□□-40-510-4NW-□  3S-20-580  1-1/8  -  -
    590 Fig.2 1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-590-4TW-□□-40-590-4VW-□□-40-590-4NW-□ 2-1/22-3/43-1/2 □-40-510-4TW-□□-40-510-4VW-□□-40-510-4NW-□  3S-20-590  1-1/8  -  -
    660 Fig.1 1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-660-4TW-□-□□-40-660-4VW-□-□□-40-660-4NW-□-□  2-3/161-7/82-1/2 □-40-660-4TW-□□-40-660-4VW-□□-40-660-4NW-□  3S-20-660  1-1/4   PC-30-660  T-30-660
    670 Fig.1  1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-670-4TW-□-□□-40-670-4VW-□-□□-40-670-4NW-□-□ 2-3/161-7/82-1/2 □-40-660-4TW-□□-40-660-4VW-□□-40-660-4NW-□  3S-20-670  1-1/4  PC-30-660  T-30-660
    678 Fig.1  1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-678-4TW-□-□□-40-678-4VW-□-□□-40-678-4NW-□-□ 2-1/222-1/2 □-40-678-4TW-□□-40-678-4VW-□□-40-678-4NW-□  3S-20-678  1-1/4  PC-30-678  T-30-678
    679 Fig.1  1/4″Auto Tube Weld1/4″Faceseal Male1/4″NPT Male □-40-679-4TW-□-□□-40-679-4VW-□-□□-40-679-4NW-□-□ 2-1/223 □-40-679-4TW-□□-40-679-4VW-□□-40-679-4NW-□  3S-20-570  1-1/4  PC-30-679  T-30-679
