AFK 316 Stainless Steel High Pressure 1/4in Vacuum Application Manual Operated Seal Diaphragm Control Valves 150psi
Product Description of 316 Stainless Steel High Pressure 1/4in Vacuum Application Manual Operated Seal Diaphragm Control Valves 150psi
|
WV4H |
|||||||
|
6L |
TW |
4 |
MR4 |
Executive type |
Cleaning process |
||
|
body material |
TW：inch tube SWL Joint |
4:1/4" |
Outlet type |
Outlet size |
handle |
Standard (grade BA) |
|
|
6L：316L SS |
MR：Male thread MCR joint |
Same as entrance |
C：Pneumatic normally closed |
O2：Oxygen cleaning |
|||
|
6LV：316L VAR |
FR： Female thread MCR joint |
O：Pneumatic normally open |
EP：Ultra high purity (EP grade) |
||||
|
6LW：316L VIM-VAR |
TF：inch OD joint |
||||||
|
FNS：NPT Female |
|||||||
| Flow data：Air@ 21℃（70℉） Water@16℃（60℉） | |||
|
1 |
pressure drop of maximum air pressure bar（psig） |
air（I/min） |
water（I/min） |
|
2 |
0.68（10） |
64 |
2.4 |
|
3 |
3.4（50） |
170 |
5.4 |
|
4 |
6.8（100） |
300 |
7.6 |
 |

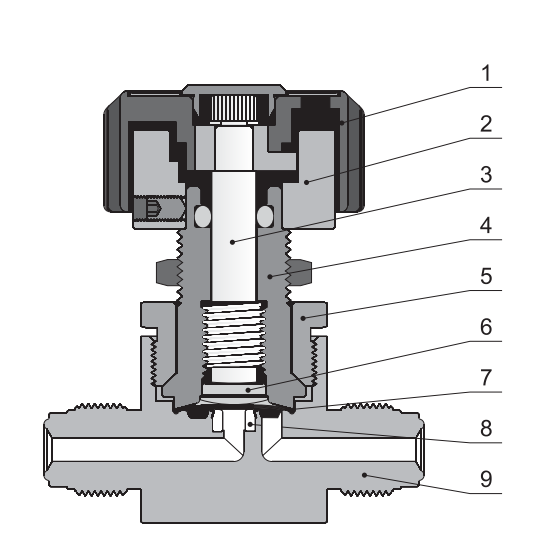

Item |
Part Description |
Material |
|
1 |
handle |
Aluminium |
|
|
2 |
Actuator |
Aluminium |
|
|
3 |
Valve Stem |
304 SS |
|
|
4 |
Bonnet |
S17400 |
|
|
5 |
Bonnet Nut |
316 SS |
|
|
6 |
Button |
Brass |
|
|
7 |
Diaphragm |
Nickel cobalt alloy |
|
|
8 |
Valve Seat |
PCTFE |
|
|
9 |
Valve Body |
316L SS |

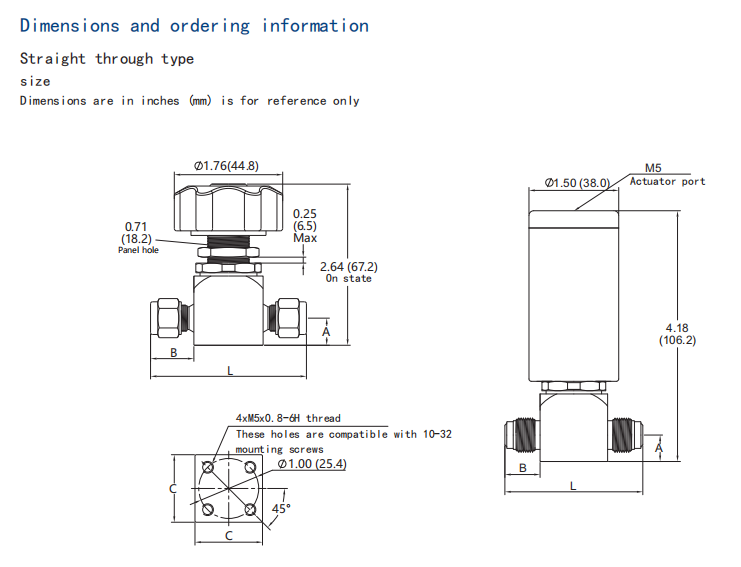

Product Parameter Diaphragm Valve
|
basic order number |
port type and size |
size in.（mm） | |||
|
A |
B |
C |
L |
||
|
WV4H-6L-TW4- |
1/4″-Tube-w |
0.44(11.2) |
0.3(7.6) |
1.12(28.6) |
1.81(45.9) |
|
WV4H-6L-FR4- |
1/4″-FA-MCR |
0.44(11.2) |
0.86(21.8) |
1.12(28.6) |
2.85(72.3) |
|
WV4H-6L-MR4- |
1/4″-MA-MCR1/4 |
0.44(11.2) |
0.58(14.9) |
1.12(28.6) |
2.24(57.0) |
|
WV4H-6L-TF4- |
OD |
0.44(11.2) |
0.70(17.9) |
1.12(28.6) |
2.54(64.4) |

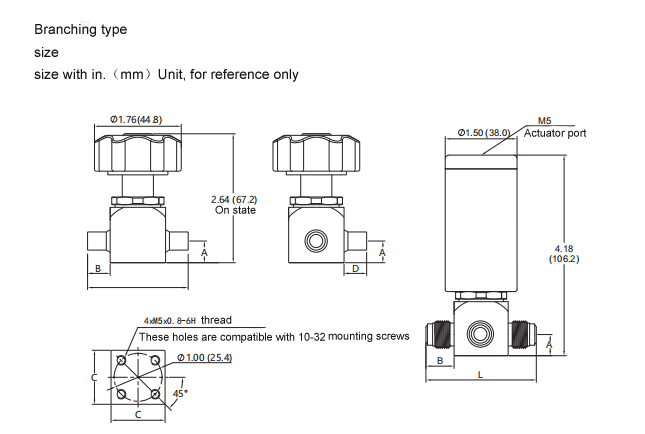

| basic order number | port type and size | size in.（mm） | ||||
|
A |
B |
C |
D |
L |
||
|
WV4H-6L-TW4- |
1/4″-Tube-w |
0.44(11.2) |
0.3(7.6) |
1.12(28.6) |
0.3(7.6) |
1.74(44.2) |
|
WV4H-6L-TF4- |
1/4″OD |
0.44(11.2) |
0.70(17.9) |
1.12(28.6) |
0.3(7.6) |
2.54(64.4) |
|
WV4H-6L-FR4- |
1/4″-FA-MCR |
0.44(11.2) |
0.86(21.8) |
1.12(28.6) |
0.86(21.8) |
2.78(70.6) |
|
WV4H-6L-MR4- |
1/4″-MA-MCR1/4 |
0.44(11.2) |
0.62(15.7) |
1.12(28.6) |
0.62(15.7) |
2.24(57.0) |
