400p Irrigation Solenoid Valve 4 inch AC220V Nylon Material

Short Description:

feature:

1.pilot operated diaphragm structure,nylon reinforce

2.double filtration to protect solenoid core

3.water proof sealing coil

4.close slowfly function to prevent the water hammer






Product Detail

parameters

Applications

FAQ

Product Tags

400P Solenoid Valve Product Parameter

Material

1 Body Reinforced nylon
2 Sealring NBR
3 The movable iron core Stainless steel 430F
4 The static iron core Stainless steel 430F
5 Springs SUS304
6 Shading coil red copper

Application:

It is one of the most widely used electromagnetic valves in garden irrigation at present. It is used for large-area lawn, stadium, agriculture, industrial and mining dust removal and water treatment equipment.

1 Medium Water
2 Temp  Water Temp≤53℃,Surrounding Temp≤80℃
3 pressure 0.1-1.0mpa
4 flow 300P≤5-60m³/h,400P≤5-120m³/h
5 port size 3BSP"and 4BSP"
6 port thread female G,Flange
7 Orifice DN80 DN100
8 Voltage AC220V/AC110V/AC24V,50/60HZ DC24V/DC12V/DC9V DCLatching



type size(mm)
Length Width  Height
300PH 308 160 255
400PH 412 238 335

Electromagnetic head

Electrical parameter of AC coil

AC coil
Voltage Power  Starting Current Holding Current Coil impendance(20℃)
AC24V 6.72W 0.41A  0.28A  30Ω
AC110V 3W 0.072A  0.049A  840Ω
AC220V 3W 0.037A 0.025A 2.73K Ω

Electrical parameter of DC coil

DC coil
Voltage Power Starting Current Holding Current Coil impendance(20℃)
DC9V 3.6W 560mA 400mA 24Ω
DC12V 3.6W 420mA 300mA 41Ω
DC24V 3.6W 252mA 180mA 130Ω



Electrical parameter of DC lacthing coil with pulse

dc latching

Voltage range:9-20VDC

Capacitance required:4700u

Coil resistance:6Ω

Coil inductance:12mH

Pulse width:20-500mSec

Work Mode:+red&-black valve core lock position(valve opening) -red&+black valve core unlock position(valve opening)


  • Previous:
  • Next:

  • Electromagnetic head

    Electrical parameter of AC coil

    AC-coil

    Voltage Power  Starting Current Holding Current Coil impendance(20℃)
    AC24V 6.72W 0.41A  0.28A  30Ω
    AC110V 3W 0.072A  0.049A  840Ω
    AC220V 3W 0.037A 0.025A 2.73K Ω

    Electrical parameter of DC coil

    DC-coil

    Voltage Power Starting Current Holding Current Coil impendance(20℃)
    DC9V 3.6W 560mA 400mA 24Ω
    DC12V 3.6W 420mA 300mA 41Ω
    DC24V 3.6W 252mA 180mA 130Ω

    Electrical parameter of DC lacthing coil with pulse

    dc-latching

    Voltage range:9-20VDC

    Capacitance required:4700u

    Coil resistance:6Ω

    Coil inductance:12mH

    Pulse width:20-500mSec

    Work Mode:+red&-black valve core lock position(valve opening) -red&+black valve core unlock position(valve opening)



    It plays an indispensable role in water saving irrigation and reducing the labour intensity of garden workers. Solenoid valves are widely used in the field of water-saving irrigation, as a kind of water-saving irrigation control equipment, irrigation solenoid valve is the common state control equipment of self-control sprinkler system.

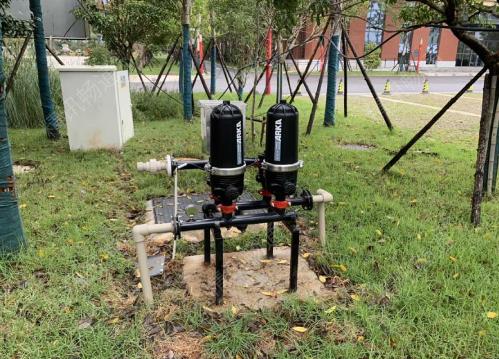

    绿化 应用场景
