Wall Mounted Low Pressure Line Pressure Regulator

Short Description:

R11 Series stainless steel pressure regulator is Single-stage diaphragm, vacuum structure stainless diaphragm output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc..

Send email to us

Product Detail

Video

Parameters

Ordering Information

Applicable scenes

Packing & Delivery

RFQ

Product Tags

Product Description of Pressure Regulator Stainless Steel

R11 Series stainless steel pressure regulator is Single stage diaphragm, vacuum structure Stainless diaphragmoutput. It has piston pressure reducing structure, constant outlet pressure，mainly used for high input pressure,suitable for purified gas, standard gas, corrosive gas etc.

Our pressure reducers can be used for a variety of special gases. When you purchase, as long as you tell the customer service in advance which gases to use, we will provide products according to your needs and attach gas labels

Previous: Single Stage CO2 Argon 3/4 inch High Flow Regulator

Next: Single Stage Changeover System Special Manifold Block Gas Pressure Regulator Gas Regulator Panel System

Specification of Cylinder Gas Pressure Regulator

Material List
1	Body	SS316L, brass, nickel plated brass ( Weigh :0.9kg)
2	Cover	SS316L, brass, nickel plated brass
3	Diaphragm	SS316L
4	Strainer	SS316L(10um)
5	Valve Seat	PCTFE,PTFE,Vespel
6	Spring	SS316L
7	Plunger Valve Core	SS316L

Technical Data
1	Maximun Input Pressure	500,3000 psig
2	Output Pressure Range	0~25, 0~50, 0~100, 0~250, 0~500 psig
3	Safety Testing Pressure	1.5 times of maximum input pressure
4	Working Temperature	-40°F~ +165°F (-40°C~ +74°C )
5	Leakage Rate	2×10-8 atm cc/sec He
6	CV Value	0.08

ORDERING INFORMATION

R11	L	B	D	F	G	00	00	P
Item	Body Materia	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	mark
R11	L:316	A	D:3000 psi	F:0-500 psi	G:MPa gauge	00:1/4 ” NPT (F)	00: 1/4 ” NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250 psi		01:1/4 ” NPT (M)	01: 1/4 ” NPT(M)	N:Needle valve
		D	F:500 psi	l:0-100 psi	P:Psig/bar gauge	23: CGA330	10:1/8 ” OD	N:Needle valve
		G		K:0-50 psi		24: CGA350	11:1/4 ” OD	D:Diaphragm valve
		J		L:0-25 psi	W:No gauge	28: CGA660	12:3/8 ” OD
		M				28: CGA660	15:6mm OD
						30: CGA590	16:8mm OD
						52: G5/8 “-RH(F)
						63: W21.8-14H(F)
						64: W21.8-14LH(F)

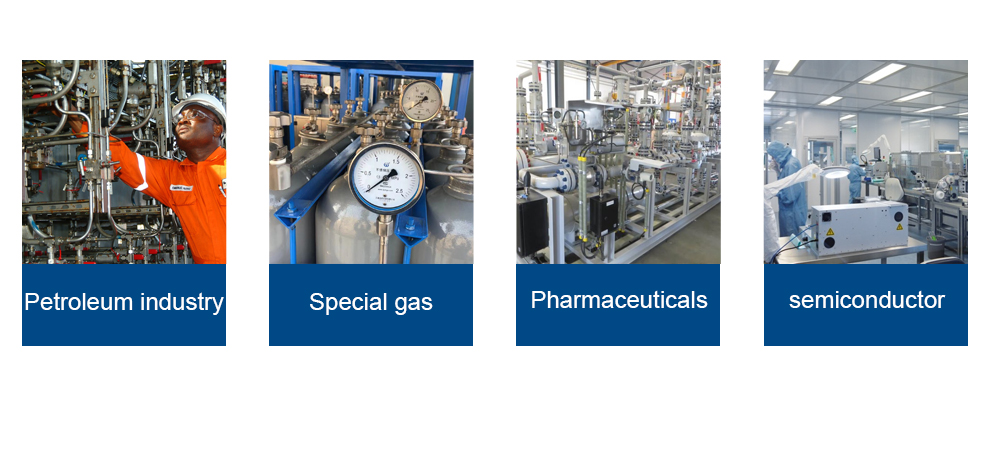

In integrated circuit manufacturing applications, they include integrated circuit chip manufacturing, chemical vapor deposition and gas applications, etching and gas applications, doping and gas applications;

The boxes of the reducer connector solenoid valve and valve products are customized, and the boxes are usually filled with tape. After wrapping a layer of tape on the outside, the boxes will be fixed with a layer of tensile film to prevent damage. The logistics are normally federal, UPS, etc. If you need to use the designated logistics, you can communicate with the customer service
