250 psi Piston Brass High Flow Nitrogen Pressure Regulator

Short Description:



R96 series pistion pressure regulator,  output stable, high flow, safety  which is designed for high pressure and high flow and suitable  for industry and lab.


  • :
  • Product Detail

    Video

    Product Parameters

    Ordering Information

    Application

    Product Tags

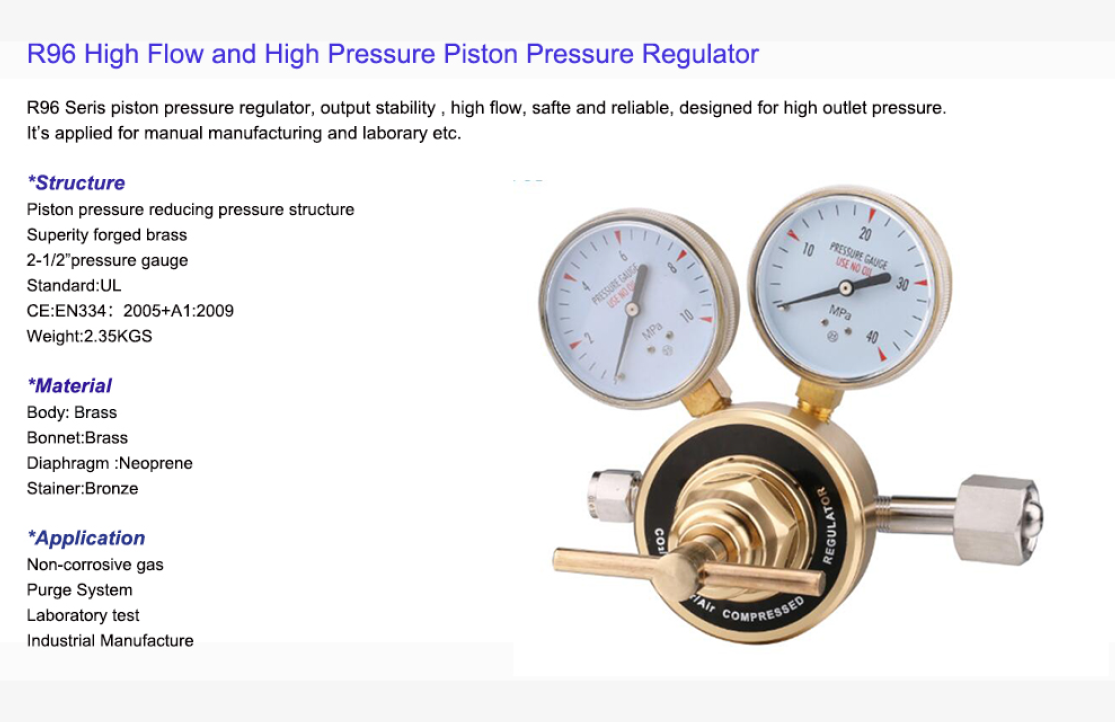

    R96 Seris piston piston pressure regulator,output stability,high flow,safte and reliable,designed for high outlet pressure.It's applied for manual manufacturing and etc.

    pressure regulator


  • Previous:
  • Next:

  • Structure

    Piston pressure reducing pressure

    Structure superity forged brass

    2-1/2”pressure gauge

    Standard:UL

    CE:EN334:2005+A1:2009

    Wieght:2.35kg

    Material

    Body:brass

    Bonnet:brass

    Diaphragm:neoprene

    Stainer:bronze

    Application

    Non-corrosive gas

    Purge System

    Laboratory test

    Industrial Manufacture

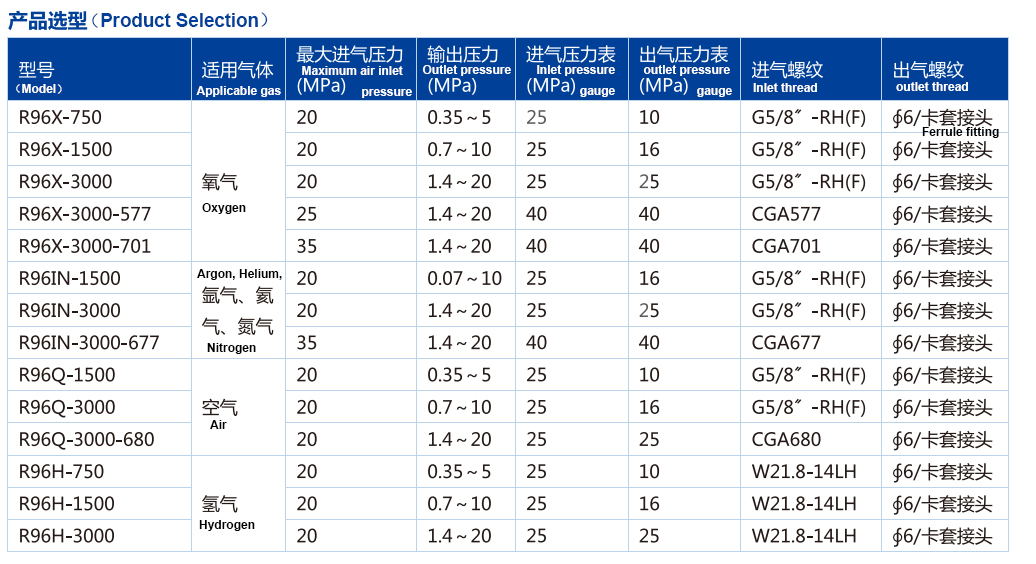

    订购型号

    12Is the use of control valve body of the opening and closing member to regulate the flow of the medium, the pressure of the medium will be reduced, while the role of the pressure after the valve to adjust the opening and closing member to keep the pressure after the valve within a certain range, and in the valve body or after the valve sprayed into the cooling water, the temperature of the medium will be reduced, this valve is called pressure reduction temperature reduction valve. The characteristics of this valve is to keep the outlet pressure and temperature value within a certain range under the condition of changing inlet pressure. Pressure reducing valve is a necessary accessory for pneumatic control valve, the main role is to depressurize the pressure of the air source and stabilize it to a fixed value, so that the control valve can obtain a stable air source power for regulation and control. This type of valve in the pipeline should generally be installed horizontally.
