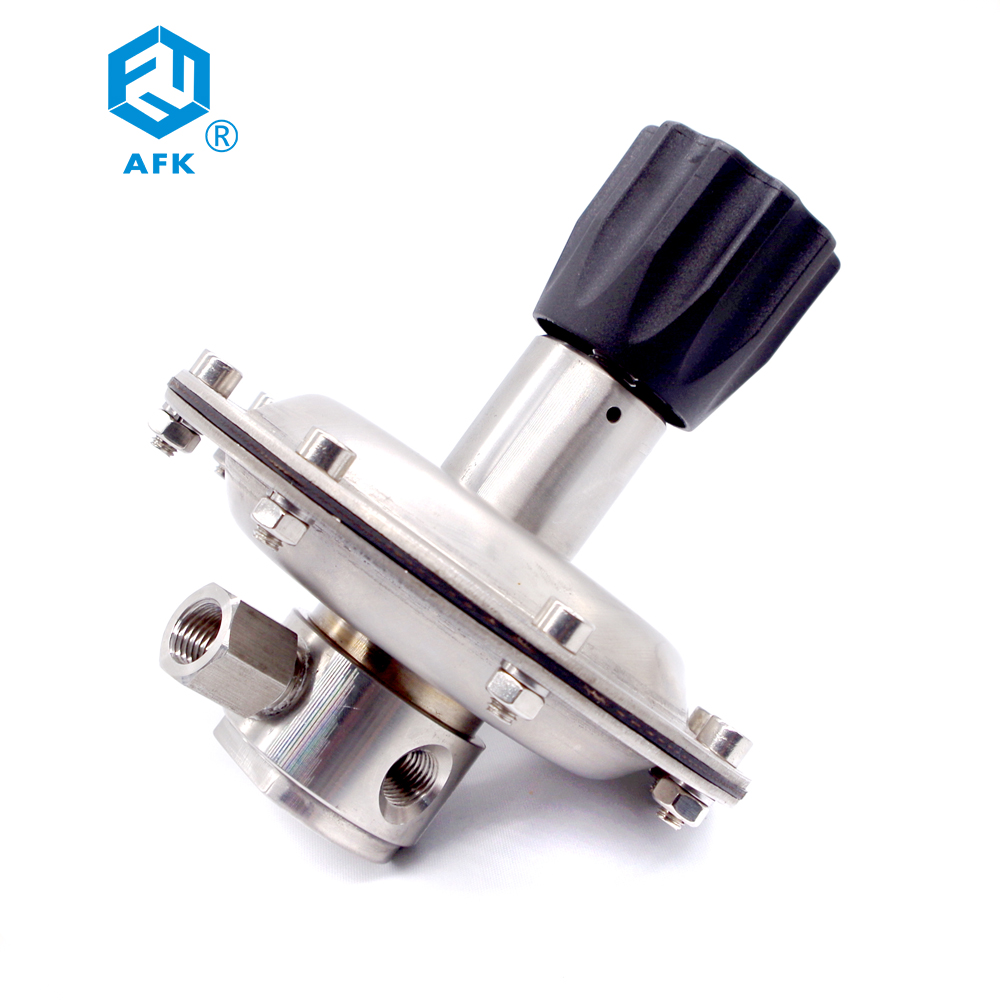

100psi 1/4″NPT F Stainless Steel Single Stage Micro Pressure Regulator

Short Description:

Maximum Inlet Pressure:50, 100psig
Outlet Pressure Ranges: 0-10, 0-25, 0-50, 0-100Kpa
Safety test pressure:1.5 times maximum inlet pressure
Operating Temperature: -40°F to 446°F / -40°c to 230°c
Leakage Rate Against Atmosphere: 2*10-8atm cc/sec he
Cv value: 1.1

Send email to us

Product Detail

Parameters

Ordering Information

Applicable Scenarios

FAQ

Product Tags

Technical parameters

RW14 Series Stainless Steel Micro pressure regulator, single stage diaphragm reducing pressure structure, Rubber diaphragm pressure transmission, designed for micro pressure, stable outlet pressure, applied to medium flow gas system and liquid.

Previous: Newly Arrival China Sanitary Clamp Type Non-Return Stainless Steel Check Valve

Next: Stainless Steel High Pressure Co2 Back Pressure Regulator 6000psi

Maximum Inlet Pressure	50, 100psig
Outlet Pressure Ranges	0-10, 0-25, 0-50, 0-100Kpa
Safety test pressure	1.5 times maximum inlet pressure
Operating Temperature	-40°F to 446°F / -40°c to 230°c
Leakage Rate Against Atmosphere	2*10-8atm cc/sec he
Cv value	1.1

Material of Parts

Body	ss316L
Bonnet	ss31L
Diaphragm	NBR, VITON
Strainer	316L(10mm)
Seat	PCTFE,PTEE, NBR
Spring	ss316L
Plunger valve core	ss316L

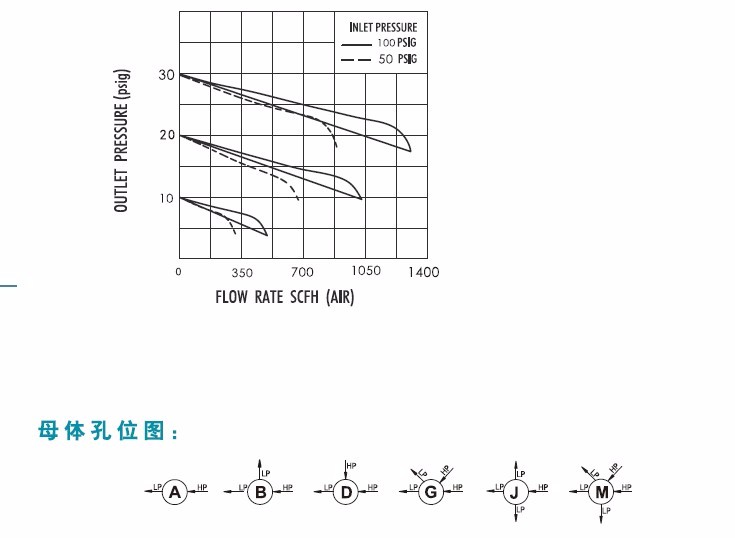

Series	Body material	Body Ports	Inlet pressure	Outlet pressure	Gauge	Inlet connection	Outlet connection	Options
RW14	L	B	D	G	G	00	00	P
	L:316L	A	F:50psi	G:100Kpa	G:Kpa	00: 1/4″NPT F	00: 1/4″NPT F	P: panel
	B:304	B	E:100psi	H:50Kpa	W: no	01:1/4″NPT M	01:1/4″NPT M	R: safety valve
		D	G:200psi	K:25Kpa		02:3/8″NPT F	02:3/8″NPT F
		G		L:10Kpa		03:3/8″NPT M	03:3/8″NPT M
		J				04:1/2″NPT F	04:1/2″NPT F
		M				06:3/4″NPT F	06:3/4″NPT F
						08:1″NPT F	08:1″NPT F

Specialty Gases include rare gases, extremely pure gases and gases of the highest mixing accuracy, which are used in very demanding applications by a wide range of industries.

Many Customers have specific requirements that are not always standard mixtures. For these applications, we are able to provide the Quality Control Solution via our range of NovaCHROM Gas Chromatographs or Gas Analysers depending on the exact requirement.

Q. Are you manufacturer?

A. Yes, we are manufacturer.

Q.What is lead time?

A.3-5days. 7-10 days for 100pcs

Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

Q. Do you have any certificates?

A.We have CE certificate.

Q. What materials do you have?

A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.

Q. What is maximum inlet pressure?

A.3000psi (about 206bar)

Q. How do I confirm inlet connnection for cylidner?

A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also

available e.g CGA540, CGA870 etc.

Q. How many types for connecting cylinder?

A.Down way and side way. (you can choose it)

Q. What is product warranty?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
