200bar High Pressure Changeover Switch Gas Regulator

Features

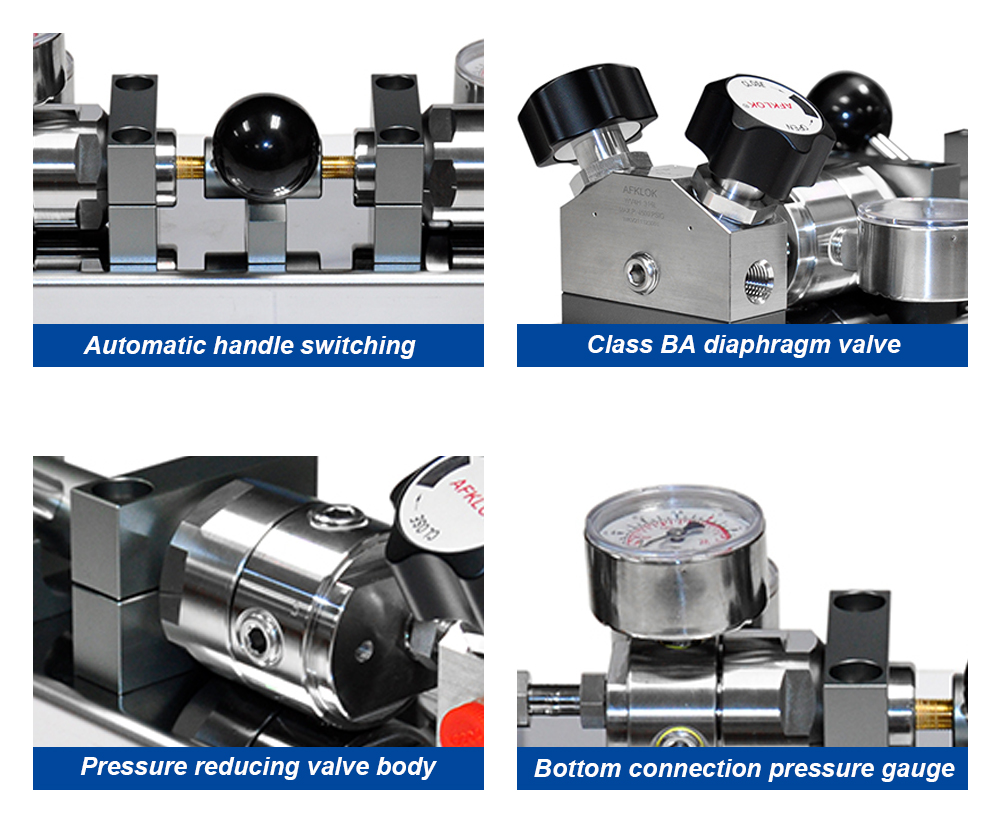

• Suitable for uninterrupted gas supply, with automatic switch to the other end when one end is exhausted, with a priority selection handle for setting the priority gas supply
• The WR11 pressure reducing valve is the prototype valve, and can be used for corrosive and toxic gases.
• WV4C diaphragm valve two-way three-way valve is used as a prototype valve, with fewer links
• 20 micron filter element installed at the inlet
• Oxygen environment application options are available
• Output pressure within a range, factory set
• Translated with www.DeepL.com/Translator (free version)

Technical Data

• Maximum inlet pressure: 3500psig
• Outlet pressure range: 85 to 115, 135 to 165, 185 to 215, 235 to 265
• Internal component materials:
• Valve seat: PCTFE
• Diaphragm: Hastelloy
• Filter element: 316L
• Operating temperature: -40℃～+74℃(-40℉～+165℉)
• Leakage rate (helium):
• Inside the valve: ≤1×10-7 mbar l/s
• Outside the valve: ≤1×10-9 mbar l/s
• Connection: no visible bubbles
• Flow coefficient (Cv):
• Pressure reducing valve: Cv=0.2
• Diaphragm valve: Cv=0.17
• Female ports:
• Inlet: 1/4NPT
• Outlet: 1/4NPT
• Pressure gauge port: 1/4NPT
• Translated with www.DeepL.com/Translator (free version)

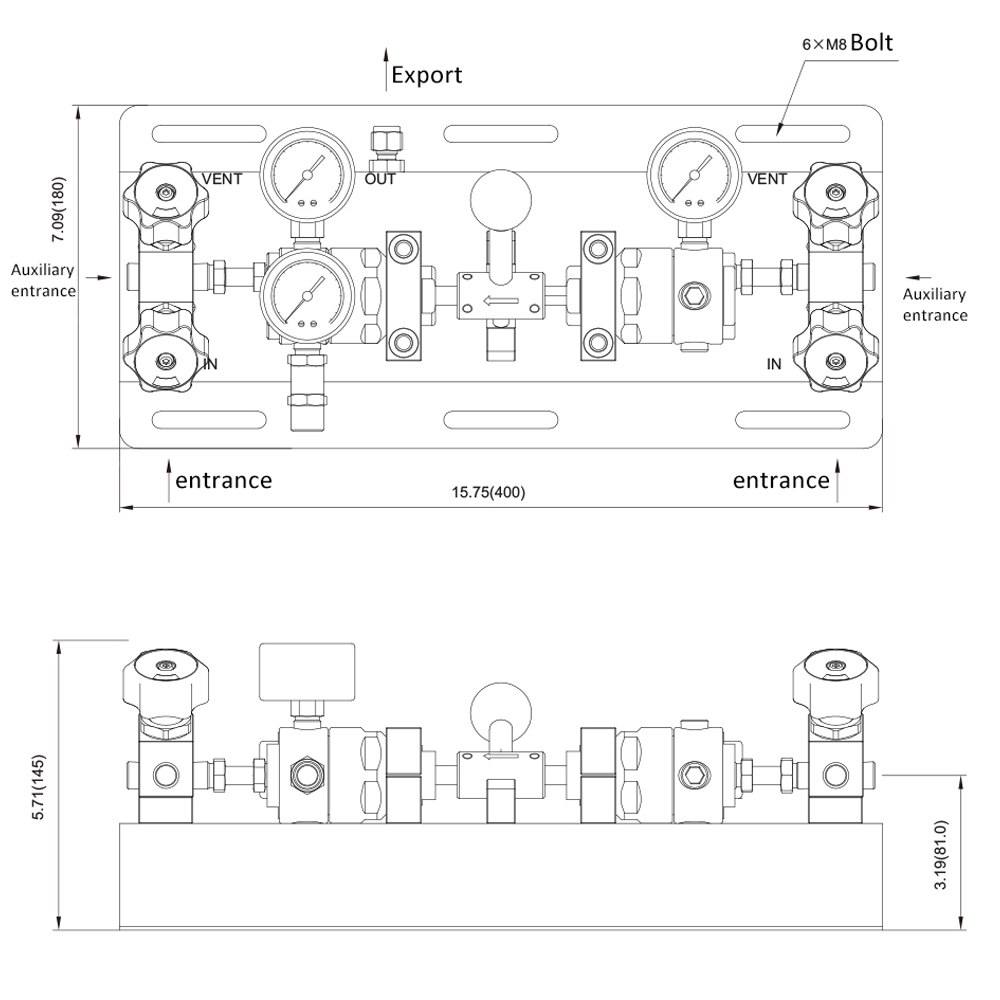

Working Principle

• The WCOS11 series switching device contains two independent pressure reducing valves. By operating the linkage valve lever to adjust the outlet pressure on the left and right sides, i.e., when the left side increases, the right side
• When the right side increases, the left side decreases and the right side supplies air.
• When the supply side is exhausted, the supply is automatically switched to the other side
• By closing the inlet diaphragm valve and opening the pressure relief diaphragm valve, the exhausted side is emptied, and then replaced with a new air supply.
• Priority supply source can be selected by turning the switching handle
• Translated with www.DeepL.com/Translator (free version)

Cleaning process
Standard (WK-BA)
Welded joints are cleaned according to our standard cleaning and packaging specifications, to be ordered without adding a suffix

Cleaning for Oxygen (WK-O2)
Product cleaning and packaging specifications for oxygen environments are available, and this meets ASTM G93 Class C cleanliness requirements; to order, add -O2 to the ordering number
