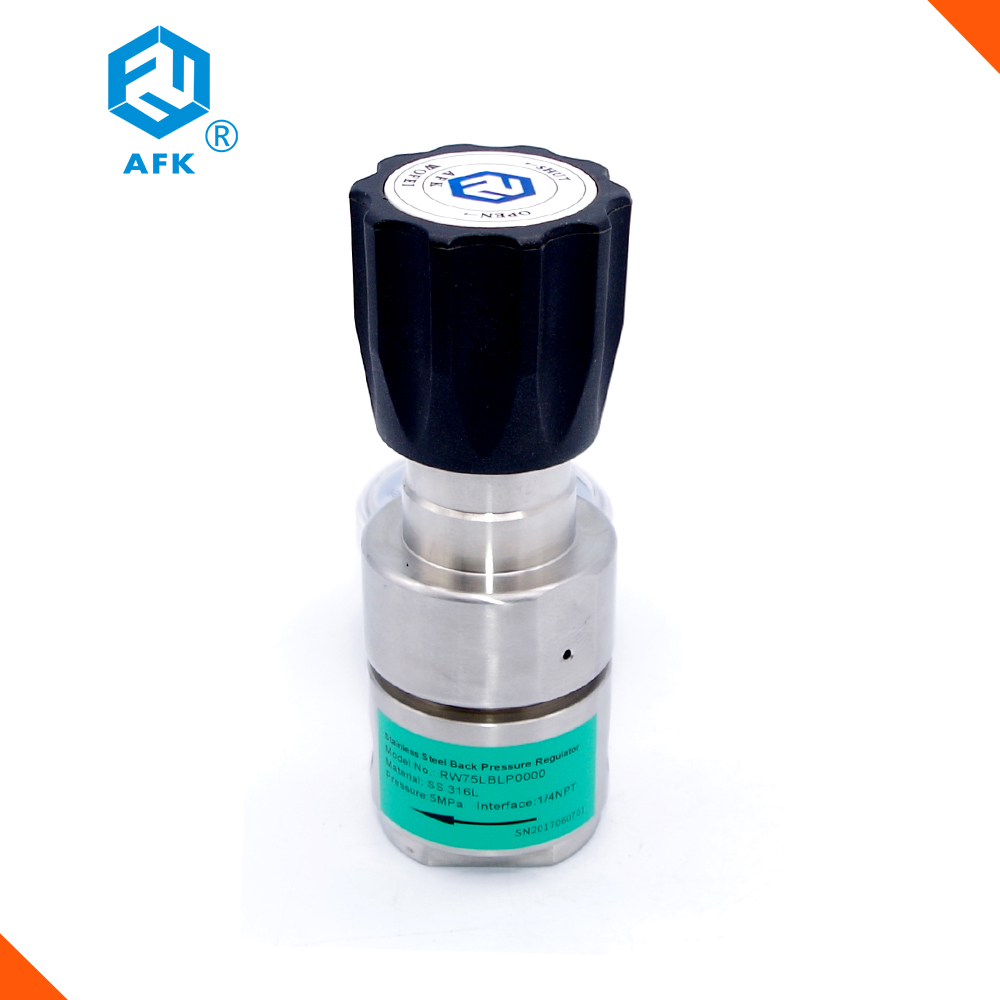

1000psi Medium Pressure Back Stainless Steel Pressure Reducing Valve

Short Description:

RW75 series medium-high back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.


Product Detail

Product Tags

Technical parameters

Maximum Inlet Pressure
2000PSI
Ajustable pressure
0-150,0-300,0-600,0-800,0-1500psig
Safety test pressure
1.5 times maximum inlet pressure
Operating Temperature
-40°F to 165°F / -40°c to 74°c
Leakage Rate
no gas leakage
Cv value
0.08



Material of Parts

Body
316L
Seat
PCTFE, PTFE,Vespel
Bonnet
ss316L, brass
diaphragm
ss31L, ELgiloy

Ordering Information

Once you send the inquiry, pls send order code e.g.RW75-L-B-G-G-00-00-P, or send following information to us:

1.What media is used for?

2. What is atual inlet pressure not pressure gauge range?
3. Material: ss316L or nickel plated brass?
4.Quantity?


Series



Body material

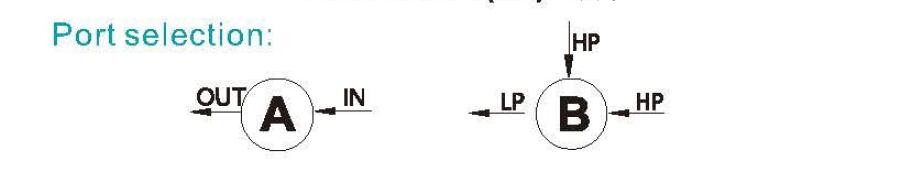

Body ports



Adusting pressure



Gauge



Inlet connection



Outlet connection



Mounting

RW75
L:L:ss316L
A
G:0-150psi
G:Mpa
00:1/4″NPT F
00:1/4″NPT F
P:panel mount
B:brass
A
I:0-300psi
P:PSI/bar
01:1/4″NPT M
01:1/4″NPT M
B
K:0-600psi
W:none
02:3/8″NPT F
02:3/8″NPT F
L:0-800psi
04:1/2″NPT F
04:1/2″NPT F
H:0-1500psi
06:3/4NPT F
06:3/4NPT F
Other connections are available
