R52 250psi Stainless Steel Nitrogen Gas Pressure Regulator
R52 pressure regulator
Features of pressure reducer
The following factors need to be paid attention to when selecting the pressure reducer. Follow up your specific use requirements and use this catalog to select the pressure reducer that matches your parameters. Our standard products are just the beginning of our service. We can modify or design the equipment to solve any problems in the application. For details, please contact our AFK foreign trade product sales representative.
|
Max inlet pressure
|
500, 1500, 3000 psig
|
|
Outlet pressure
|
0~15, 0~25, 0~50, 0~100, 0~250 psig
|
|
Proof pressure
|
1.5 times of maximum rated pressure
|
|
Working temperature
|
-20°F-+150°F(29°C-+66°C)
|
|
Leakage rate
|
2*10-8 atm cc/sec He
|
|
Cv
|
0.15
|
|
Body Thread
|
1/4″ NPT ( F )
|
Material List
|
Body
|
SS316L, Brass
|
|
Roof
|
SS316L, Brass
|
|
Diaphragm
|
SS316L
|
|
Filter mesh
|
316L (10μm)
|
|
Valve seat
|
PCTFE, PTFE, Vaspel
|
|
Spring loaded
|
SS316L
|
|
Stem
|
SS316L
|
 |

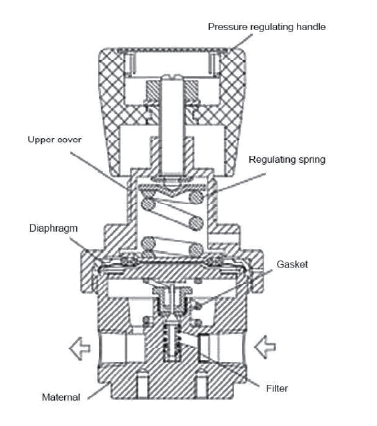

Typical applications | |
| 1 | Gas analysis | |
| 2 | Gas bus-bar | |
| 3 | Petrochemcial industry | |
| 4 | Testing equipment | |
| Main Features | ||
| 1 | Diaphragm pressure-reducing structure | |
| 2 | Body Thread : 1/4″ NPT ( F ) | |
| 3 | Filter mesh inside | |
| 4 | Panel mountable or wall mounted | |
| 5 | Metel-to-metal diaphragm seal | |
Ordeering Information
| R52 | L | B | G | G | 00 | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure | Outlet Pressure |
Pressure Guage | Inlet size |
Outlet size |
Mark |
| R52 | L:316 | A | G:3000 psi | G:0-250psig | G:Mpa guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | P:Panel mounting |
| B:Brass | B | M:1500 psi | I:0-100psig | P:Psig/Bar Guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | R:With relief valve | |
| D | F:500 psi | k:0-50psig | W:No guage | 23:CGA330 | 10:1/8″ OD | N:With Needle valve | ||
| G | L:0-25psig | 24:CGA350 | 11:1/4″ OD | D:With diaphragm valve | ||||
| J | Q:30″Hg Vac-30psig | 27:CGA580 | 12:3/8″ OD | |||||
| M | S:30″Hg Vac-60psig | 28:CGA660 | 15:6mm OD | |||||
| T:30″Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
| U:30″Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
| 63:W21.8-14RH(F) | Other type is available | |||||||
| 64:W21.8-14LH(F) | ||||||||
| Other type is available |

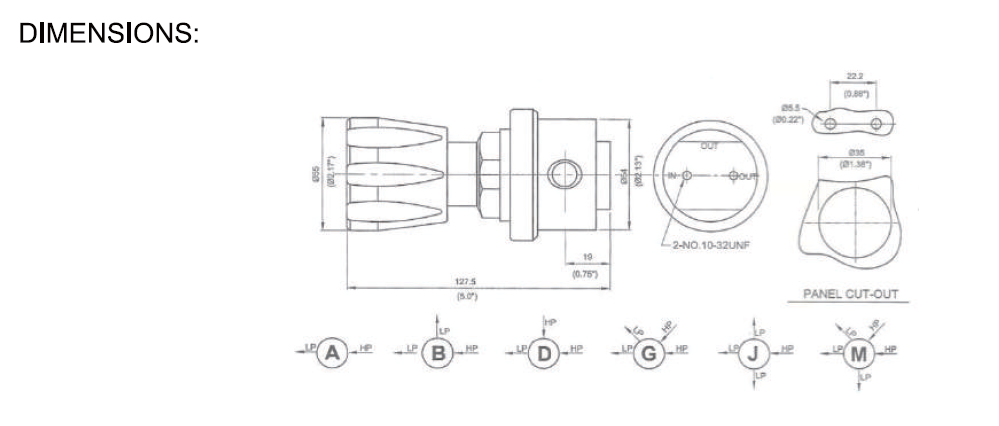

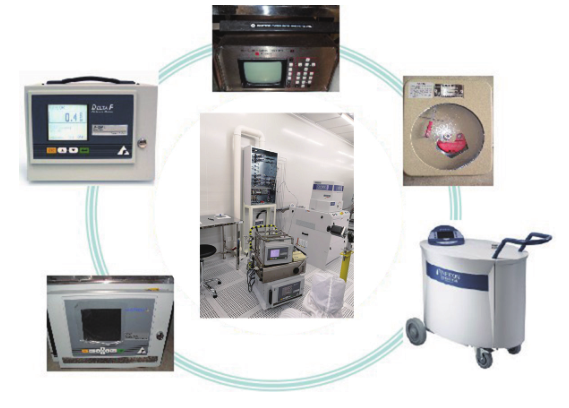

Five tests for high-purity gas pipelines
Five tests for high purity gas pipelines: pressure test, helium leak detection, particle content test, oxygen content test, moisture content test
The main line of the equipment is mainly used for various special gases, and the following tests are required: pressure test, pressure retention test, helium test, particle test, oxygen test, moisture test
