AFK Female Stainless Steel High Pressure Small Square Ball Valve 1 / 4 “, 1 / 2″, 1 / 8 “

Short Description:

Switch, switching, cross conversion flow path
Working pressure up to 3000psig (206bar)
Temperature range from – 53 to 148 ° C (- 65 to 300 ° f)
Environmental and heating process applications
1 / 8 to 3 / 4 inch. And 6 to 12mm termination

Send email to us

Product Detail

Parameters

FAQ

Product Tags

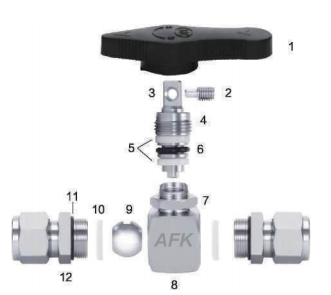

Material Structure of Stainless Steel High Pressure Ball Valve

Item	Part Description	Qty	Material
1	Handle	1	Nylon
2	Handle Set Screw	1	Chrome-Plated Steel
3	Stem	1	SS316/316L
4	Packing Bolt	1	SS316/316L
5	Gland Packing	2	TFM1600
6	Stem O-ring	1	Fluororubber
7	Panel Nut	1	SS304
8	Body	1	SS316/316L
9	Ball	1	SS316/316L
10	Seat	2	TFM1600
11	Body O-ring	2	Fluororubber
12	End Cap	2	SS316/316L

Previous: AFK female 2 way 1 / 4 inch 3000psi stainless steel needle valve

Next: AFK Stainless Steel 316 Instrument Low Pressure 2 Way Ball Valve 1000PSI

Ordering Information of Ball Valve

C-	3	BV-	S6-	02		A-	3P
Classification	Product type	Valve type	Material	Size（Fractional)	Size（Metric)	Connection type	Mxa.Working pressure
C:Valve	3:3PC	BV:2 Way ball valve	S6:SS316	02:1/8″	6:6mm	A:AFK Tube end	3P:3000psig
		BVT:3 Way ball valve	S6L:SS316L	04:1/4″	8:8mm	MR:Male BSPT Thread
				06:3/8″	10:10mm	FR:Femal BSPT Thread
				08:1/2″	12:12mm	MN:Male NPT Thread
				012:3/4″	14:14mm	FN:Femal NPT Thread
					16:16mm
					18:18mm

Type		Conn./size	orifice		dimensions(mm)
Type		inlet/outlet	mm	In.	A	B	C	D	E	F	panel hole size	Max.panel thickness
AFK TUBE END	Fractional	1/8″	5.0	0.19	64.2	32.1	35.0	10.0	55	34	14.0	6.0
		1/4″	5.0	0.19	68.0	34.0	35.0	10.0	55	34	14.0	6.0
		3/8″	5.0	0.19	71.8	35.9	35.0	10.0	55	34	14.0	6.0
		1/2″	10.0	0.39	83.8	41.9	42.3	14.5	75	45	15.8	6.5
		3/4″	10.0	0.39	85.8	42.9	42.3	14.5	75	45	15.8	6.5
	Metric	6mm	5.0	0.19	67.6	33.8	35.0	10.0	55	34	14.0	6.0
		8mm	5.0	0.19	70.0	35.0	35.0	10.0	55	34	14.0	6.0
		10mm	5.0	0.19	72.2	36.1	35.0	10.0	55	34	14.0	6.0
		12mm	10.0	0.39	83.4	41.7	42.3	14.5	75	45	15.8	6.5
		14mm	10.0	0.39	84.8	42.4	42.3	14.5	75	45	15.8	6.5
		18mm	10.0	0.39	84.8	42.4	42.3	14.5	75	45	15.8	6.5
Male Thread	Fractional	1/8″	5.0	0.19	52.4	26.2	35.0	10.0	55	34	14.0	6.0
		1/4″	5.0	0.19	58.4	29.2	35.0	10.0	55	34	14.0	6.0
		3/8″	5.0	0.19	60.4	30.2	35.0	10.0	55	34	14.0	6.5
		1/2″	10.0	0.39	74.0	37.0	42.3	14.5	75	45	15.8	6.0
Female Thread	Fractional	1/8″	5.0	0.19	45.4	22.7	35.0	10.0	55	34	14.0	6.0
		1/4″	5.0	0.19	52.4	26.2	35.0	10.0	55	34	14.0	6.5
		3/8″	10.0	0.39	62.0	31.0	42.3	14.5	75	45	15.8	6.5
		1/2″	10.0	0.39	64.0	32.0	42.3	14.5	75	45	15.8	6.0
