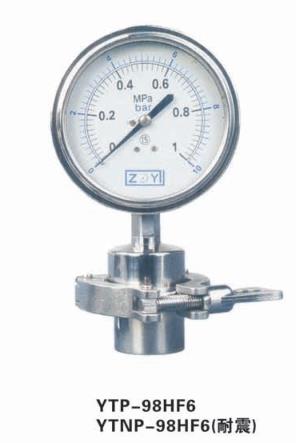

5bar 10 bar Gas Cylinder Pressure Gauge Stainless Steel Hygienic Diaphragm Pressure Gauge Accuracy 2.5% Vibration Resistant

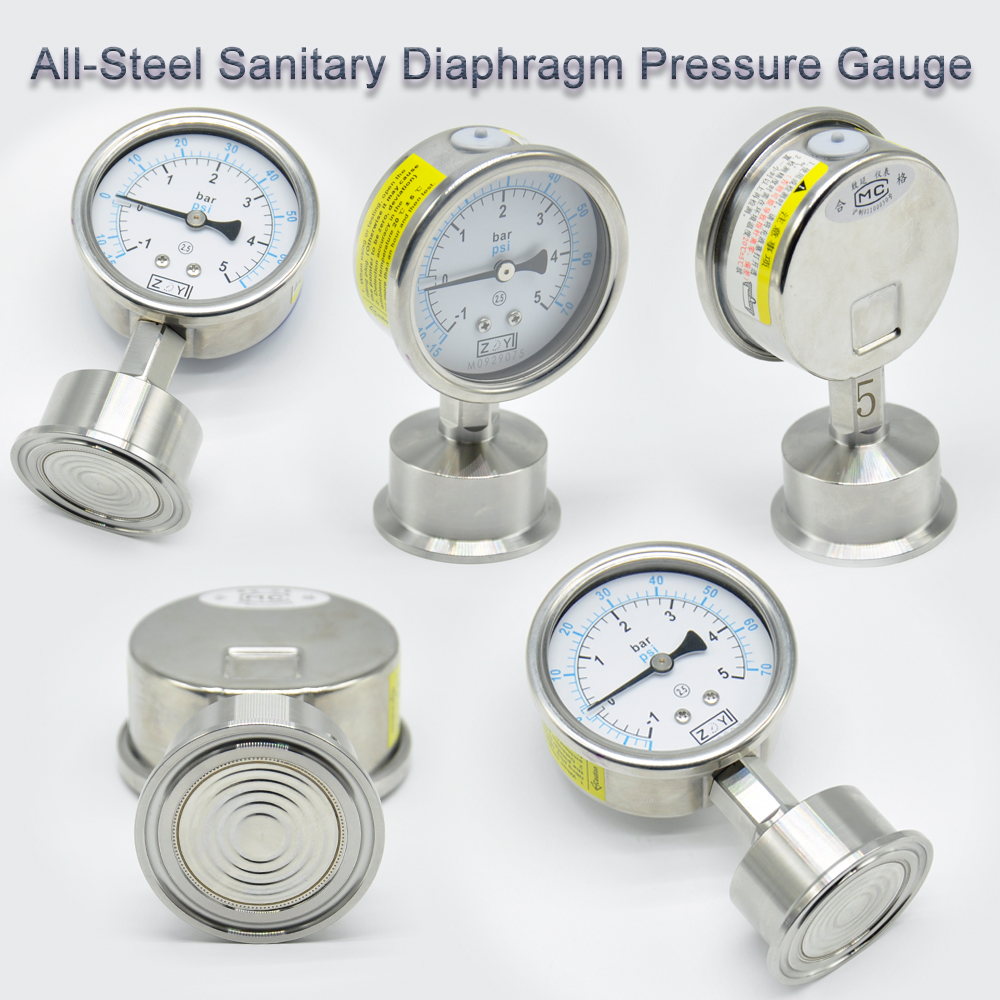

Product Description of Diaphragm Pressure Gauge

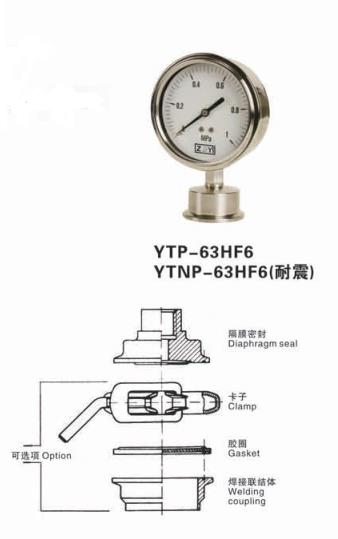

The medium does not want to come into contact with the instrument measuring system, the diaphragm seal does not create dead space or areas that cannot be emptied and is suitable for sanitary systems.

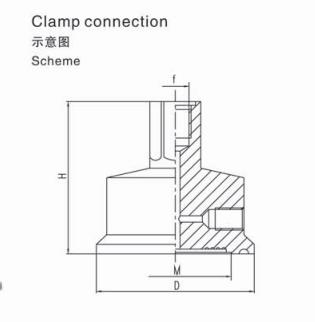

Specification of Diaphragm Pressure Gauge
 |
Diameter:φ63mm,φ98mm Stainless steel case and internal
Accuracy:1%,1.5%,2.5% Liquid-filled as option with type plus “N” |
 |
 |
|
DN |
D(mm) |
H(mm) |
f |
M |
|
1″ |
50.5 |
48 |
3/8-24UNF2B |
35 |
|
1.5″ |
50.5 |
48 |
3/8-24UNF2B |
35 |
|
2″ |
64 |
48 |
3/8-24UNF2B |
50 |
|
2.5″ |
77.5 |
48 |
3/8-24UNF2B |
58 |

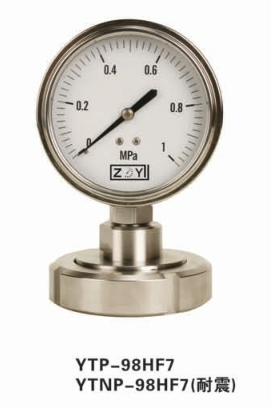

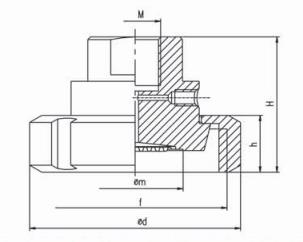

Threaded Process Connection
per Europe standard and viaous standard
DIN:SMS;IDF:APV-RJT
Note:when ordering,please specify detailed standard and dimension.
 |
 |
| DIN 11851 | ||||||
|
DN |
GAMPO SCALA RANGE |
H |
h |
d |
m |
f（DN405） |
|
25 |
0/6-40bar |
44 |
21 |
63 |
20.5 |
Rd52x1/6 |
|
32 |
0-4-40bar |
46 |
21 |
70 |
29 |
Rd58x1/6 |
|
40 |
0/0.25-40bar |
47 |
21 |
78 |
36 |
Rd65x1/6 |
|
50 |
0/1.6-40bar |
47 |
22 |
82 |
50 |
Rd78x1/6 |
| SMS 681 | ||||||
|
DN |
CAMPO SCALA RANGE |
H |
h |
d |
m |
f（DN405） |
|
1-1/2″ |
0/4-40bar |
49.5 |
25 |
74 |
29 |
Rd60x1/6 |
|
2″ |
0/2.5-40bar |
50.5 |
26 |
84 |
36 |
Rd70x1/6 |
