High Pressure 6000psi Gas ss316 Double Ferrules Angle Needle Valve

Short Description:

Features

Forged body available with inline and angle pattern

Body material in Stainless Steel SS316/316L

Max. working pressure to 6000 psig (413 bar) at 37°C (100 °F)

Panel mountable

TFM1600 packing as standard

100% factory tested

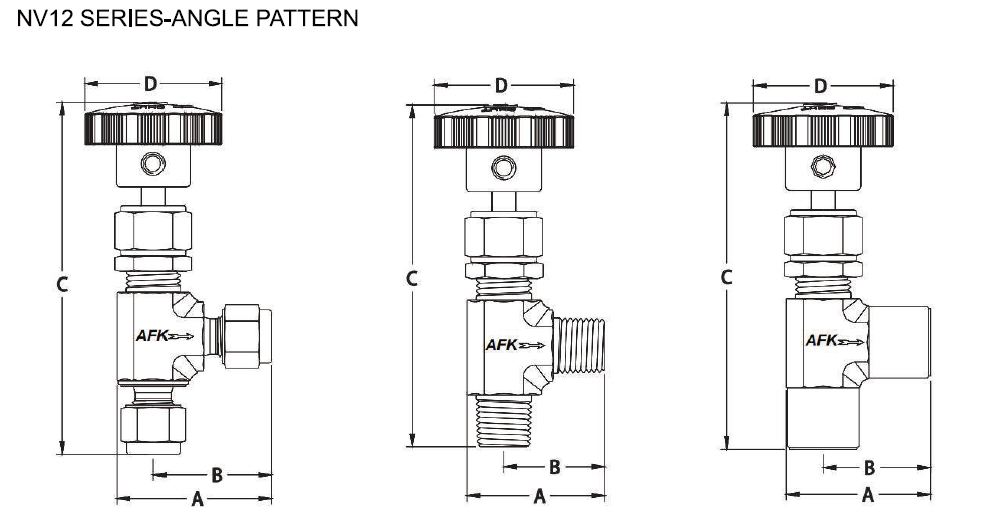

Product Detail

Product Tags

High Pressure 6000psi Gas ss316 Double Ferrules Angle Needle Valve

Type

Conn./Size

Orifice

Dimensions(mm)



Inlet/Outlet

mm

In.

A

B

C

D

AFK TUBE END

Fractional Metric

1/8”

2

0.08

39.2

29.9

74.8

36



1/4”

4

0.16

40.2

30.8

74.8 I

36



3/8”

6

0.24

47.6

35.7

86.5

50



1/2”

6

0.24

49.7

37.9

86.5

50



4 mm

2

0.08

39.4

30.1

74.8

36



6 mm

4

0.16

39.9

30.6

74.8

36



8 mm

4

0.16

40.2

30.8

74.8

36



10 mm

6

0.24

47.7

35.9

86.5

50



12 mm

6

0.24

49.5

37.7

86.5

50

MALE THREAD

Fractional

1/8”

4

0.16

32.3

23.0

74.8

36



1/4”

4

0.16

36.8

27.5

79.3

36

FEMALE THREAD

Fractional

1/8”

4

0.16

32.3

23.0

74.8

36



1/4”

4

0.16

36.8

27.0

79.3

36



3/8”

6

0.24

39.8

28.0

90.0

50

All Dimensions Are In Millimeters Unless Specific.
Dimensions Shown Are For Reference Only And Subject To Change. For Other Connections, Please Contact With AFK Sales Representative.

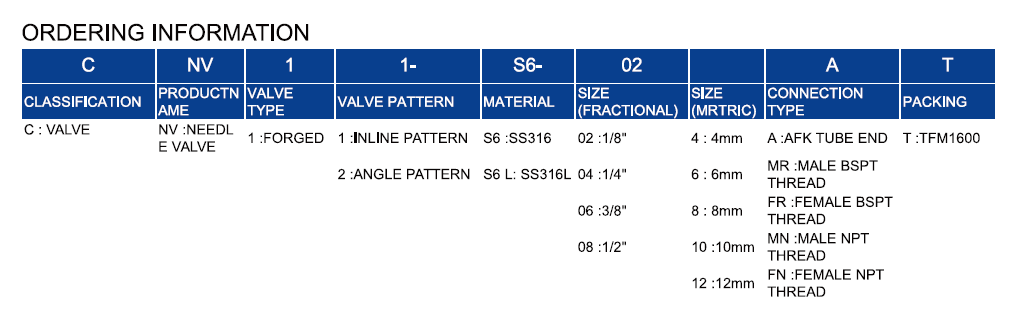

High Pressure 6000psi Gas ss316 Double Ferrules Angle Needle Valve b
