Central Gas Supply in Laboratories High Purity Gases Laboratory Gas Supply Systems

Short Description:

Warranty:1 years
Customized support:OEM, ODM
Place of Origin:Guangdong, China
Brand Name:AFKLOK
Model Number:VMP
Product name:Laboratory Gas Supply Systems
Suitable gas:N2O/SiF4/NF3
Material:Stainless Steel 316L
MOQ:1pcs
Application:Laboratory
Certificate:ISO9001 CE


Product Detail

Product Parameters

Application

FAQ

Product Tags

Open pipeline distribution units used in the delivery of specialty gases are used to supply specialty gases to one or more process equipment, to supply several machines at the same time, to purify, filter and depressurize process gases according to the type of gas, and to meet customer requirements.

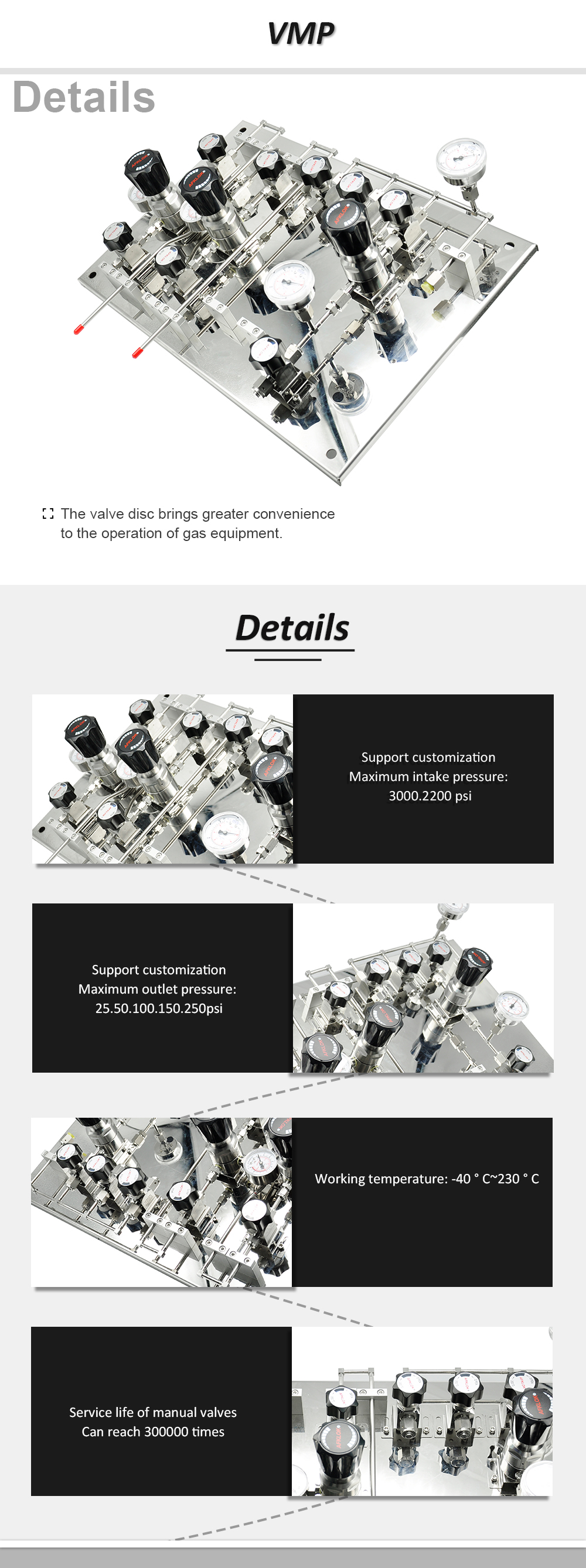

Laughing gas
  • Previous:
  • Next:
    • Laboratory Centralized Gas Supply System

    The proper use of high purity gases requires highest quality in the conception, planning, installation and commissioning of the complete gas supply in laboratories. The execution of the user specific requirements such as pressure stability, flow quantity and the maintenance of the gas composition must mbe guaranteed to the same extent as the prevention of contamination from the gas source until the point of use.

    Industry Applications of Laboratory Gas Supply Systems

    Laboratory gas supply systems (VMP) are widely used in the semiconductor and electronics industry, medical, genetic technology, biopharmaceuticals, scientific research and other fields.

    With more than 10,000 units throughout mainland China with successful experience.
    Mainly used for terminal control of bulk gases.

    The Danger of Laboratory Gases

    1. Some gases are flammable, explosive, toxic and corrosive. Once they leak, they may cause damage to staff and equipment. 2. If multiple gases are used in the same environment, if there are two kinds of gases that will cause a strong chemical reaction such as combustion or explosion to leak at the same time, it may cause injury to staff and equipment. 3. The outlet pressure of most gas cylinders is as high as 15Mpa, which is 150kg/cm2. If the gas cylinder mouth pressure reducing device fails, some parts may be lased out, and the energy will be fatal to the human body or equipment.

    The Characteristics of the Centralized Gas Supply System

    1. Features: The laboratory requires constant carrier gas flow and high gas purity to provide gas with stable value and pressure for the analytical equipment selected by the laboratory.
    2. Economical: Building a centralized gas cylinder room can save limited laboratory space, and there is no need to cut off the gas when replacing the cylinder, ensuring continuous gas supply. Users only need to manage fewer cylinders and pay less cylinder rent because all points of use using the same gas come from the same gas source. This kind of supply method will reduce transportation costs, reduce the amount of remaining gas in the empty cylinders returned to the gas company, and good cylinder management.
    3. Utilization rate: The centralized pipeline supply system can place the gas outlet at the point of use, so that the workplace can be designed more reasonably.
    4. Safety: to ensure the safety of its storage and use. Guarantee analysis and testing personnel from toxic and harmful gases in the experiment.

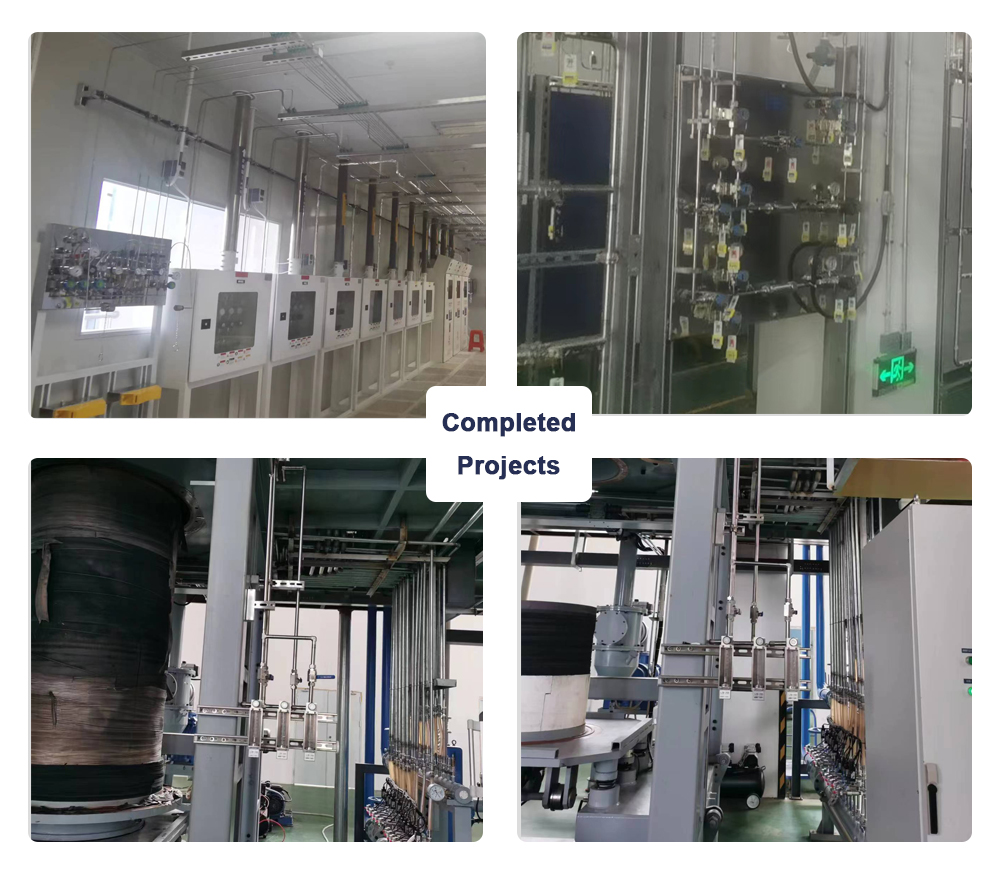

    应用场景

    组合图2

    Q1: Is the flow rate of the pressure reducer adjustable?

    A：Yes, we can adjust it according to your needs and choose the model.

    Q2：What products can you provide?

    A：We can supply pressure reducers (for inert, toxic and corrosive gases), diaphragm valves (Class BA and EP), couplings (VCR and conventional), needle and ball valves and check valves (ferrule, internal, external and G-tooth available), cylinder couplings, etc.

    Q3：Can you provide samples to test? For free?

    A：We can provide free samples, and due to their high value, you should bear the cost.

    Q4：Can you make the products based on our requests, such as connection, thread, pressure and so on?

    A：Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.

    Q5：What payment methods for chose?

    A： For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.

    Q6：How about the lead time?

    A：Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.
