Tube Inset Connects Fractional Tube Stainless Steel Air Compressor Pipe Fittings

Connects Fractional Tube

Installation Notes

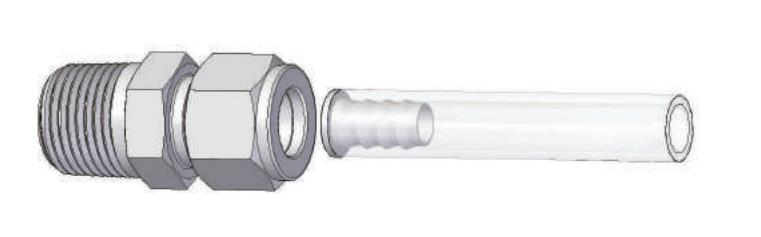

As shoen in the figure below,AFK pipe plugs are used for nylon and  soft plastic pipes.The pipe plug supports the hose from the inside and installs it at the AFK port without collapsing.

1.Fully insert the hose into the AFK pipe plug.

2.Plug it into the AFK port.

3.Tighten the nut by hand

4.Use top drive back pliers or vice to fix,and use a wrench to turn the nut 1-1/4 turn to tighten.

NITE

The 3/16inch AFK heat transfer tube fittings need to be turned 3/4 turn to tighten.

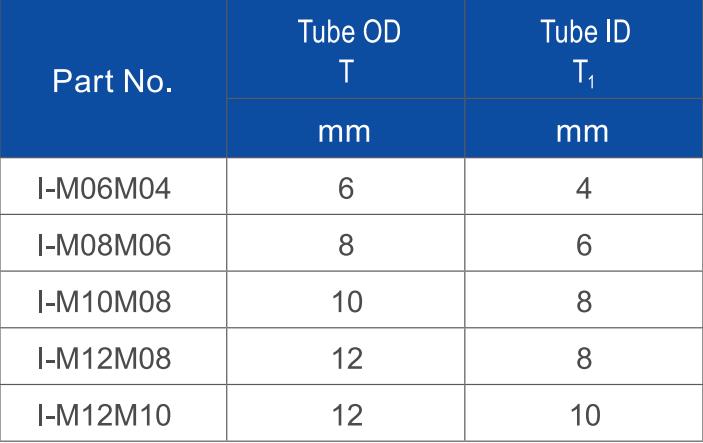

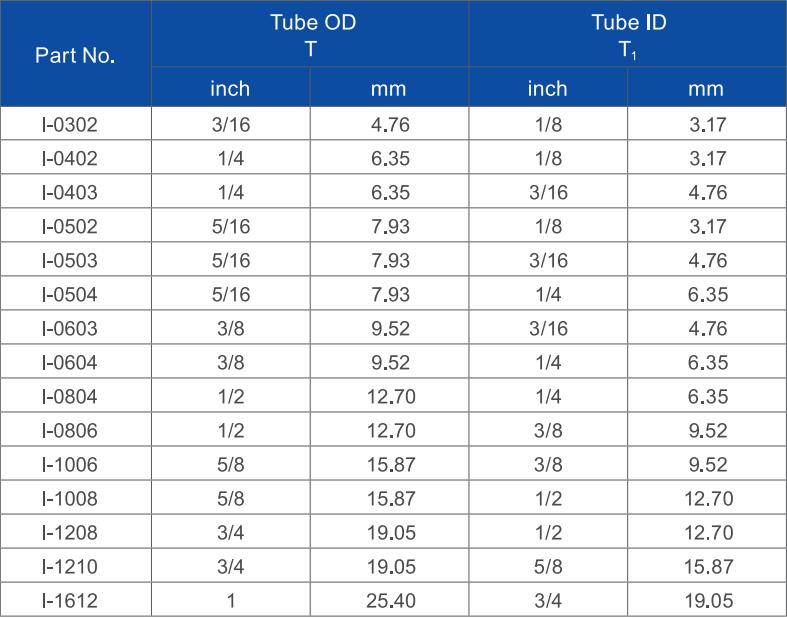

This size is for reference only, subject to possible changes in the actual product

E refers to the smallest opening.F and L are the standard hand-tightened dimensions.
