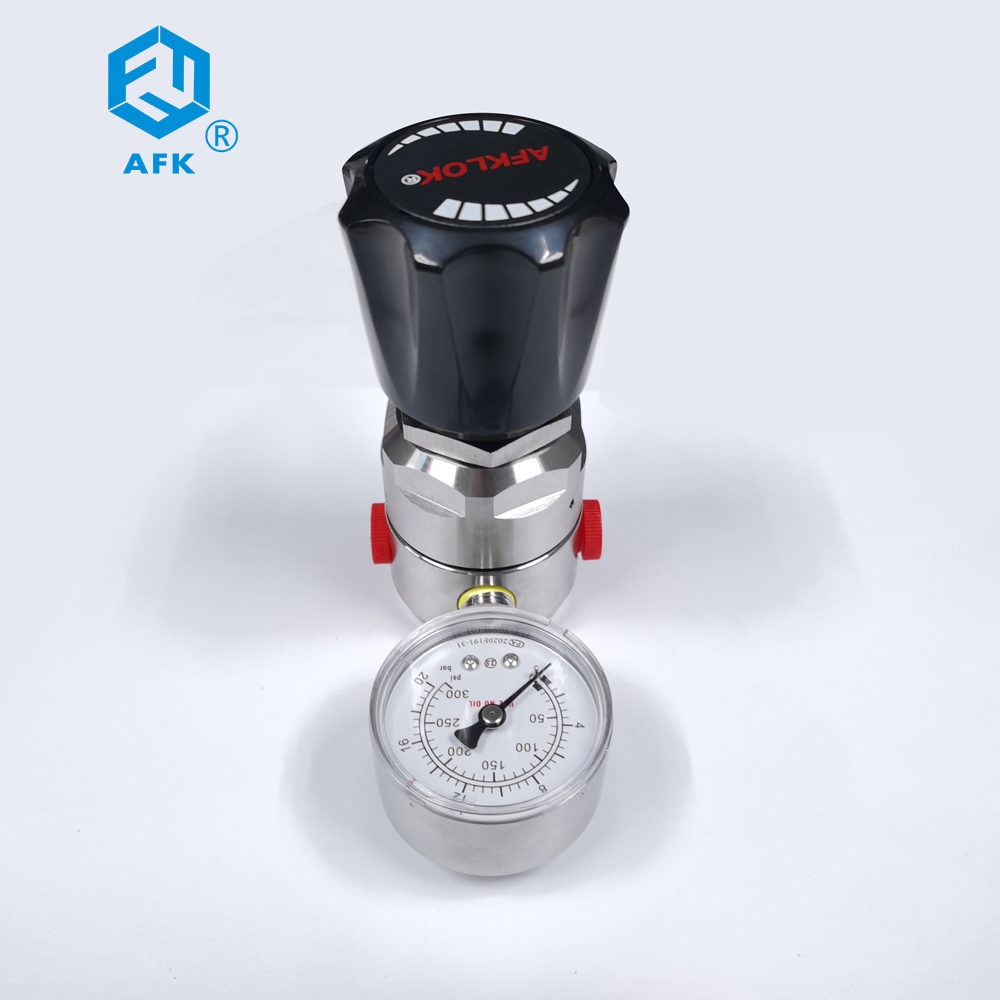

Panel Mounting 3500psi High Pressure Single Stage Reducing Pressure Regulator ss316L
RW11 Pressure Regulator
Features of stainless steel R11 pressure regulator
| 1 | Single Stage Diaphragm Structure |
| 2 | Corrugated film design has excellent sensitivity and life |
| 3 | Can be used for corrosive gas and Toxicity gas |
| 4 | Installed 20um filter element at inlet |
| 5 | Oxygen environment application options |
| 6 | ≤1X10-7 mbar l/s (internal)≤1 X 10-9 mbar l/s (external) |

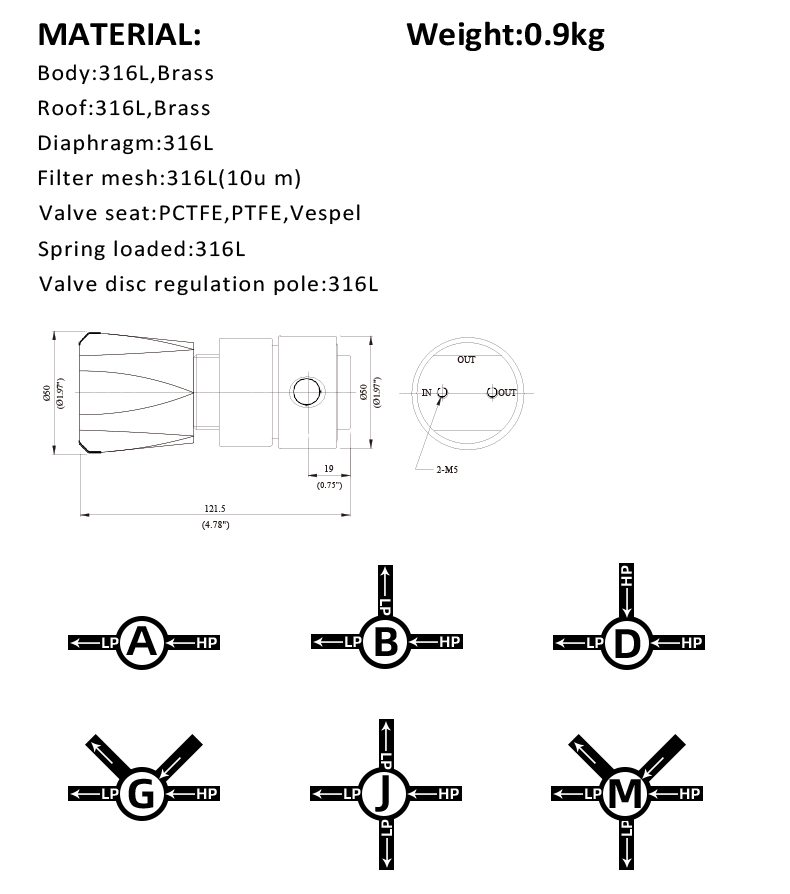

Technical Data
Max Inlet Pressure：600psig, 3500psig
Outlet Pressure Range：0~30, 0~60, 0~100, 0~150, 0~250, 0~500
Component Material：
Seat：PCTFE
Diaphragm：Hastelloy
Filter mesh：316L
Working Temperature：-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium)：
Internal： ≤1×10-7 mbar l/s
External：≤1×10-9 mbar l/s

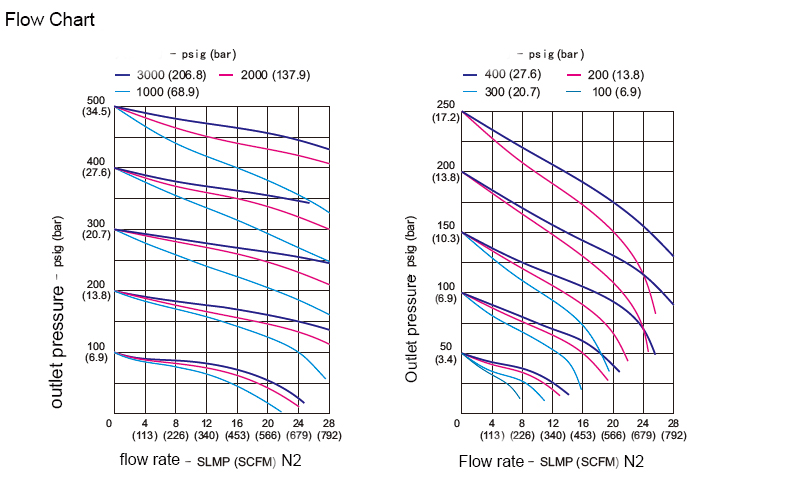

Flow Coefficient (Cv)：
3500psig Inltet：Cv=0.09
600psig Inltet：Cv=0.20
Body Thread：
Inlet port：1/4NPT (EP 1 / 4 VCR optional)
Outlet port：1/4NPT (EP 1 / 4 VCR optional)
Pressure gauge port：1/4NPT (EP 1 / 4 VCR optional)
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item | Body Material | Body hole |
Inlet pressure
|
Outlet pressure | Gauge | Inlet Size | Outlet size | Option |
| R11 | L: 316L | A | D:3000psi | F:0-500psi | G:Mpa | 00: 1/4″NPT F | 00:1/4″NPT F | P:panel mounting |
| B: brass | B | E:2200psi | G:0-250psi | P:psi/bar | 01:1/4″NP M | 01:1/4″NP M | R:with relief valve | |
| D |
F:500psi
|
I: 0-100psi | W: No | 23:CGA330 | 10:1/8″OD | N:needle valve | ||
| G | K: 0-50psi | 24:CGA350 | 11:1/4″OD | D:diaphragm valve | ||||
| J | L: 0-25psi |
27: CGA580
|
12:3/8″OD | |||||
| M | 28:CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16: 8mm OD | |||||||
| 50:G5/8″RH F |
