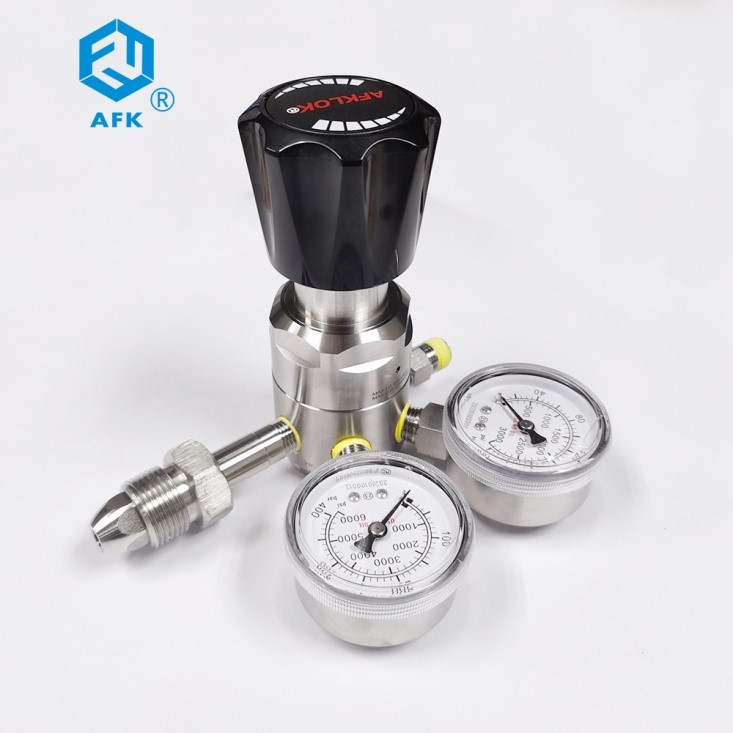

High Pressure 6000PSI CGA580 Pressure Argon Stainless Steel Regulator

Short Description:

Max inlet pressure:500,3000,4000,6000psig

Outlet pressure:0~25,0~50,0~100,0~250,0~500,0~4000psig

Proof pressure:1.5times of maximum rated pressure

Working tem:-40℉~+466℉(40℃~+230℃)

Leakage rate:2*10-8 atm cc/sec He

Cv：0.08

Send email to us

Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

R11

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.

Previous: Panel Mounting 3500psi High Pressure Single Stage Reducing Pressure Regulator ss316L

Next: High Purity 1500psi Nitrogen Stainless steel CO2 Pressure Regulator Industrial

Technical Data of pressure regulator

1	Max inlet pressure	500, 3000 psi
2	Outlet pressure	0~25, 0~50, 0~100, 0~250, 0~500 psi
3	Proof pressure	1.5 times of maximum rated pressure
4	Working temperature	-40°F-+165°F(-40°C-+74°C)
5	Leakage rate	2*10-8 atm cc/sec He
6	Cv	0.08

Main Features of 6000PSI pressure regulator

1	Single -stage reduce Structure
2	Use hard-seal between body and diaphragm
3	Body Thread : 1/4″ NPT ( F )
4	Easy to sweep inside body
5	Filter mesh inside
6	Panel mountable or wall mounted

Typical applications of Stainless Steel Regulator

1	Laboratory
2	Gas Chromatograph
3	Gas Laser
4	Gas bus
5	Oil and chemical industry
6	Tested instrumentation

Ordering Information–300 bar regulator

R11	L	B	B	D	G	00	02	P
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Guage	Inlet size	Outlet size	Mark
R11	L:316	A	D:3000 psi	F:0-500psig	G:Mpa guage	00:1/4″NPT(F)	00:1/4″NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250psig	P:Psig/Bar Guage	01:1/4″NPT(M)	01:1/4″NPT(M)	R:With relief valve
		D	F:500 psi	K:0-50pisg	W:No guage	23:CGGA330	10:1/8″ OD	N:Needle calve
		G		L:0-25psig		24:CGGA350	11:1/4″ OD	D:Diaphregm valve
		J				27:CGGA580	12:3/8″ OD
		M				28:CGGA660	15:6mm OD
						30:CGGA590	16:8mm OD
						52:G5/8″-RH(F)
						63:W21.8-14H(F)
						64:W21.8-14LH(F)

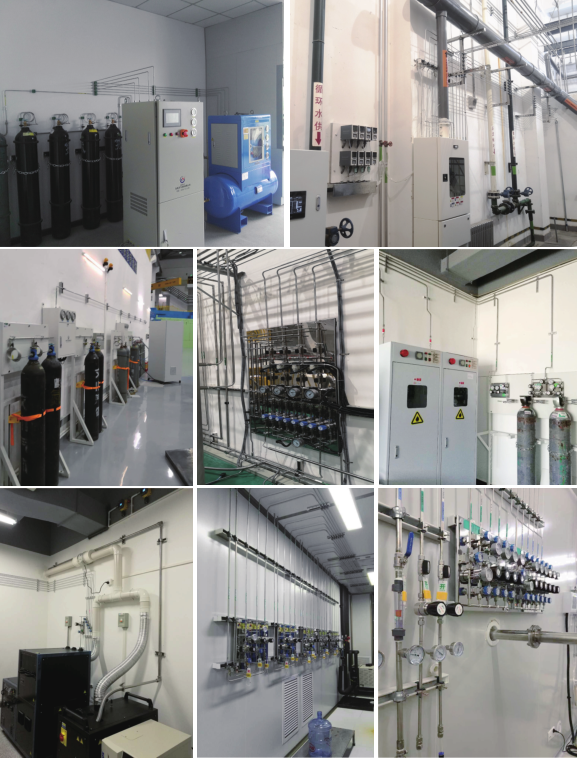

PCR laboratory high-purity gas piping is used in high-tech fields such as electronic semiconductor, petrochemical, biological medicine, standard testing, etc.

PCR laboratory gas piping system includes PCR laboratory centralized gas supply system and indoor cylinder gas supply system, which can meet your different levels of requirements for the safe use of gas. The central gas supply piping system project is mainly to provide standard gas with stable quantity and pressure for the analytical equipment selected by the test/laboratory to ensure the safety of its storage and use. To protect the analysts and testers from toxic and harmful gases in the experiments. According to the requirements of the national standard, all the gases used are stored in the gas storage room, and centralized transmission is realized to form a central gas supply system. The system adopts the pipeline gas delivery methods of one tow, one tow, multiple tow and multiple tow, which can realize segment control when one tow and switch control when multiple tow and multiple tow; and can ensure the standard gas flow, pressure stability and value transfer without change, and meet the technical requirements of analysis and testing equipment for the gas used.

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
