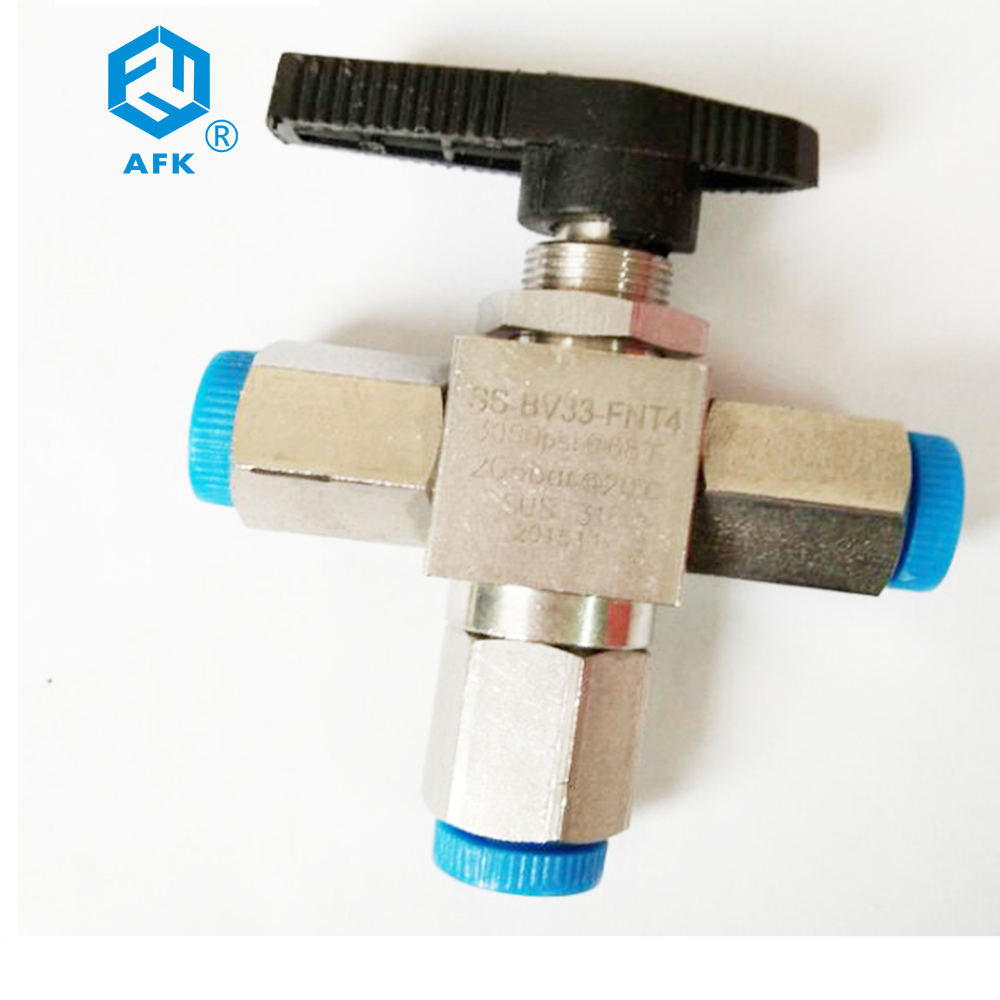

AFK Stainless Steel Conventional High Pressure Internal Thread Tee Ferrule Ball Valve 6mm / 8mm

Features of Tee Ferrule Ball Valve

Three piece small square ball valve

Body material in stainless steel SS316/316L

Max.allowed working pressure 3000psig（bar）

With Viton O-ring and PTFE packing

100% factory tested

Material of Construction Tee Ferrule Ball Valve

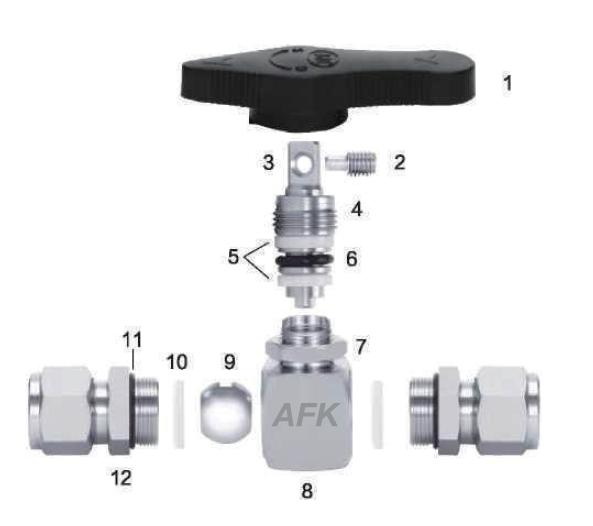

Item	Part Description	Qty.	Material
1	Handle	1	Nylon
2	Handle set screw	1	Chrome-plated steel
3	Stem	1	SS316/316L
4	Packing bolt	1	SS316/316L
5	Gland packing	2	TFM1600
6	Stem O-ring	1	Fluororubber
7	Panel nut	1	SS304
8	Body	1	SS316/316L
9	Ball	1	SS316/316L
10	Seat	2	TFM1600
11	Body O-ring	2	Fluororubber
12	End Cap	2	SS316/316L

Ordering Information of Tee Ferrule Ball Valve

type	3	BV-	S6-	02		A-	3P
C:VALVE	3:3PC	BV:2-WAY BALL VALVE	S6:SS316	02:1/8″	6:6mm	A:AFK TUBR END	3P:3000PSIG
		BV:3-WAY BALL VALVE	S6L:SS316L	04:1/4″	8:8mm	MR:MALE BSPT THREAD
				06:3/8″	10:10mm	FR:FEMALE BSPT THREAD
				08:1/2″	12:12mm	MN:MALE NPT THREAD
				012:3/4″	14:14mm	FN:FEMALE NPT THREAD
					16:16mm
					18:18mm



type		Conn./size	orifice		dimensions（mm）
		inlet/outlet	mm	In.	A	B	C	D	E	F	panel hole size	max.panel thickness
3way AFK tube end	fractional	1/8″	5.0	0.19	64.2	32.1	35.0	39.6	55	34	14.0	6.0
		1/4	5.0	0.19	68.0	34.0	35.0	41.5	55	34	14.0	6.0
		3/8″	5.0	0.19	71.8	35.9	35.0	43.4	55	34	14.0	6.0
		1/2″	10.0	0.39	83.8	41.9	42.3	53.4	75	45	15.8	6.0
		3/4″	10.0	0.39	83.8	42.9	42.3	54.4	75	45	15.8	6.0
	metric	6mm	5.0	0.19	67.6	33.8	35.0	41.3	55	34	14.0	6.0
		8mm	5.0	1.09	70.0	35.0	35.0	42.5	55	34	14.0	6.0
		10mm	5.0	0.39	79.8	39.9	42.3	51.4	75	45	15.5	6.0
		12mm	10.0	0.39	83.4	41.7	42.3	53.2	75	45	15.85	6.0
		14mm	10.0	0.39	84.8	42.4	42.3	53.9	75	45	15.8	6.0
		18mm	10.0	0.39	84.8	42.4	42.3	53.9	75	45	15.8	6.0
3way male thread	fractional	1/8″	5.0	0.19	52.4	26.2	35.0	33.7	55	34	14.0	6.0
		1/4″	5.0	0.19	58.4	29.2	35.0	36.7	55	34	14.0	6.0
		3/8″	5.0	0.19	60.4	30.2	35.0	37.7	55	34	14.0	6.0
		1/2″	10.0	0.39	74.0	37.0	42.3	48.5	75	45	15.8	6.0
3way female thread	fractional	1/8″	5.0	0.19	45.4	22.7	35.0	30.2	55	34	14.0	6.0
		1/4″	5.0	0.19	52.4	26.2	35.0	33.7	55	34	14.0	6.0
		3/8″	10.0	0.39	62.0	31.0	42.3	42.5	75	45	15.8	6.0
		1/2″	10.0	0.39	64.0	32.0	42.3	43.5	75	45	15.8	6.0
