1/8 inch to 3/4 inch Mini SS Compression Three Way Ball Valve 3000psi

Short Description:

Features:

1.Simple in structure, convenient in maintenance

2.Handle to the flow direction of medium instructions

3.A variety of handle colors to choose from

4.The handle switch positioning accuracy

5.The valve switch low operation torque

6.Manual, pneumatic or electric drive is optional

7.0Cock switch control valve, replace installation is convenient

8.Type O-ring seal design, sealed performance is good

9.Straight-through type flow, small pressure drop

10.With the downstream discharge port

Send email to us

Product Detail

Product Tags

3 Way Stainless Steel Ball Valve

1.Switch, switching, cross conversion flow path
2.Working pressure up to 3000psig (206bar)
3.Temperature range from - 53 to 148 ° C (- 65 to 300 ° f)
4.Environmental and heating process applications
5.1 / 8 to 3 / 4 in And 6 to 12mm termination

Features of 3 Way Ball Valve

1	On/off service ball valve with 2 way pattern
2	Diverter service ball valve with 3 way pattern
3	Body material in stainless steel SS316/316L
4	Max.allowed working pressure：50kg，3000psig，6000psig
5	With Fluororubber O-ring
6	100% factory tested

Product Parameter--2 Way Ball Valve

3-Piece Ball Valve - 3000Psig

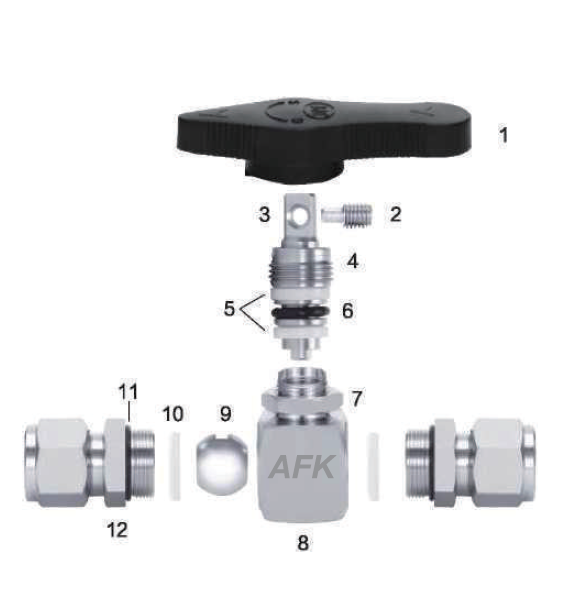

Material Structure

Item	Part Name	Quantity	Texture of Material
1	Handle	1	Nylon
2	Handle Set Screw	1	Chrome-Plated Steel
3	Stem	1	SS316/316L
4	Packing Bolt	1	SS316/316L
5	Gland Packing	2	TFM1600
6	Stem O-ring	1	Fluororubber
7	Panel Nut	1	SS304
8	Body	1	SS316/316L
9	Ball	1	SS316/316L
10	Seat	2	TFM1600
11	Body O-ring	2	Fluororubber
12	End Cap	2	SS316/316L

Ordering Information--Ball Valve Stainless Steel 316

C-	3	BV-	S6-	02		A-	3P
Classification	product name	Valve Type	Material	Size（Fractional）	Size（Metric）	Connection Type	Max.Working Pressure
C:Valve	3:3pc	BV:2-Way Ball Valve	S6：SS316	02:1/8"	6:6mm	A:AFK Tube End	3P:3000PSIG
		BV:3-Way Ball Valve	S6L：SS316L	04:1/4"	8:8mm	MR:Male BSPT Thread
				06:3/8"	10:10mm	FR:Female BSPT Thread
				08:1/2"	12:12mm	MN:Male NPT Thread
				012:3/4"	14:14mm	FN:Female NPT Thread
					16:16mm
					18:18mm

3-Piece Ball Valve - 6000Psig

Material Structure

Item	Part Name	Quantity	Texture of Material
1	Handle	1	Nylon
2	Handle Set Screw	1	Chrome-Plated Steel
3	Stem	1	SS316/316L
4	Packing Bolt	1	SS316/316L
5	Gland Packing	2	TFM1600
6	Stem O-ring	1	Fluororubber
7	Panel Nut	1	SS304
8	Body	1	SS316/316L
9	Ball	1	SS316/316L
10	Seat	2	PEEK
11	spacer bracket	2	SS316/316L
12	Body O-ring	2	Fluororubber
13	Body O-ring	2	Fluororubber
14	End Cap	2	SS316/316L

Ordering Information--316 ss Ball Valve

C-	3	BV-	S6-	02		A-	3P
Classification	product name	Valve Type	Material	Size（Fractional）	Size（Metric）	Connection Type	Max.Working Pressure
C:Valve	3:3pc	BV:2-Way Ball Valve	S6：SS316	02:1/8"	6:6mm	A:AFK Tube End	6P:6000PSIG
		BV:3-Way Ball Valve	S6L：SS316L	04:1/4"	8:8mm	MR:Male BSPT Thread
				06:3/8"	10:10mm	FR:Female BSPT Thread
				08:1/2"	12:12mm	MN:Male NPT Thread
					14:14mm	FN:Female NPT Thread

3 Way Ball Valve

Type		Conn./Size	Orifice		Dimensions (mm)
Type		Inlet/outlet	Mm	In.	A	B	C	D	E	F	Panel Hole Size	Max Panel Thickness
3 Way AFK TUBE END	Fractional	1/8"	5.0	0.19	65.1	32.1	35.0	39.6	55	34	14.0	6.0
		1/4"	5.0	0.19	67.7	34.0	35.0	41.5	55	34	14.0	6.0
		3/8"	5.0	0.19	70.3	35.9	35.0	43.4	55	34	14.0	6.0
		1/2"	10.0	0.39	87.8	41.9	42.3	53.4	75	45	15.8	6.0
		3/4"	10.0	0.39	83.8	42.9	42.3	54.4	75	45	15.8	6.0
	Metric	6mm	5.0	0.19	67.6	33.8	35.0	41.3	55	34	14.0	6.0
		8mm	5.0	0.19	70.0	35.0	35.0	42.5	55	34	14.0	6.0
		10mm	5.0	0.39	79.8	39.9	42.3	51.4	75	45	15.5	6.0
		12mm	10.0	0.39	83.4	41.7	42.3	53.2	75	45	15.8	6.0
		14mm	10.0	0.39	84.8	42.4	42.3	53.9	75	45	15.8	6.0
		18mm	10.0	0.39	84.8	42.4	42.3	53.9	75	45	15.8	6.0
3 Way MALE THREAD	Fractional	1/8"	5.0	0.19	52.4	26.2	35.0	33.7	55	34	14.0	6.0
		1/4"	5.0	0.19	58.4	29.2	35.0	36.7	55	34	14.0	6.0
		3/8"	5.0	0.19	60.4	30.2	35.0	37.7	55	34	14.0	6.0
		1/2"	10.0	0.39	74.0	37.0	42.3	48.5	75	45	15.8	6.0
3 Way MALE THREAD	Fractional	1/8"	5.0	0.19	45.4	22.7	35.0	30.2	55	34	14.0	6.0
		1/4"	5.0	0.19	52.4	26.0	35.0	33.7	55	34	14.0	6.0
		3/8"	10.0	0.39	62.0	31.0	42.3	42.5	75	45	15.8	6.0
		1/2"	10.0	0.39	64.0	32.0	42.3	43.5	75	45	15.8	6.0

All Dimensions Are In Millimeters Unless Specific.
Dimensions Shown Are For Reference Only And Subject To Change.
For Other Connections . Please Contact With Afk Sales Representative.
