1/8in 1/4in 3/8in 1/2in Industrial High Pressure Stainless Steel Gas Non Return Check Valve
Product Description of 1/8in 1/4in 3/8in 1/2in Adjustable Industrial High Pressure Stainless Steel Dual Check Valve
Characteristics of Adjustable Industrial High Pressure Stainless Steel Dual Check Valve 1/8in 1/4in 3/8in 1/2in
1.End connections avail be with AFK tube end,BSPT or NPT female & male thread for option 2.Variable fixed cracking press re springs,range form 1 to 25psi±5% 3.O-ring ensures leak proof shut off 4.Back stopped poppet minimize spring string stress

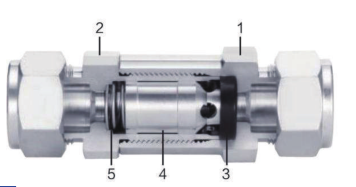

| Item | Part description | Qty. | Material |
| 1 | Inlet Body | 1 | SS316/316L |
| 2 | Outlet Body | 1 | SS316/316L |
| 3 | Seal Ring | 1 | Fluoroelastomer |
| 4 | Poppet | 1 | SS316/316L |
| 5 | Spring | 1 | SS304 |
| Nominal Cracking Pressure | Nominal Cracking Pressure |
| 1 | 401 |
| 10 | 7-15 |
| 25 | 20-30 |

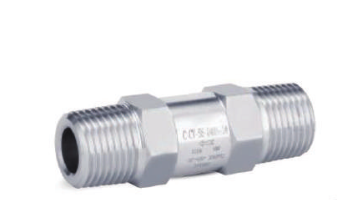

Male check valve
Tube check valve

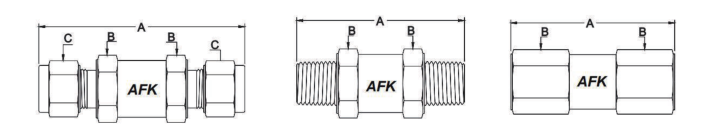

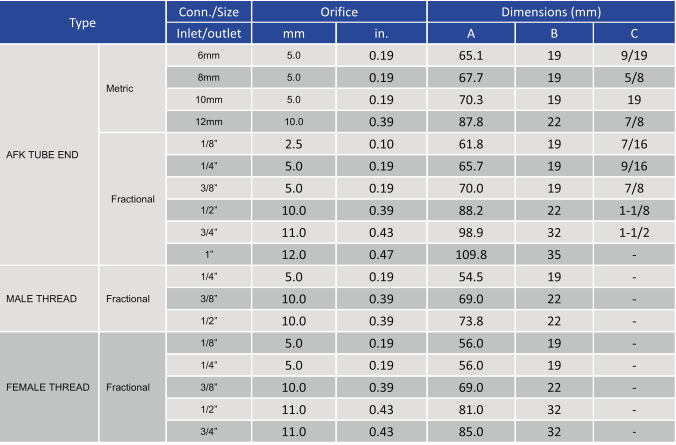

Specification of 1/8in 1/4in 3/8in 1/2in Adjustable Industrial High Pressure Stainless Steel Dual Check Valve
| Ordering Information of Adjustable Industrial High Pressure Stainless Steel Dual Check Valve 1/8in 1/4in 3/8in 1/2in | ||||||
| C- | CV- | S6- | 04 | A- | 1# | |
| Classifcation | Prouduct name | Material | Size(fractional) | Size(Metric) | Connection Type | Cracking Pressure |
| Valve | Check Valve | S6:SS316 | 02:1/8″ | 6:6mm | A:AFK tube end | 1#:1psig |
| S6:SS316L | 04:1/4: | 8:8mm | MR:male BSPT thread | 10#:10psig | ||
| 06:3/8″ | 10:10mm | FR:female BSPT thread | 25#:25psig | |||
| 8:1/2″ | 12:12mm | MN:male NPT thread | ||||
| 12:3/4″ | FN:femaleBNPT thread | |||||
| 16:1″ | ||||||

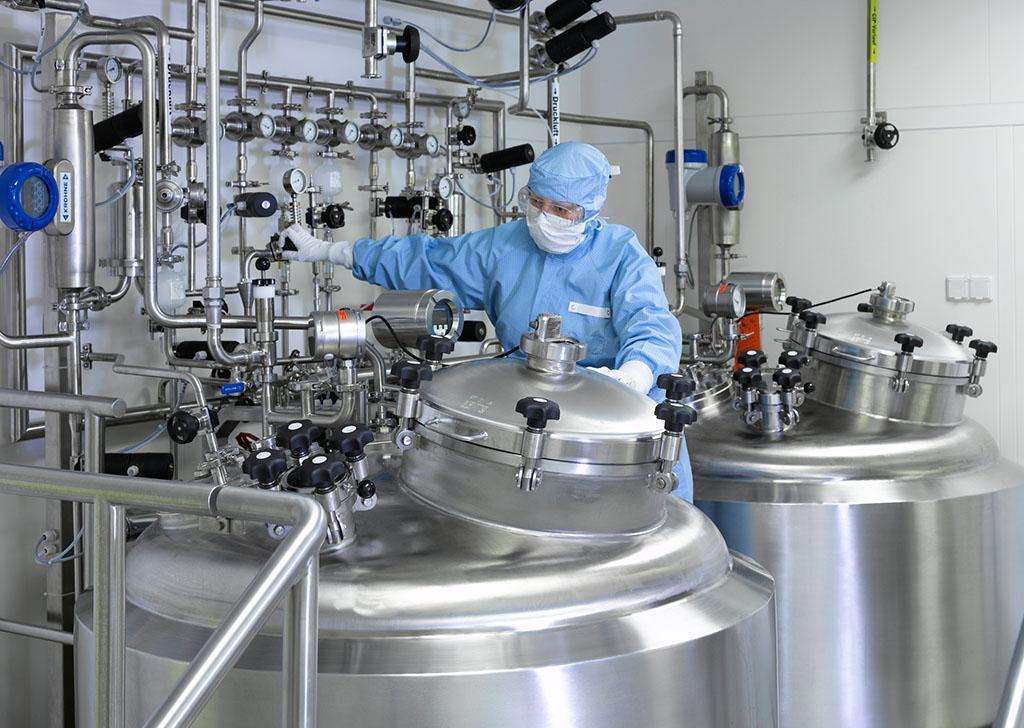

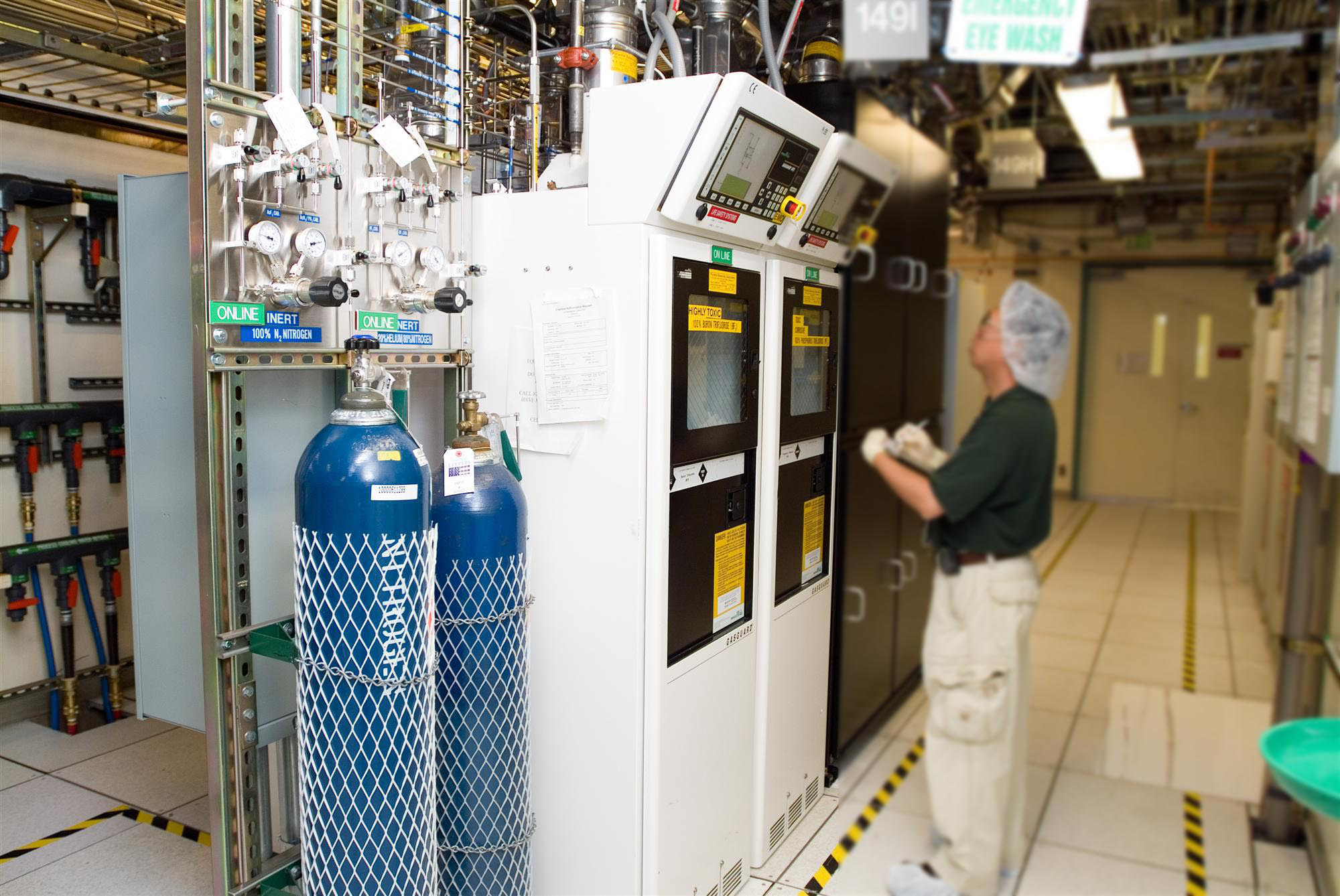

Advantages of centralised laboratory gas supply
1. Maintaining gas purity.
2. Uninterrupted gas supply: the system can be switched between cylinders in a manual manner to ensure a continuous supply of gas.
3. Low pressure warning: the alarm device can automatically activate the alarm when the gas falls below the alarm limit.
4. Stable gas pressure: The system uses a two-stage pressure reduction for the gas supply, which results in a very stable pressure.
5. High efficiency: With the gas supply control system, the gas in the cylinder can be fully utilised, reducing the residual gas volume and reducing gas costs.
6. Easy to operate: all cylinders are stored in the same place, reducing handling and installation operations, saving time and costs.
7. No gas cylinders in the laboratory: improves safety, increases security and saves laboratory operating space.
 |
 |
 |
 |
