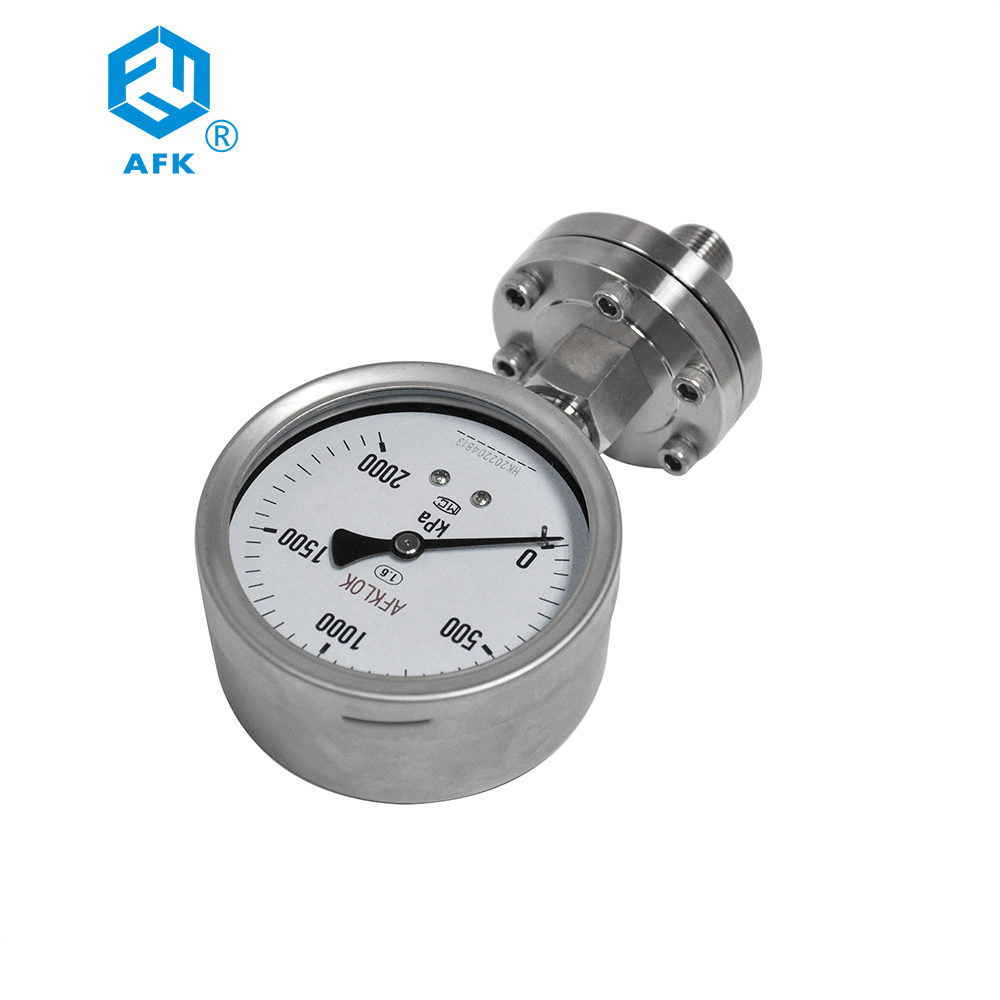

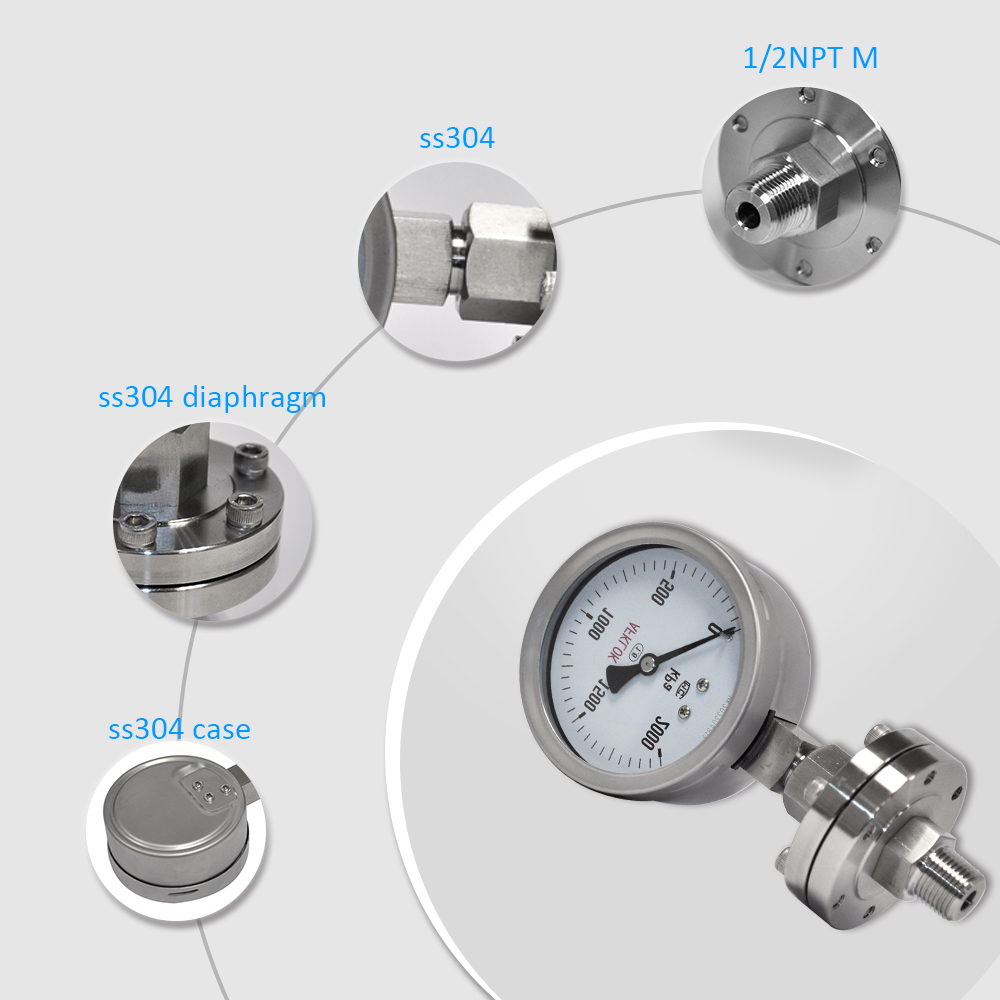

AFK Stainless Steel 316 Threaded Diaphragm Pressure Gauge 2000KPa
Product Description
YTP series diaphragm pressure gauge is composed of a general pressure gauge of different types and an isolator composed of connectors with specific requirements. Through this connection, the general Bourdon tube pressure gauge increases the performance of measuring the pressure of medium with strong corrosion, high temperature, high viscosity or containing solid plankton and easy to solidify. The gate stone pressure gauge is widely used to measure the pressure of fluid medium in the production process of petrochemical, alkali making, chemical fiber, dyeing, chemical, pharmaceutical, steel, food and other industries. The YTP series diaphragm pressure gauge produced by our company is an updated product continuously developed and manufactured on the basis of introducing Japanese manufacturing line and production technology. Its manufacturing process is more sophisticated, its technical performance is more reliable and its use function is more extensive.
Specification
|
Main Technical Indicators
|
||
|
1
|
Case size
|
100mm，150mm
|
|
2
|
accuracy
|
±1.5%
|
|
3
|
Case Material
|
Stainless steel
|
|
4
|
Range
|
pressure 0~0.1Mpa-60Mpa
vacuum-0.1~0Mpa
|
|
5
|
Spring tube material
|
SS316
|
|
6
|
Movement material
|
Stainless steel
|
|
7
|
Diaphragm material
|
316SS,HC,Ta,Monel PTFE Coating
|
|
8
|
Threaded connection size
|
M20*1.5 or 1/2NPT(other on request)
|
|
9
|
Flange connection size
|
ANSI,JIS,DIN,HG20592-97
|
|
10
|
Ambient temperature
|
-40~+70℃
|
|
11
|
Degree of protection
|
IP55,IP65
|
|
12
|
Filling working fluid
|
Silicone oil (optional glycerin or fluorine oil)
|
|
item
|
value
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
AFK
|
|
Model Number
|
YTP-100
|
|
Material
|
Stainless Steel
|
|
Product Name
|
threaded diaphragm pressure gauge
|
|
Case size
|
100mm,150mm
|
|
Connection
|
Radial connection
|
|
MOQ
|
5pcs
|
|
Ambient temperature
|
-40~+70℃
|
|
Size
|
M20*1.5 or 1/2NPT
|
