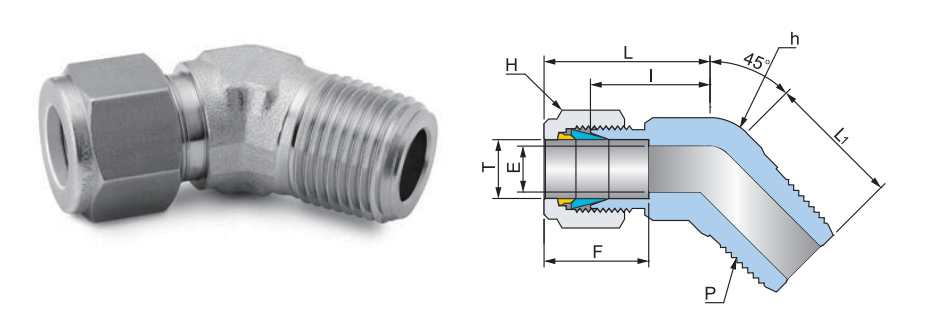

45° Male Elbow NPT Male Thread Stainless Steel 316 L 1/4 Male NPT to 1/4″ OD Tubing 3000psi
Features FITTINGS
■ All fittings have a high-quality appearance.
■ Every fitting is marked with manufacturer’s name for easy source tracing.
■ Male threads are capped for protection. Straight fittings are manufactured from quality bar stock for strength.
Advantages of 45° tube to external thread elbow
- Easy installation: The 45° tube to external thread elbow is easy to install, requiring only a wrench or other simple tools to make the connection.
- Leak-tight performance: The ferrule compression fitting provides a leak-tight seal between the tubing and the elbow, ensuring that there are no leaks in the system.
- Corrosion resistance: These fittings are typically made of materials such as stainless steel or brass, which provide excellent corrosion resistance and durability.
- Pressure and temperature ratings: The pressure rating and temperature rating of the fitting will depend on the specific material and size, but they can typically handle high pressures and temperatures.
- Versatility: This fitting is versatile and can be used in a variety of applications, including in the chemical, pharmaceutical, and food and beverage industries.
- 45-degree angled connection: The 45-degree angle of the fitting allows for easier routing of tubing in confined spaces or around obstructions.
- Compatibility with external threads: The external thread connection on the elbow allows for easy connection to other components in the system, such as valves, pumps, or pressure gauges.
Overall, the 45° tube to external thread elbow is a reliable and easy-to-use fitting that provides a secure, leak-tightconnection between tubing and an external threaded connection at a 45-degree angle. Its ease of installation, leak-tight performance, corrosion resistance, pressure and temperature ratings, versatility, and angled connection make it a popular choice for fluid handling applications.
45° ferrule to male elbow for which gases
Air: 45° ferrule to male elbow fittings can be used to connect tubing for compressed air systems, providing a secure and leak-tight connection.
Nitrogen: These fittings are often used in nitrogen gas delivery systems, providing a reliable connection for transferring nitrogen gas.
Oxygen，Helium，Hydrogen，Argon，Carbon dioxide
This AFKLOK® 45° NPT Elbow connects a 1/4″ OD Tube to a 1/4 male NPT fitting and is made of 316 stainless steel. Includes nuts and ferrule set. Nut threads are Stainless Steel 316L.
These industry standard AFKLOK® compression-type fittings and components are precision manufactured and offer a gas-tight, metal-on-metal seal. They are available in standard fractional tubing sizes for making up stainless steel tubing. Polished surface finishes and high purity materials virtually eliminate these fittings as a source of system contamination.
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
