Stainless Steel 3 Way Ball Valve
Three piece ball valve
3PC Ball Valve-3000psig
Characteristics of Tee Ferrule Ball Valve
Black handle with arrow indicates flow direction
End connections available with AFK tube end,BSPT or NPT male thread
Product Parameter
Features of Tee Ferrule Ball Valve
Three piece small square ball valve
Body material in stainless steel SS316/316L
Max.allowed working pressure 3000psig（bar）
With Viton O-ring and PTFE packing
100% factory tested

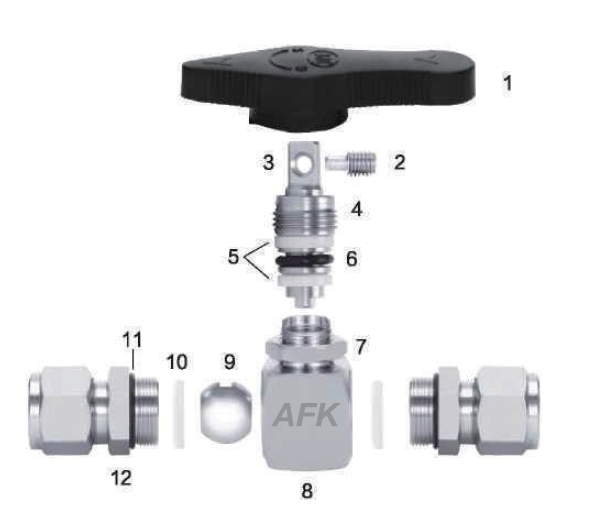

Material of Construction Tee Ferrule Ball Valve
| Item | Part Description | Qty. | Material |
| 1 | Handle | 1 | Nylon |
| 2 | Handle set screw | 1 | Chrome-plated steel |
| 3 | Stem | 1 | SS316/316L |
| 4 | Packing bolt | 1 | SS316/316L |
| 5 | Gland packing | 2 | TFM1600 |
| 6 | Stem O-ring | 1 | Fluororubber |
| 7 | Panel nut | 1 | SS304 |
| 8 | Body | 1 | SS316/316L |
| 9 | Ball | 1 | SS316/316L |
| 10 | Seat | 2 | TFM1600 |
| 11 | Body O-ring | 2 | Fluororubber |
| 12 | End Cap | 2 | SS316/316L |
Ordering Information of Tee Ferrule Ball Valve
| type | 3 | BV- | S6- | 02 | A- | 3P | |
| C:VALVE | 3:3PC | BV:2-WAY BALL VALVE | S6:SS316 | 02:1/8″ | 6:6mm | A:AFK TUBR END | 3P:3000PSIG |
| BV:3-WAY BALL VALVE | S6L:SS316L | 04:1/4″ | 8:8mm | MR:MALE BSPT THREAD | |||
| 06:3/8″ | 10:10mm | FR:FEMALE BSPT THREAD | |||||
| 08:1/2″ | 12:12mm | MN:MALE NPT THREAD | |||||
| 012:3/4″ | 14:14mm | FN:FEMALE NPT THREAD | |||||
| 16:16mm | |||||||
| 18:18mm | |||||||
| type | Conn./size | orifice | dimensions（mm） | |||||||||
| inlet/outlet | mm | In. | A | B | C | D | E | F | panel hole size | max.panel thickness | ||
| 3way AFK tube end | fractional | 1/8″ | 5.0 | 0.19 | 64.2 | 32.1 | 35.0 | 39.6 | 55 | 34 | 14.0 | 6.0 |
| 1/4 | 5.0 | 0.19 | 68.0 | 34.0 | 35.0 | 41.5 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8″ | 5.0 | 0.19 | 71.8 | 35.9 | 35.0 | 43.4 | 55 | 34 | 14.0 | 6.0 | ||
| 1/2″ | 10.0 | 0.39 | 83.8 | 41.9 | 42.3 | 53.4 | 75 | 45 | 15.8 | 6.0 | ||
| 3/4″ | 10.0 | 0.39 | 83.8 | 42.9 | 42.3 | 54.4 | 75 | 45 | 15.8 | 6.0 | ||
| metric | 6mm | 5.0 | 0.19 | 67.6 | 33.8 | 35.0 | 41.3 | 55 | 34 | 14.0 | 6.0 | |
| 8mm | 5.0 | 1.09 | 70.0 | 35.0 | 35.0 | 42.5 | 55 | 34 | 14.0 | 6.0 | ||
| 10mm | 5.0 | 0.39 | 79.8 | 39.9 | 42.3 | 51.4 | 75 | 45 | 15.5 | 6.0 | ||
| 12mm | 10.0 | 0.39 | 83.4 | 41.7 | 42.3 | 53.2 | 75 | 45 | 15.85 | 6.0 | ||
| 14mm | 10.0 | 0.39 | 84.8 | 42.4 | 42.3 | 53.9 | 75 | 45 | 15.8 | 6.0 | ||
| 18mm | 10.0 | 0.39 | 84.8 | 42.4 | 42.3 | 53.9 | 75 | 45 | 15.8 | 6.0 | ||
| 3way male thread | fractional | 1/8″ | 5.0 | 0.19 | 52.4 | 26.2 | 35.0 | 33.7 | 55 | 34 | 14.0 | 6.0 |
| 1/4″ | 5.0 | 0.19 | 58.4 | 29.2 | 35.0 | 36.7 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8″ | 5.0 | 0.19 | 60.4 | 30.2 | 35.0 | 37.7 | 55 | 34 | 14.0 | 6.0 | ||
| 1/2″ | 10.0 | 0.39 | 74.0 | 37.0 | 42.3 | 48.5 | 75 | 45 | 15.8 | 6.0 | ||
| 3way female thread | fractional | 1/8″ | 5.0 | 0.19 | 45.4 | 22.7 | 35.0 | 30.2 | 55 | 34 | 14.0 | 6.0 |
| 1/4″ | 5.0 | 0.19 | 52.4 | 26.2 | 35.0 | 33.7 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8″ | 10.0 | 0.39 | 62.0 | 31.0 | 42.3 | 42.5 | 75 | 45 | 15.8 | 6.0 | ||
| 1/2″ | 10.0 | 0.39 | 64.0 | 32.0 | 42.3 | 43.5 | 75 | 45 | 15.8 | 6.0 | ||
Product detail pictures:
Related Product Guide:
