0-1mpa Air Pressure Regulator with Gauge for Propane Argon Acetylene Gas
AFKLOK Air Pressure Regulating Filter

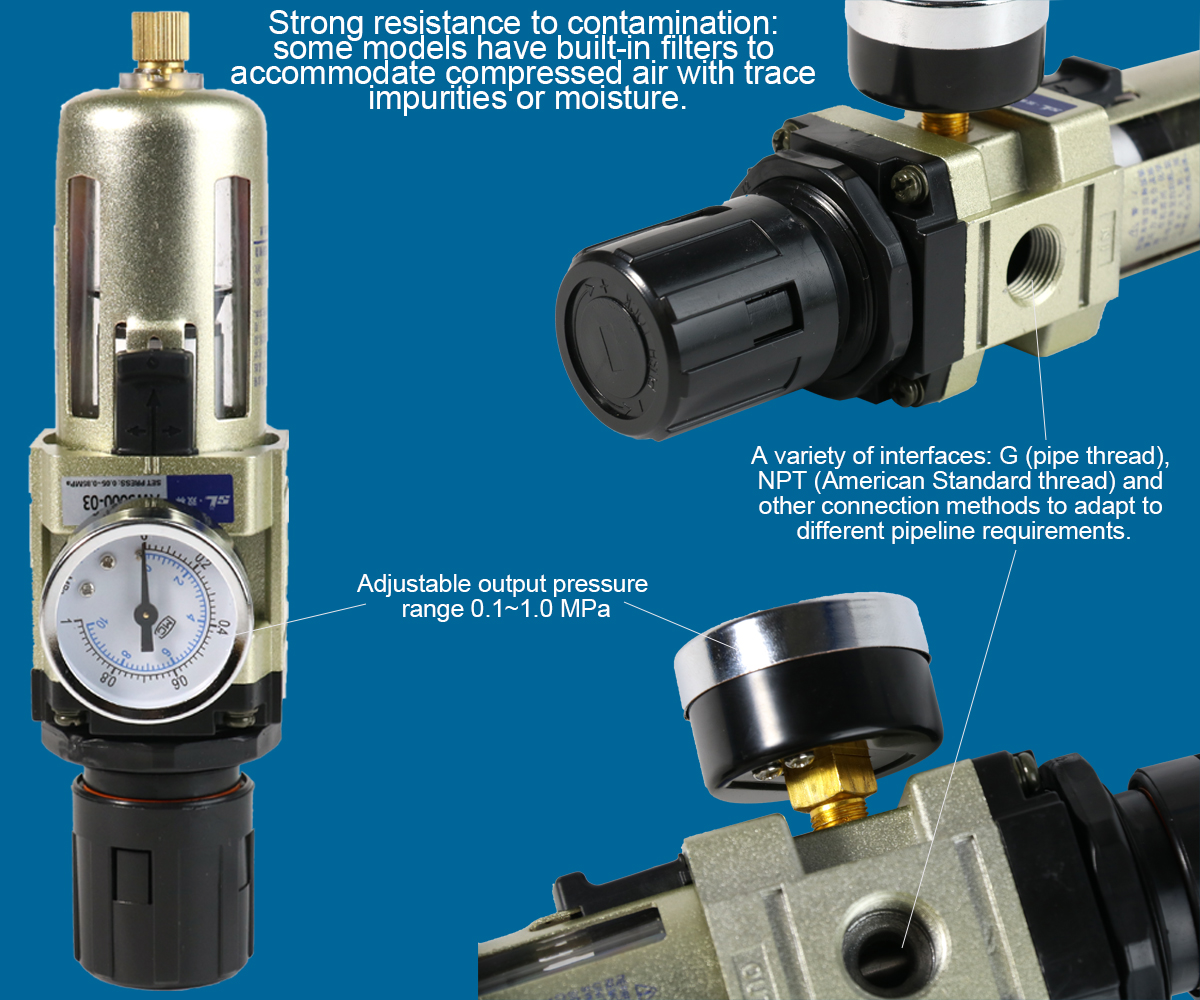

Air pressure regulator filter is a key component in pneumatic system, which is used to filter impurities in compressed air and precisely regulate the output pressure to ensure the stable operation of pneumatic equipment. It usually consists of a filter, pressure regulator (and sometimes lubricator), and is widely used in industrial automation, machinery manufacturing, packaging equipment, automotive assembly and other fields.
|
Air Pressure Regulating Filter Parameters
|
|
|
Working pressure range
|
0.1~1.0 MPa
|
|
Filtration accuracy
|
5 μm / 25 μm / 40 μm (optional)
|
|
Flow rate range
|
500~3000 L/min
|
|
Interface size
|
G1/8‘ / G1/4’ / G3/8‘ / G1/2’ (standard thread)
|
|
Adjustment mode
|
manual knob adjustment / automatic pressure regulator adjustment
|
|
Drainage method
|
manual drainage / automatic drainage (optional)
|
Environmental Adaptability
Working temperature: -5°C ~ +60°C (special models can withstand high temperature) Medium temperature: 0°C ~ +50°C Protection class: IP54 (dust and splash-proof) Applicable media: compressed air, inert gas (not applicable to corrosive gases)
Filtration Performance
Filtration efficiency: ≥99.9% (5 μm class) Water storage cup capacity: 30~100 mL (depending on the model) Pressure drop: ≤0.02 MPa (at rated flow rate)
