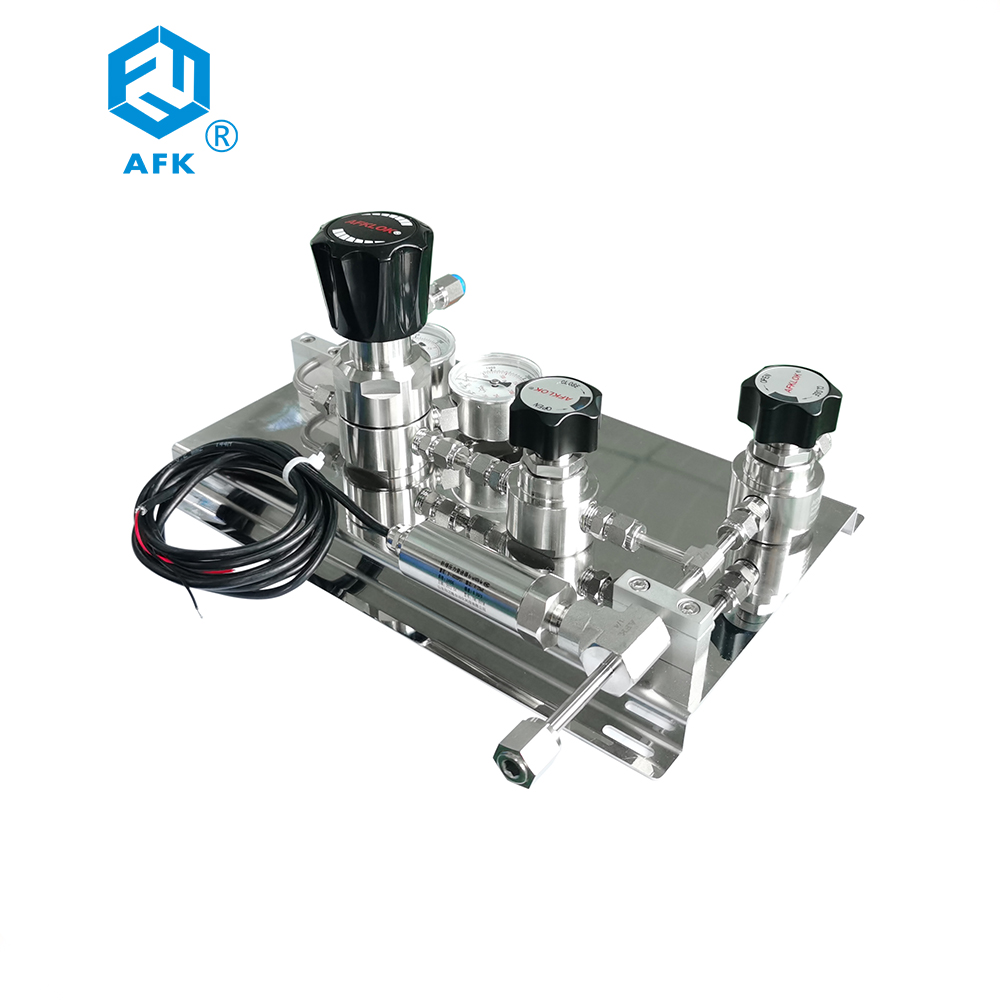

Stainless Steel 316 Single Cylinder Gas Panel Manifold

Short Description:

Feature:

Pressure Regulator for special gas

Equipped relief pressure valve

Pressure regulator and pipe through the pressure test and leakage test

2 stainless steel gauges,reading clearly

The knob of diaphragm valves “on/off” logo

Send email to us

Product Detail

Video

Product Parameters

Ordering Information

Application

Product Tags

WL100 Series Single Side Gas Supply High Pressure Regulator Device

It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.

Previous: High Pressure 2 Way Gas Stainless Steel Mini Ball Valve

Next: WL200 200bar Semi-automatic Changeover Gas Manifold

Materials of Construction

1	Body	stainless steel
2	Seat	PU, PTFE, PCTFE
3	Inlet Connection	1/4″tube fitting, 1/4″FSR, 1/2″FSR
4	Outlet Connection	1/4″ tube fitting , 1/4″FSR
5	Body of Diaphragm Valve	stainless steel

Speciﬁcations

1	Max. Inlet Pressure	3000, 2200 psi
2	Max. Outlet Pressure	25, 50, 100, 150, 250 psi
3	Working Temperature	-40°C ~ 74°C (-40°F ~ 165°F)

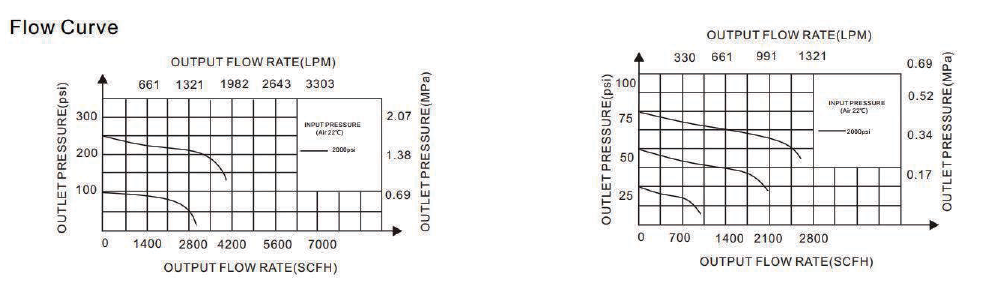

4	Flow Rate	see flow Curve Chart
5	Pressure Regulator Leakage Rate	2 x 10-8 atm.cc/sec He
6	Cv	0.14

Features of Gas Supply High Pressure Regulator Device

1	Pressure regulator for special gas
2	Equipped relief pressure valve
3	Pressure regulator and pipe through the pressure test and leakage test
4	2″ stainless steel pressure gauge，reading clearly
5	The knob of diaphragm valves with on/off logo

Ordering Information

WL1	1	1	1	S	H	1	1	-N2
Series	Function Options	Outlet Connection	Inlet Connection	Body Material	Input Pressure	Output Pressure	Gauge	Gas Options
WL1 Series single side gas supply high pressure regulator system	1.with emptying，purging distribution function	1.1/4″NPT(F)	1.1/4″Welding	S:stainless steel	H:3000psi	1:25psi	1.MPa	blank：none
	2.without emptying，purging distribution function	2.1/4″tube fitting	2.1/4″NPT(M)	C：nickel plated brass	M:2200psi	2:50psi	2.Bar/psi	N2：nitrogen
	3.emptying，purging distribution+pressure sensor	3.3/8″NPT(F)	3.3/8″Welding		L：1000psi	3:100psi	3.psi/KPa	O2：oxygen
	4.with pressure sensor	4.3/8″tube fitting	4.3/8″NPT(M)		O：other	4:150psi	4.other	H2：hydrogen
	5.Others	5.1/2″NPT(F)	5.1/2″Welding			5::250psi		C2H2:acetylene
		6.1/2″tube fitting	6.1/2″NPT(M)			6:other		CH4:methane
		7.Other	7.1/4″tube fitting					Ar:argon
			8.3/8″tube fitting					He:helium
			9.1/2″tube fitting					Air：air
			10.Other
