SHENZHEN, China, 2026 — In advanced semiconductor fabrication, photovoltaic cell manufacturing, and precision nanomaterial synthesis, the uninterrupted, ultra-clean delivery of specialty process gases is paramount to operational yield and plant safety. Transporting hazardous, toxic, pyrophoric, and corrosive process gases from centralized bulk sources to decentralized manufacturing cleanrooms necessitates robust, multi-tier pressure regulation and isolation. Serving as the primary secondary distribution node between gas sources and process tools, the Valve Manifold Box (VMB) stands as the indispensable distribution hub of modern ultra-high-purity (UHP) gas networks.

Understanding the VMB: Architectural Mandate & Five Core Operational Functions

A Valve Manifold Box (VMB) is an engineered secondary distribution system installed in proximity to cleanroom manufacturing tools. Designed around four foundational engineering tenets — Distribution, Regulation, Isolation, and Safety — a VMB branches a single centralized high-purity supply line into multiple independently controlled feeds. This architecture satisfies five fundamental operational functions across modern fabs:

• • 1. Multi-Branch Gas Distribution. The VMB splits a single upstream gas line into multiple independent downstream delivery channels. This allows a solitary Gas Cabinet (GC) or Bulk Special Gas System (BSGS) to feed multiple production chambers simultaneously without requiring dedicated source supply runs for each machine.
• • 2. Independent Pressure Regulation. Different process tools operating along the same chemical supply header frequently demand distinct operating pressures. Each VMB branch features dedicated point-of-use pressure regulators and gauges, enabling technicians to tailor pressure delivery precisely to specific tool specifications.
• • 3. Isolated Branch Maintenance. Each distribution line incorporates positive-isolation ultra-high-purity valves. Routine maintenance, filter changes, or calibration on one tool can be executed without interrupting continuous gas supply to adjacent operational tools, effectively eliminating facility-wide downtime.
• • 4. Automated Inert Purging & Evacuation. Before disconnecting or servicing any gas branch, the VMB provides integrated inert gas (high-purity nitrogen) purge and vacuum evacuation cycles. This process purges residual toxic, pyrophoric, or corrosive gases, safeguarding cleanroom technicians from hazardous exposure.
• • 5. Continuous Condition Monitoring & Safety Interlocks. Real-time pressure transducers, pneumatic valves, and integrated exhaust monitoring continuously verify system parameters. In the event of over-pressure, pressure loss, or exhaust failure, the VMB automatically commands emergency shut-off valves to isolate the compromised line.

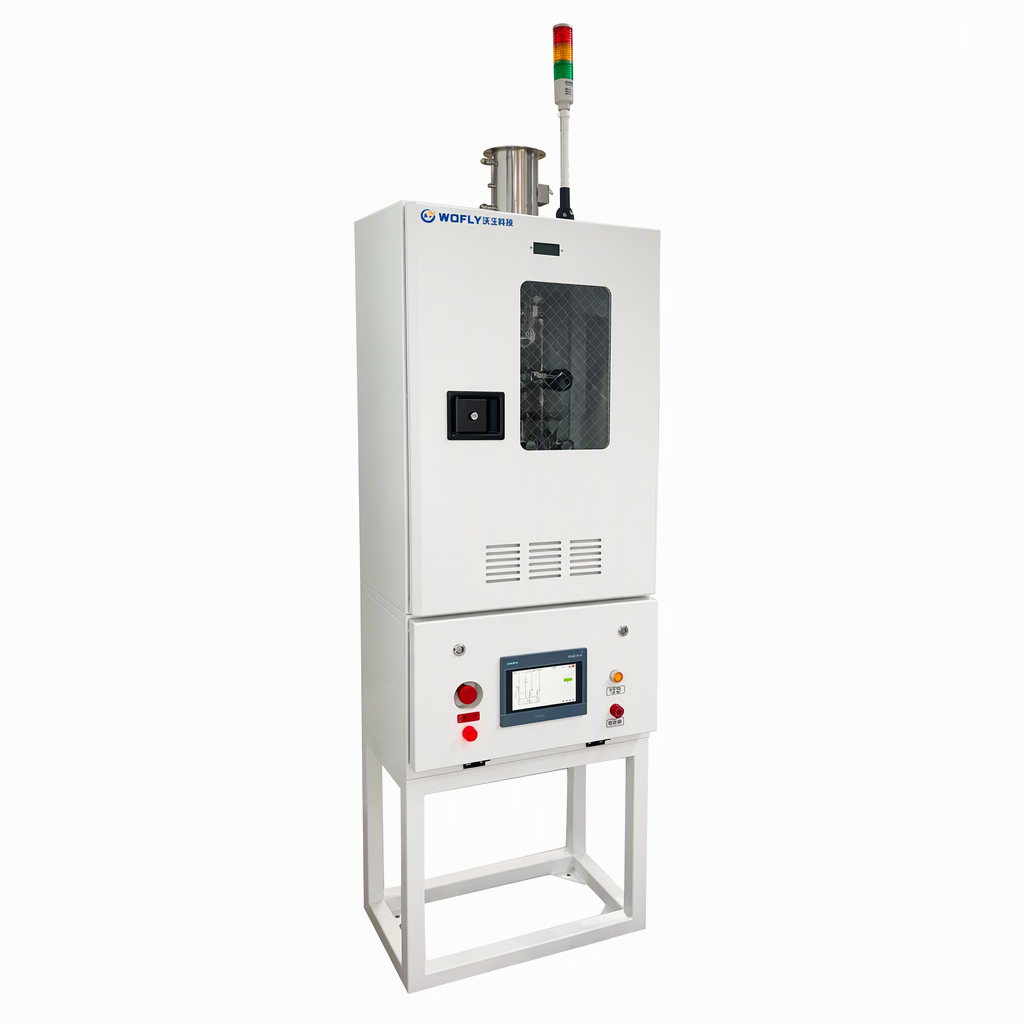

Figure 1. Shenzhen Wofly semi-automatic Valve Manifold Box (VMB): negative-pressure enclosure, 3-color stack alarm, and integrated PLC / HMI touchscreen control interface.

Protecting Gas Purity & Enhancing System Availability Across Cleanrooms

A common vulnerability in high-purity fluid engineering is secondary contamination introduced between centralized bulk sources and final wafer processing. The VMB represents the definitive safeguard of gas purity before chemical introduction into manufacturing chambers.

Internally, Wofly’s VMB systems utilize orbital-welded SUS316L VIM/VAR electro-polished (EP) stainless steel tubing with internal surface finishes exceeding Ra < 0.13 μm (5 μin). By eliminating microscopic surface crevices, micro-particulate shedding and atmospheric moisture retention are completely suppressed. Zero-dead-leg valve configurations prevent process gas stagnation, ensuring uncompromised gas purity at the sub-ppb level.

Furthermore, modern semiconductor manufacturing demands extreme dosing precision. High-specification VMB units incorporate multi-channel mass flow controller (MFC) matrices alongside proprietary AFKLOK ultra-high-purity pneumatic diaphragm valves. This modular integration provides rapid response times and high repeatability across volatile carrier and reaction gas streams.

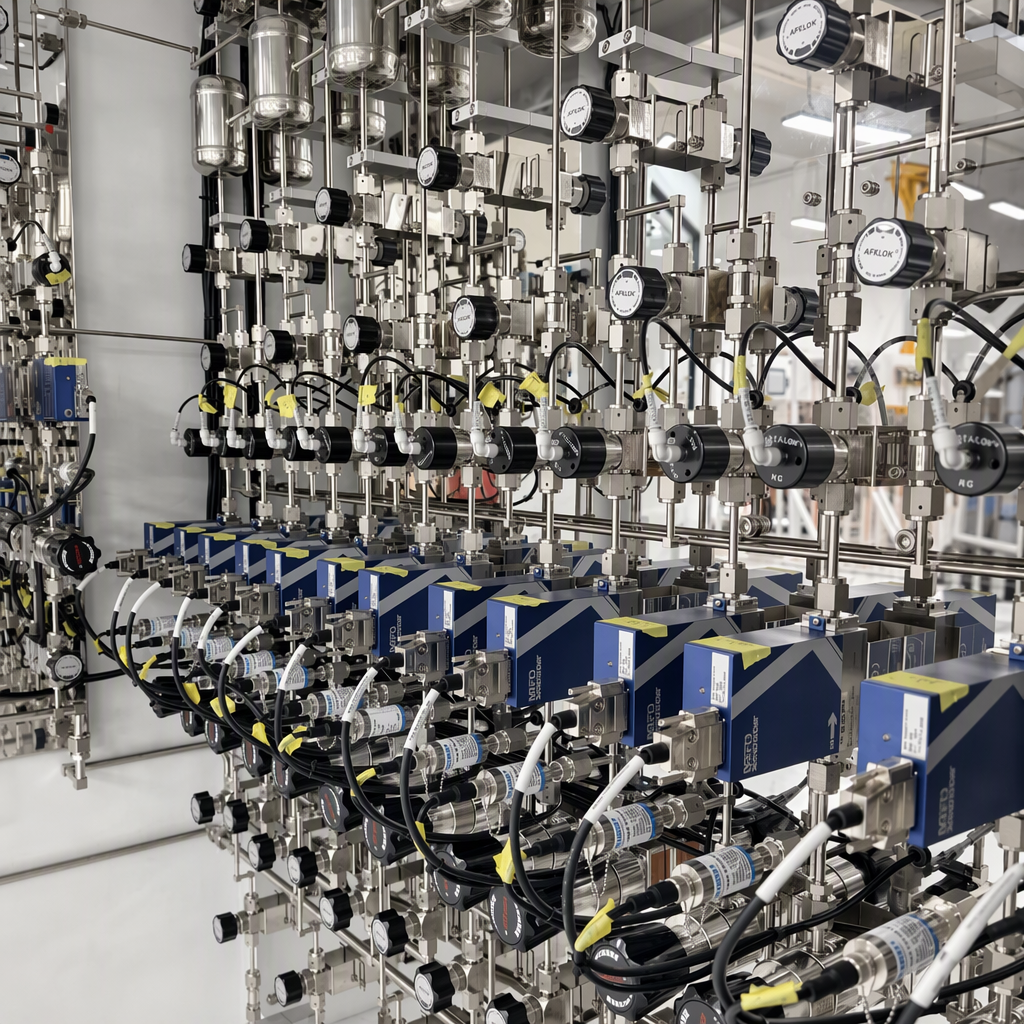

Figure 2. Ultra-high-purity internal gas manifold matrix: dense assembly of AFKLOK pneumatic diaphragm valves, mass flow controllers (MFC), and electro-polished 316L stainless steel tubing.

System-Level Synergy: Bridging Source Gas Cabinets to Cleanroom Production Tools

In a comprehensive fab infrastructure, a VMB does not operate in isolation — it serves as the crucial link connecting centralized primary gas sources to manufacturing tool hook-ups. In high-density industrial gas yards and auxiliary cleanroom corridors, Gas Cabinets (GC) and VMB units are strategically deployed in synchronized configurations.

By stepping down delivery pressure and distributing process streams near point-of-use cleanroom boundaries, the VMB substantially shortens terminal line lengths. This proximity minimizes upstream pressure drops, reduces the volume of hazardous gas held within distribution lines, and mitigates cleanroom contamination risks.

Critically, locating control interfaces directly adjacent to manufacturing bays confines potential hazard envelopes. In an unexpected line excursion or seismic event, automated pneumatic valves isolate individual branches locally within milliseconds. This localized containment prevents hazardous releases from propagating back to primary gas yards or forcing facility-wide plant evacuations.

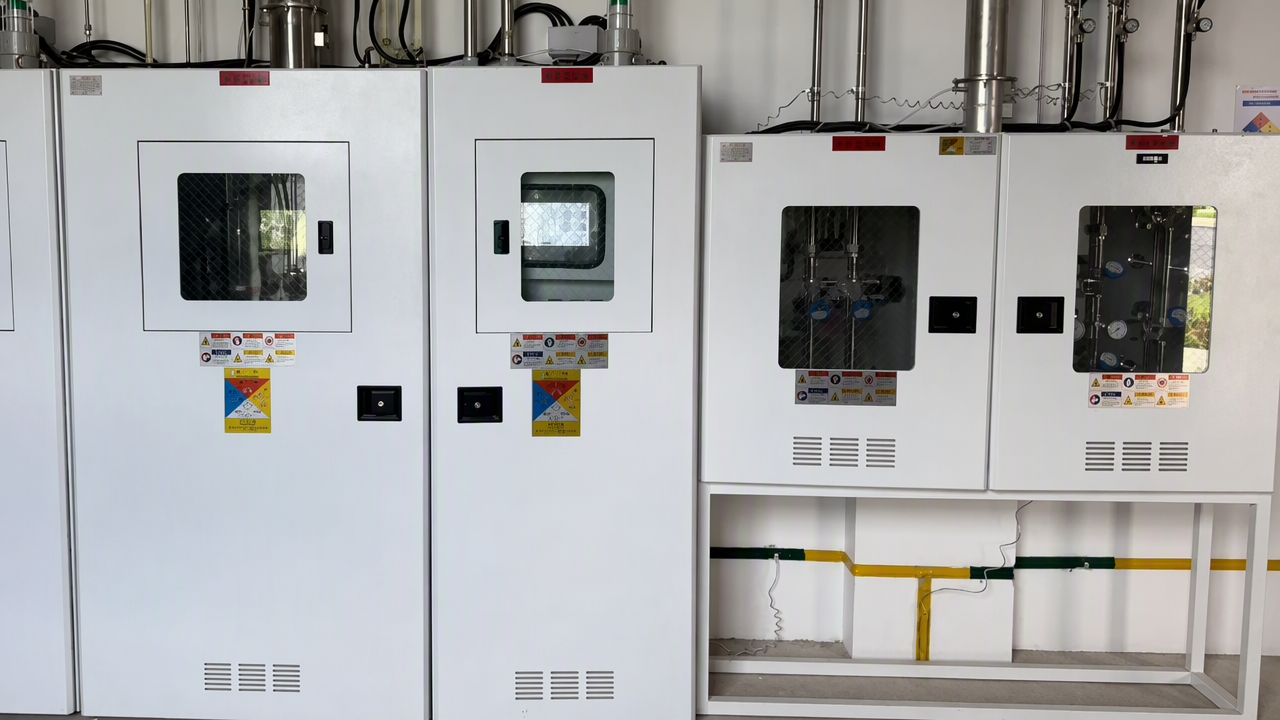

Figure 3. Integrated gas infrastructure in an industrial facility: primary Gas Cabinets (GC, left) operating in seamless concert with secondary Valve Manifold Boxes (VMB, right).

Shenzhen Wofly Technology: 15 Years of EPC & High-Purity Manufacturing Leadership

Delivering robust UHP gas distribution equipment requires proven manufacturing precision combined with licensed turnkey engineering execution. As a certified National High-Tech Enterprise founded in 2011, Shenzhen Wofly Technology Co., Ltd. delivers comprehensive end-to-end fluid solutions across the global high-tech supply chain:

• • 15+ Years of Dedicated Gas Engineering. Over a decade and a half of specialized engineering experience supported by established operating subsidiaries in Hunan, Wuhan, Shanghai, and Hong Kong, executing high-complexity gas installations internationally.
• • End-to-End Turnkey EPC Capabilities. Wofly provides single-point accountability spanning conceptual design, 3D BIM spatial routing, cleanroom pre-fabrication, automated orbital welding, on-site commissioning, and analytical helium mass spectrometer leak testing.
• • Comprehensive National Licensing & Accreditations. Holding official Class GC2 Pressure Piping Design and Installation Licenses, Mechanical & Electrical Installation Contracting Qualifications, and National Safety Production Licenses, Wofly is fully certified to construct high-pressure hazardous fluid networks.
• • Proprietary Valve & Component Manufacturing. Operating two advanced manufacturing facilities encompassing over 8,000 square meters in Shenzhen and Hunan, Wofly engineers its proprietary AFKLOK product line — producing UHP diaphragm valves, regulators, and fittings compliant with ISO9001, CE, RoHS, and SIME 2 standards.
• • Global Benchmark Client Portfolio. Wofly process equipment and turnkey piping installations support premier industry leaders including Huawei, BYD, Hikvision, Guangdong Tianyu Semiconductor, and Han’s Laser, with products exported to more than 26 countries.

Partner with Wofly for Safe, Certified Gas Distribution Solutions

From advanced semiconductor wafer fabs and microelectronics cleanrooms to photovoltaic gigafactories and research laboratories, Shenzhen Wofly Technology Co., Ltd. delivers certified, high-reliability Valve Manifold Boxes, Gas Cabinets, and turnkey distribution networks engineered to protect your facility yield.

Contact our technical engineering team today to review your upcoming specialty gas infrastructure requirements or request custom VMB equipment specifications.
