Low Pressure 500psi Secondary Terminal Pressure Reguator gas panel

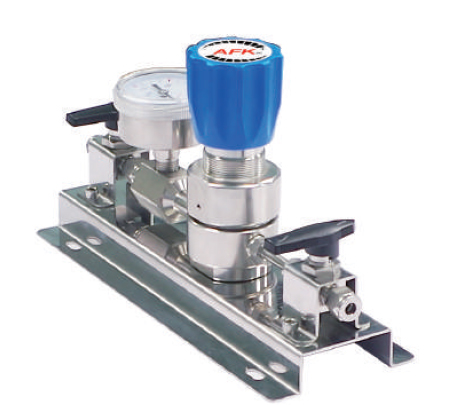

WL400 Pressure Reducing
Main Features
| 1 | Equipped R11 pressure regulator and high pressure ball valve. |
| 2 | Pipe through the pressure test and leakage test. |
| 3 | Wall installation,easy to use and safe. |
| 4 | 2″ stainless steel pressure gauge, reading clearly |
Product Description
| 1 | Maximum Inlet Pressure | 500,3000psig |
| 2 | Outlet Pressure | 0~25, 0~50, 0~50,0~250,0~500psig |
| 3 | Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| 4 | Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he |
| 5 | Cv value | 0.14 |
Selection table
|
WL4
|
2
|
1
|
5
|
H
|
S
|
1
|
N2
|
|
Series
|
Inlet connection
|
Outlet connection
|
Body
|
Inlet pressure
|
outlet pressure
|
Gauge
|
N2
|
|
WL4
|
1:6mm barb fitting
|
1: 1/4″ welding
|
s: ss316
|
H:1000PSI
|
1:25PSI
|
1:Mpa
|
O2
|
|
|
2:1/4″O.D.
|
2: 3/8″welding
|
C:nickel plated brass
|
M:500psi
|
2:50PSI
|
2:bar/PSI
|
H2
|
|
|
3:8mm barb fitting
|
5.1/2″ welding
|
|
L:300PSI
|
3:100PSI
|
3:PSI/kpa
|
C2H2
|
|
|
4:3/8″O.D.
|
7: 1/4″O.D.
|
|
|
4:150PSI
|
|
CH4
|
|
|
5:10mm barb fitting
|
8:3/8″O.D.
|
|
|
5:250PSI
|
|
AR
|
|
|
6:1/2″O.D.
|
9: 1/2″O.D.
|
|
|
|
|
HE
|
Fume hoods are ventilation equipment for the safe handling of harmful, toxic gases or vapors and are used to capture, seal and transfer contaminants as well as harmful chemical gases to prevent escape into the laboratory so that inhalation exposure is minimized by inhaling contaminants from the work area and keeping them away from the operator. Airflow within the fume hood is achieved by sucking air from the laboratory into the fume hood through an exhaust fan, which dilutes the contaminated gases within the fume hood and allows for low concentration dispersion after being exhausted to the outdoors through the exhaust system.
